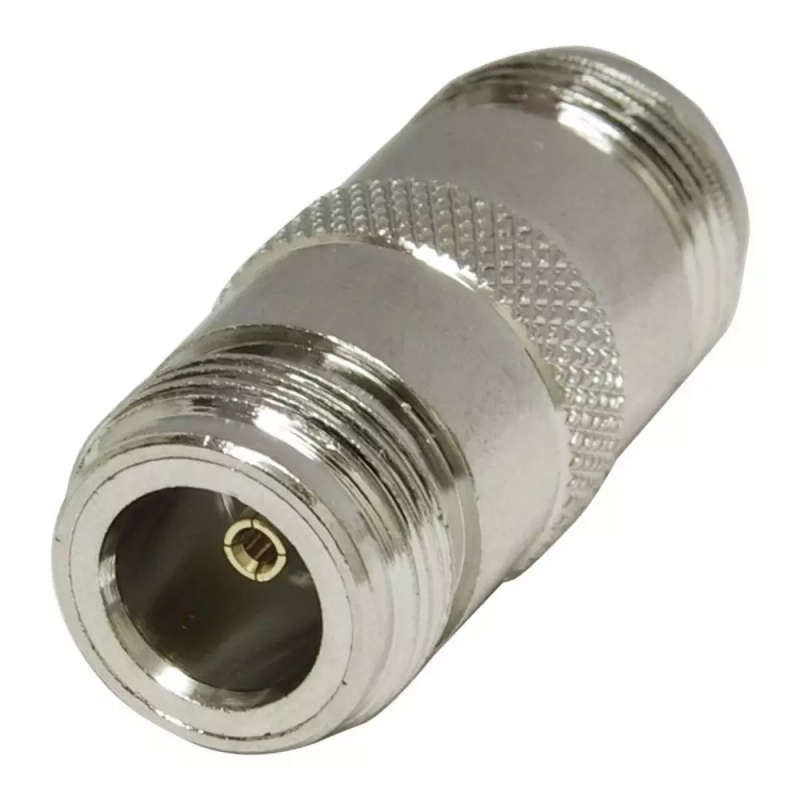

The N-Type Barrel connector Joiner / Coupler adapter is perfect for joining two sections of coaxial cable that terminate in Type N male connectors.
Product Specifications | |
Frequency | DC to 6 GHz |
Impedance | 50 |
VSWR | 1.10 (0-3GHz) |
Insertion Loss | 0.1 dB |
Mating Cycles | 500 cycles |
Connectors | N-Type Female to N-Type Female |
Angle | Straight |
Outer Conductor | Brass with Nickel plating |
Center Conductor | Bronze with Silver plating |
Fastener/Body | Brass with Nickel plating |
Dielectric | PTFE |
Operating Temperature | -40°C to +85°C |
Environmental Standards | RoHS |
Connectors and cable usually used with the coupler
