Indoor 450m Outdoor 150m

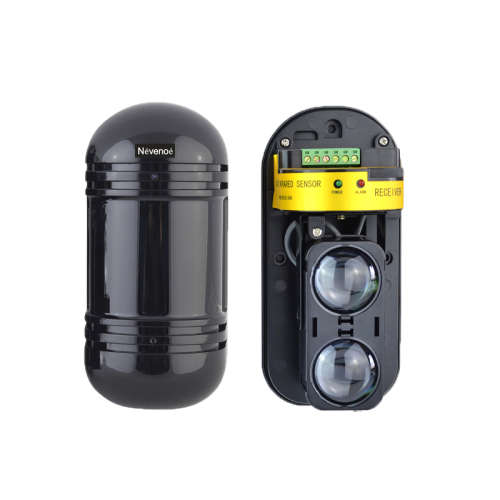

Two Beam Photoelectric Alarm Infrared Detector
Beam detector for perimeter security
Active infraed beam detector with two beams
Damp-proof and dust-proof
Outdoor approx. 150 Meters / Indoor Approx. 450 Meters
Intelligent power transmission: independent development of the chip can automatically sense ambient changes
According to the environmental conditions to automatically adjust to the radio's transmit power, greatly extending the life of the launching tube, while also lowering power.
Cable, bus compatible, holographic spot real-time reporting.
Full-function diagnostics, environmental adaptive, fault lock
Digital Fuzzy Artificial Intelligence Identification: Using artificial intelligence fuzzy judgments, false positives to a minimum.
Patent coaxial dual focal length precision optical aspheric focusing lens.
dedicated DSP chip, patented multi-dimensional fault-tolerant, real detection alarm technology.
optical lens up and down while structural adjustments, to adjust faster and more accurate.
Features:
- Anti-glare up to 50,000 LUX, built-in automatic adjustment strong light filtering system, avoid glare or lighting of car
- Unique optical design: optical glass, beam penetrates the special multi-layer anti-environment (such as rain and snow) and other capabilities
- Automatically increase sensitivity when faced with fog or inclement weather
- Optional dual aspheric fresnel or secondary focusing lens to achieve a large-diameter light beam
- Automatic environment recognition circuit (EDC), avoid reflective interference modular
- Horizontal / vertical optical angle easy to adjust, easy to calibrate
- High levels of resistance to RFI / EMI capability
- Unique digital filter circuit design
- 99% photographic margin
- Built-in optical sight
- Anti-lightning circuit design
- Use of C-type output device
- Adjustable beam interdiction cycle is more flexible and adaptable
- The integrated structure designed to be able to work in harsh environment
- Connects to exsisting alarm system
Specifications:
- No.of Beams: 2 beams
- Install Distance(Max.) Outdoor: 150m / Indoor: 450m
- Dtection Mode: 2 beams blocked simultaneous
- Optical Source: Infrared digital pulse beam
- Response Speed: 50 ~ 700msec
- 4 channel frequency adjustment can avoid mutual interference when install crossed or face to face.
Package Includes:
- Two Beam Photoelectric Infrared Detector
