N20 DC 6V 55RPM Gear Motor M3 20mm Threaded Shaft Reduction Gear Motor

20 available / new

R486.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3587

93.05 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643385473

Description:

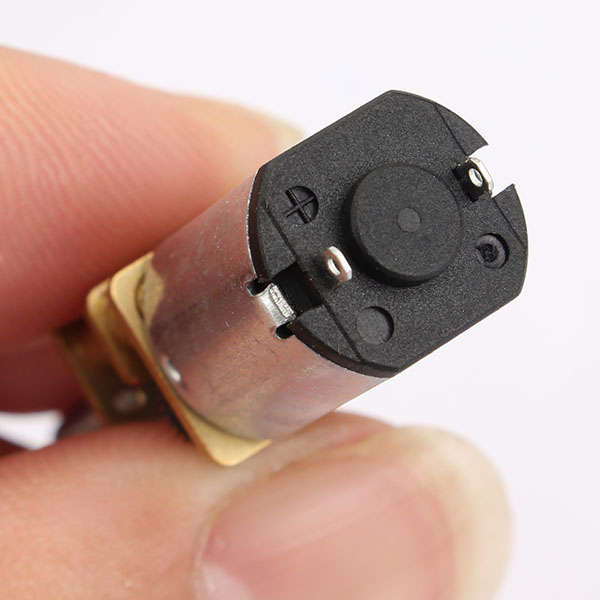

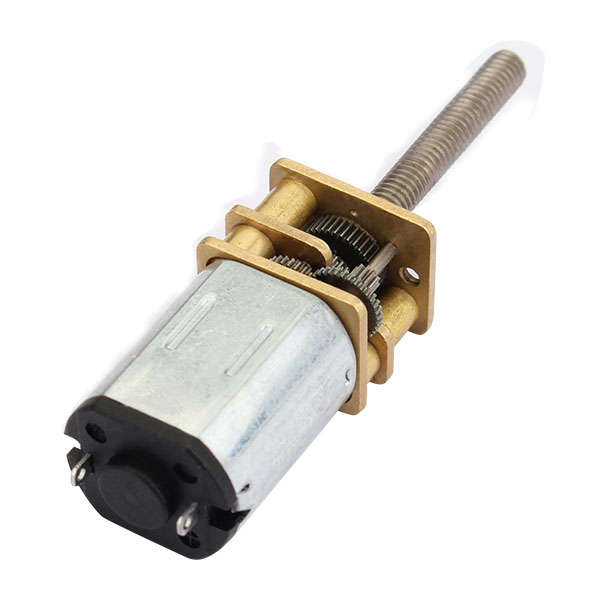

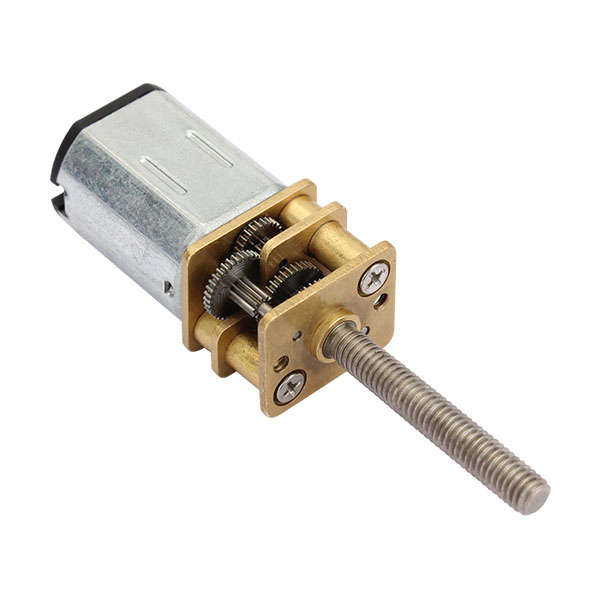

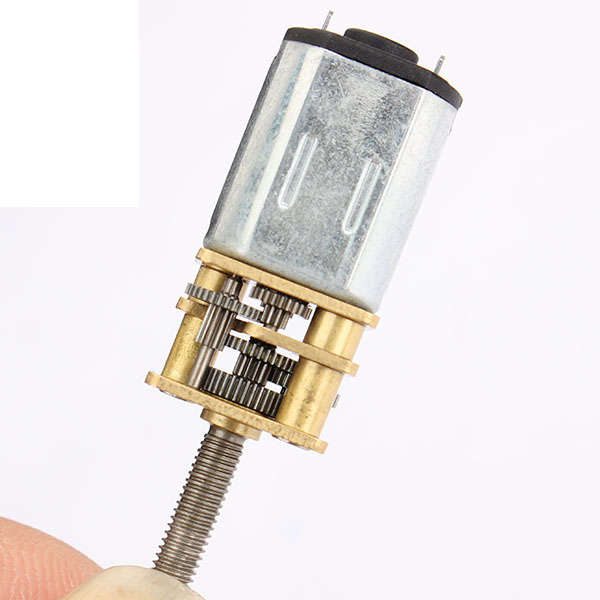

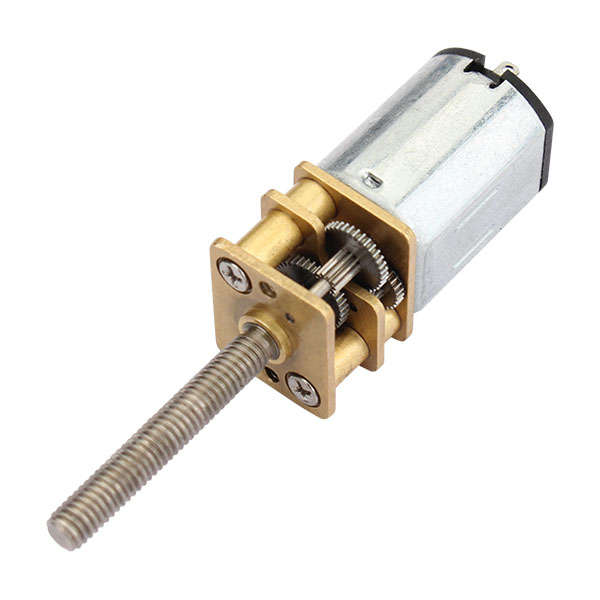

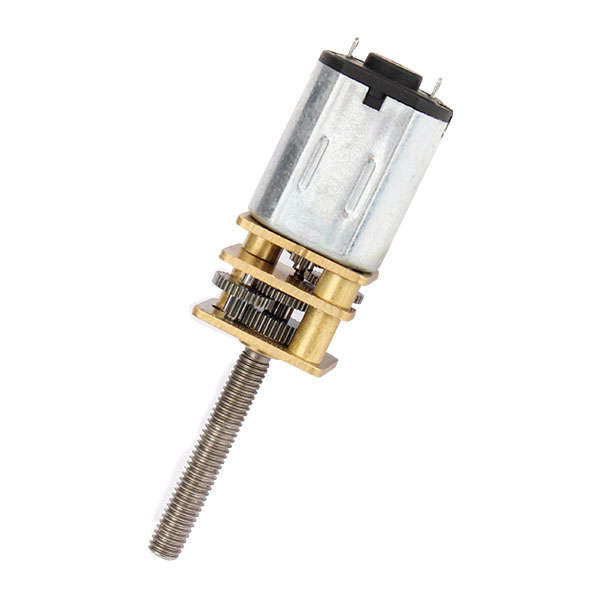

N20 DC 6V 55RPM Gear Motor M3 20mm Threaded Shaft Reduction Gear Motor

Specification:
Voltage: DC6.0V No-load speed: 55RPM Shaft diameter: 3mm Axial length: 20mm

1. Standard Operating Conditions

Item	Specification
Rated Voltage	DC 6.0V
Gear Ratio	1/298
Rotation	CW
Motor Position	All position in horizontal
Temperature	0 - 30 Degree Celsius
Humidity	30% - 95%

2. Performance of Motor

Item	Specification
No-load Speed	16000 +/- 10%rpm
No-load Current	35mA (Max)
Stall Current	600mA (Max)
Stall Torque	10g.cm

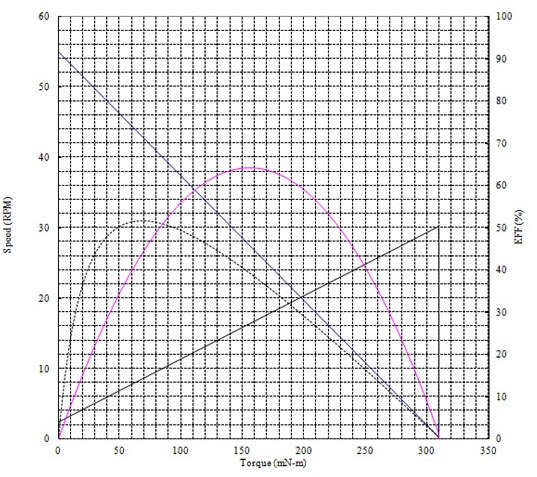

3. Performance of Gear Motor

Item	Specification
Outer Speed	55 +/-10%rpm
No-load Current	50mA (Max)
Stall Current	600mA (Max)
Stall Torque	3.0kg.cm
Rated Torque	750g.cm
Rated Current	150mA (Max)
Rated Speed	40+/-10%rpm
Noise	50dB

4. Dimension

Item	Specification
The Outside Shafft Length	20mm
Shaft End Play	0.05 - 0.50mm
Screw Size	M1.6 x 0.35
Diameter of Shaft	M3 threaded shaft
Outline Mounting Dimension	Refer to the Outline Drawing
