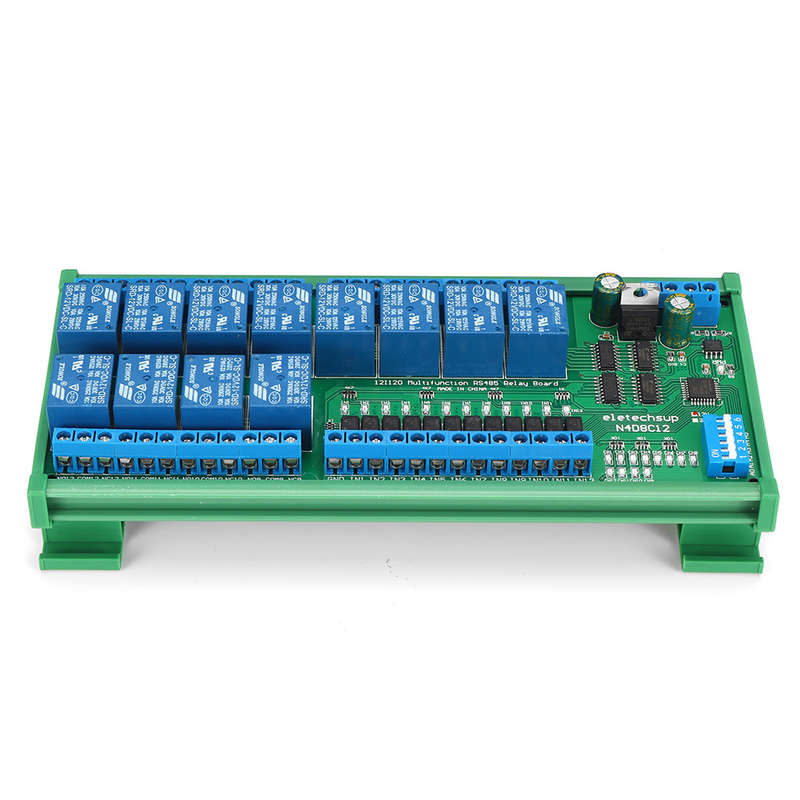

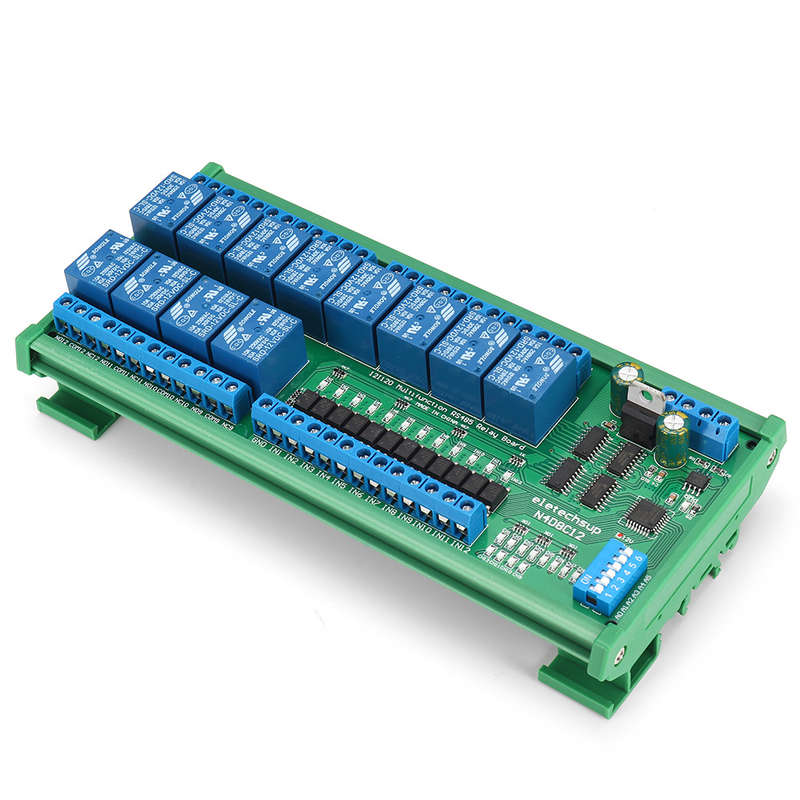

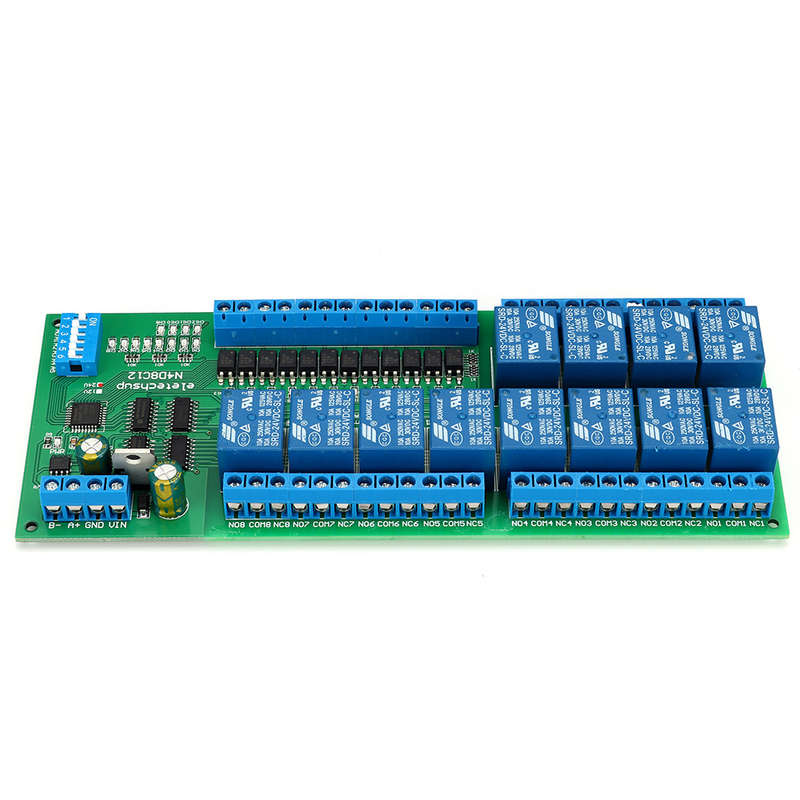

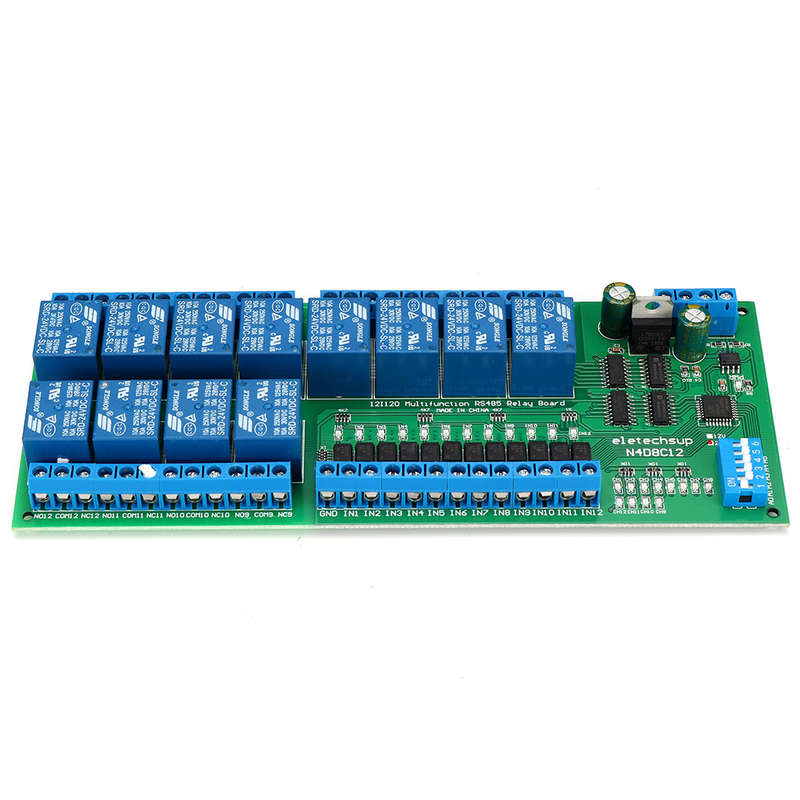

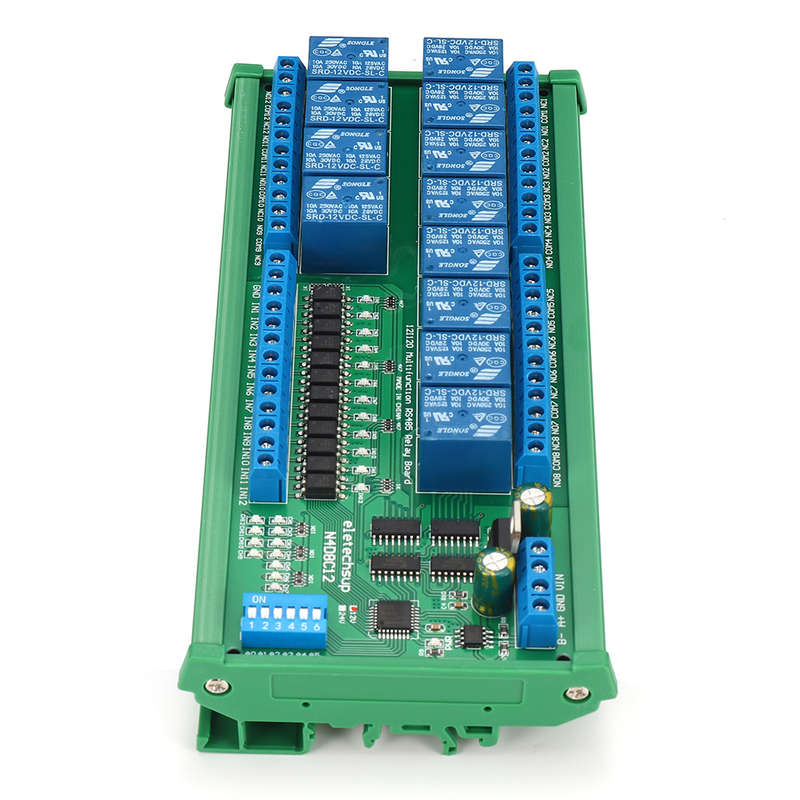

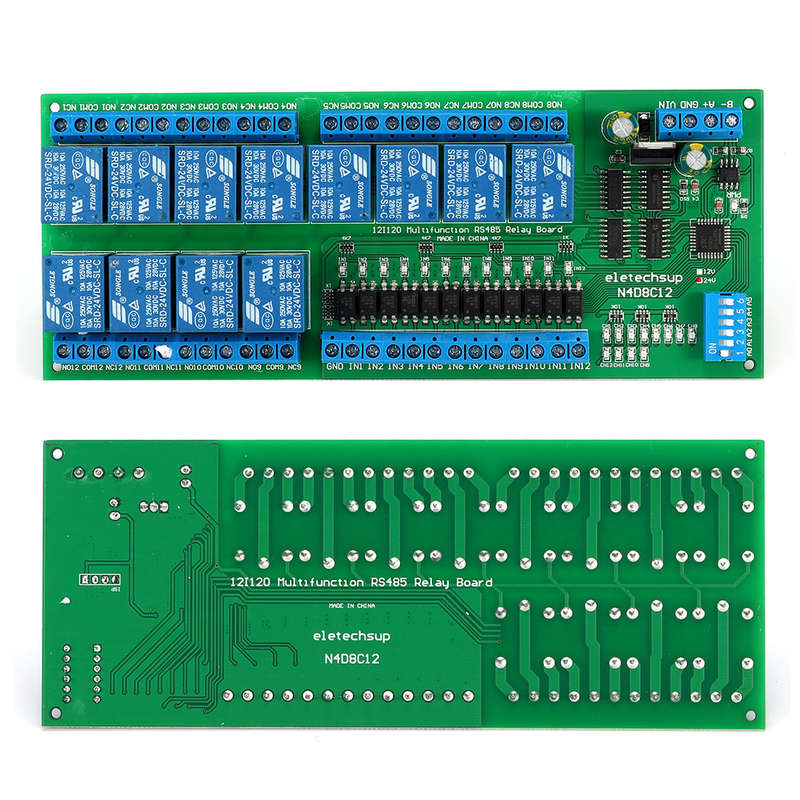

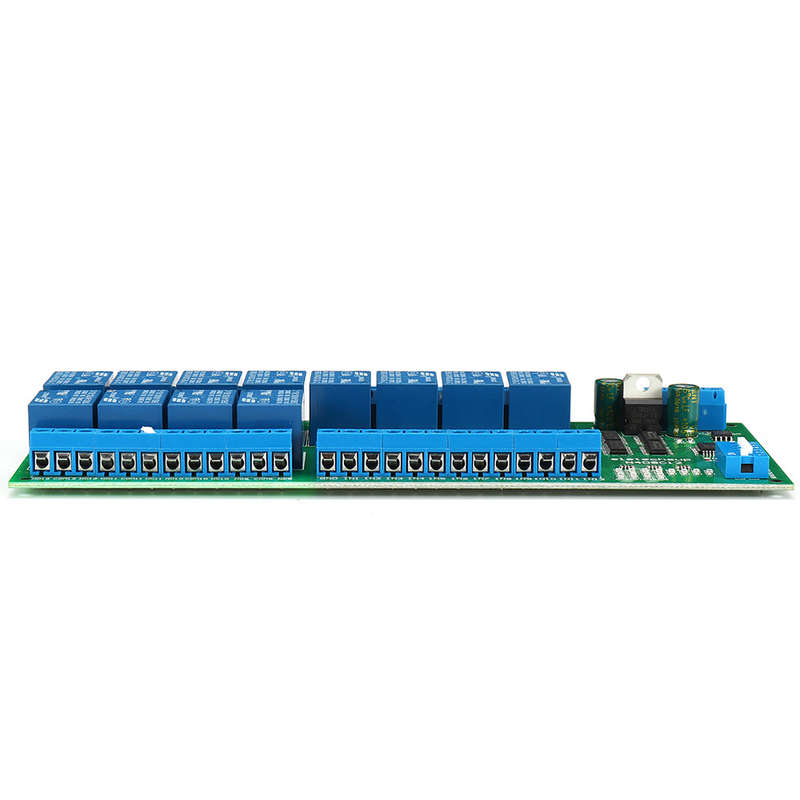

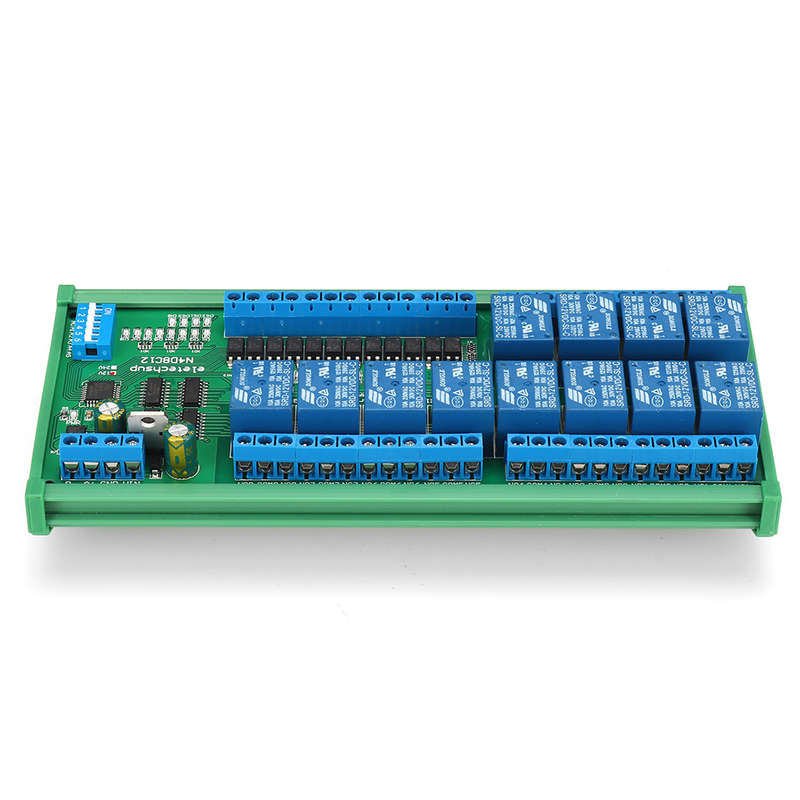

N4D8C12 Isolation 12V/24V RS485 Relay Modbus RTU Protocol D... (VOLTAGE: 12V | TYPE: WITHDINRAILBOX)

N4D8C12 Isolation 12V/24V RS485 Relay Modbus RTU Protocol D... (VOLTAGE: 12V | TYPE: WITHDINRAILBOX)

20 available / new
R1,145.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
szulou3548
93.35 % Positive ratings
Buyer protection
How you're covered
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
643385474

SELECTED OPTION:
VOLTAGE: 12V
TYPE: WITHDINRAILBOX


 Features: 1. Working voltage: DC 12V (12V version); 24V (24V version) OPTIONAL 2. Working current: standby 14MA, 1 relay conduction 44MA, 2 relay conduction 69MA, 3 relay conduction 95MA, 4 relay conduction 121MA, 5 relay conduction 149MA, 6 relay conduction 175MA, 7 relays conduct 199MA, 8 relays conduct 226MA, etc. 3. 12 optically isolated input ports (NPN is active at low level), and the input/output relationship can be set to associated (default) and non-associated through commands. 4. Open, close, jog, self-lock, interlock, delay, interlock between two channels, seven working modes 5. MODBUS instruction supports 03 06 16 function code 6. The maximum delay under MODBUS instruction is 255 seconds 7. AT commands can be input by serial port super terminal (serial assistant); MODBUS commands can also be input by Modbus Poll in addition to serial port super terminal input 8. In MODBUS command mode, up to 64 devices can be used in parallel 9. The default baud rate is 9600BPS, you can select the baud rate 2400 4800 19200 BPS through the jumper 10.Size: 180 * 72 * 20mm (circuit board); 184 * 88* 42mm (box with guide rail) 11. Weight: 190g (circuit board); 318g (with rail box) 12. Maximum load: 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, 10A/12VDC

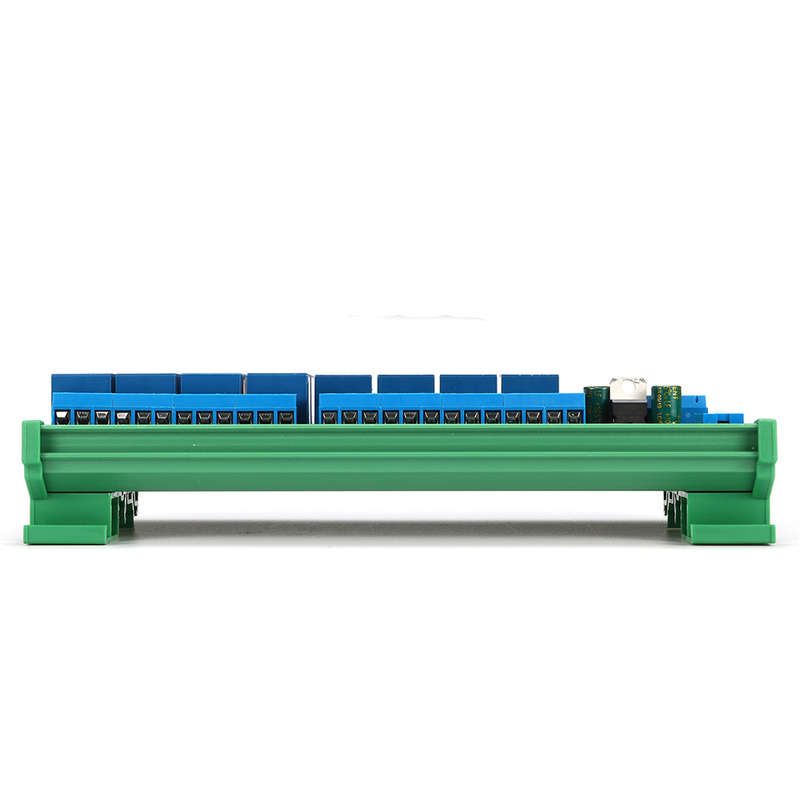

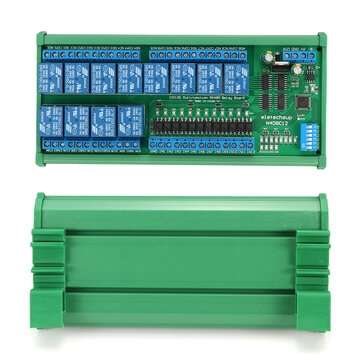

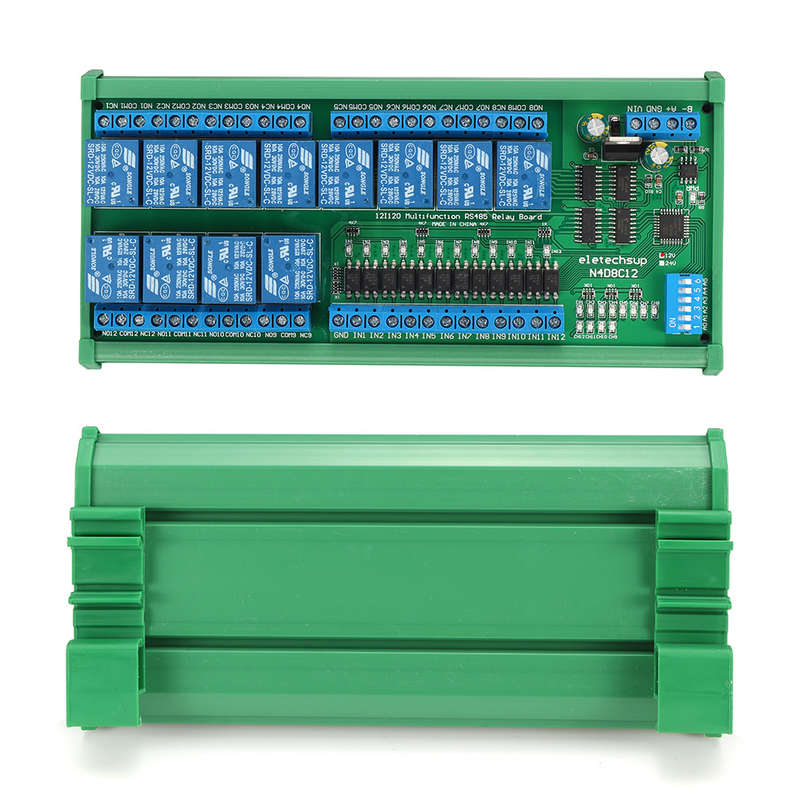

DIN rail box parameters:
Product model: UM72 Color: green Width: suitable for the use of circuit board width UM72 Insulation grade: flame retardant VO grade Base plate length: suitable for 18 cm circuit board Net weight: 128 grams Installation method: DIN35 and C45 rail
Package includes:
1 x Relay board
