Product Description

The Nano Base Board (B) is a compact and efficient development platform designed specifically for the Raspberry Pi Compute Module 5 (CM5). Matching the exact dimensions of the CM5, this base board is ideal for projects where space is limited and a minimal hardware footprint is essential.

Despite its small size, the Nano Base Board (B) offers essential connectivity and expansion options, making it perfect for rapid prototyping, embedded system integration, and low-power applications. Whether you're building smart devices, automation systems, or compact computing solutions, this board provides a reliable foundation.

Suitable For Evaluating The Raspberry Pi CM5 Or Being Integrated Into End Products

Compact size and fully functional, With Multiple Peripheral Interfaces, Suitable for Narrow Application Environments

Product Specs

• CM5 socket: Suitable for all variants of Compute Module 5
• Networking: Gigabit Ethernet RJ45 connector
• Connector : Raspberry Pi 40PIN GPIO interface × 1
• USB: USB 3.2 Gen1 Type A port × 1
• MIPI: MIPI 4-lane interface × 2 (22pin 0.5mm FPC connector)
• Video: Mini HDMI port × 1, supports 4K output
• Audio: USB audio 3.5mm jack
• Storage: TF card socket for Compute Module 5 Lite (without eMMC) variants
• Power input: DC 5V 5A
• PCIe: 16PIN PCIe connector (PCIe Gen2/3 x1)
• Dimensions: 55 × 41mm

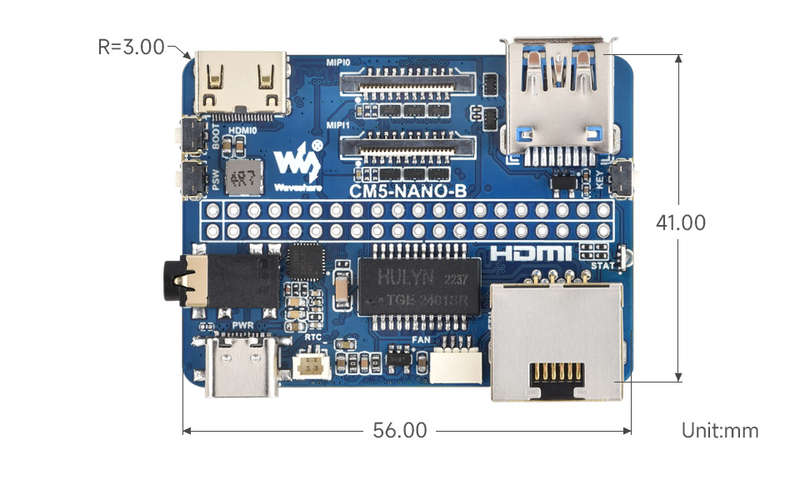

Outline Dimensions
