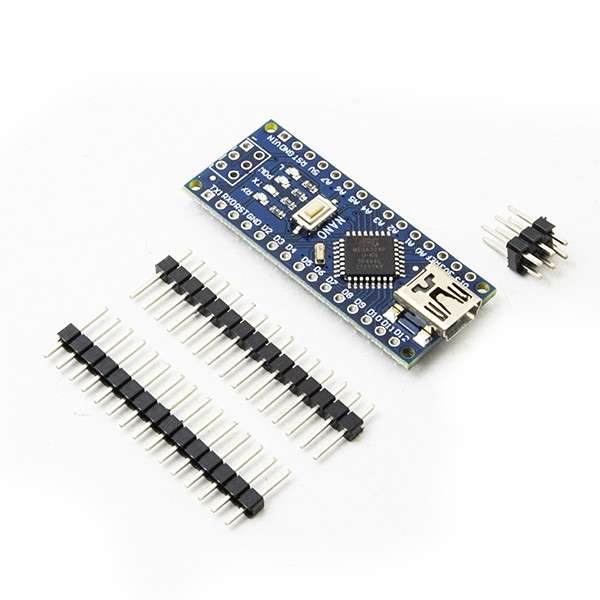

Nano Board CH340 Compatible with Arduino

The Compatible Arduino Nano CH340 is a cost effective and compact option in the Arduino range

This product is a cost effective version on the original Arduino Nano. The only difference being that the USB to Serial converter chip is the CH340 instead of the Atmega16U2 FTDI chip.

Based on the ATmega328 microcontroller, the breadboard-friendly Arduino Nano offers a total of 14 digital I/O channels, 6 of which are PWM I/O, as well as 8 analog inputs. The board runs at 16 MHz clock speed and utilizes 32kB of flash memory ￢ﾀﾓ with 2KB reserved for operating the bootloader.

• CH340G Replace FT232RL
• Operating Voltage(logic level):5V
• 8 analog inputs ports:A0 ~ A7
• 14 Digital input / output ports:TX,RX,D2 ~ D13
• 6 PWM ports:D3, D5, D6, D9, D10, D11
• 1 pairs of TTL level serial transceiver ports RX / TX
• Using Atmel Atmega328P-AU MCU
• There is bootloader installed in it
• Support USB download and Power
• Support for external 5V ~ 12V DC power supply
• Support power supply by 9V battery

ￂﾠPackageￂﾠcontent:

• 1xￂﾠArduino Nano Board
• 1x USB Cable
