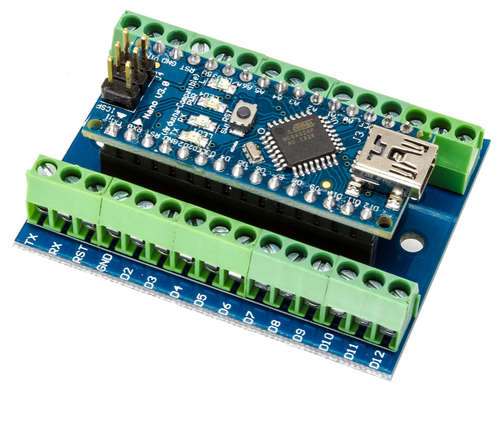

***NANO COMBO***
ARDUINO NANO V3.0 WITH ATMEGA328P AND CH340G (COMPATIBLE) + TERMINAL ADAPTER BOARD FOR ARDUINO NANO V3.0

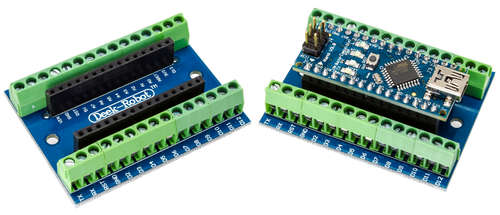

Product information for Terminal Adapter Board
The terminal adapter board provides a professional look and feel and enables secure connections to sensors, motor drivers and servos. Use this dock to add extra connections to your Nano. It uses screw terminals so that you can be sure the connection is strong, and also allows you to use thicker wires.
The terminal adapter is for the Arduino Nano V3.0 but can also be used for the earlier version. (You just have to remember that pins A0 - A7 are in the reverse order)
Specifications
Size: 29 x 71mm

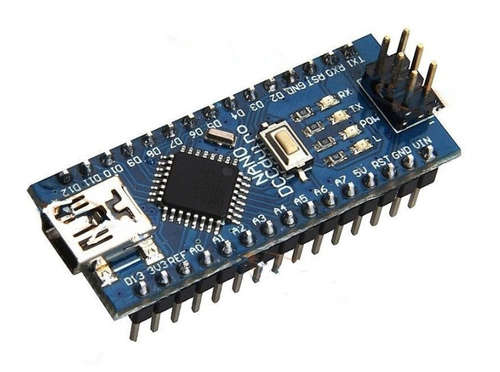

Product information for Arduino Nano V3.0 with ATMega328P and CH340G (Compatible)
The Arduino Nano V3.0 is an ultra-small and simple I/O platform base with open source code support. The Arduino Nano has a big advantage compared to the UNO in its size to pin ratio. The Arduino Nano can be used to develop electronic projects which run independently. It can also be used to develop interactive projects which connect directly to a computer. This version of the Nano uses a CH340G chip instead of the costly FT232RL chip to interface with your PC.
1.Download the required driver HERE
2.Driver software will install automatically when you connect the Nano to your PC.
3.Choose the correct version of Nano in the Arduino IDE software.
4.Choose the correct COM port in the Arduino IDE software
Uses an Atmega328P-AU MCU
32KB Flash Memory (ATmega328) of which 2KB is used by bootloader
2KB SRAM
1KB EEPROM Clock Speed 16MHz
12 Digital input / output pins: D2 - D13
8 Analog inputs pins: A0 - A7
1 pairs of TTL level serial transceiver ports RX / TX
6 PWM pins: D3, D5, D6, D9, D10 and D11
Support Mini-USB download and power
Support for external 5V - 12V DC power supply
Support power supply by 9V battery
Support SPI download
Operating Voltage 5V through on-board regulator
Input Voltage (recommended) 7V - 12V
Input Voltage (limits) 6V - 20V
DC Current per I/O pin: 40 mA
DC Current for 3.3V pin: 50 mA
Specifications
Size: 45 x 17 x 19mm
Net weight: 24g
Colour: Blue (as per picture)
Package Includes
1 x Arduino Nano V3.0 with ATMEGA328P and CH340G
3 x Pin Headers (not soldered)
1 x Terminal Adapter board for Arduino Nano V3.0
