This item has closed 1 buyer bought 1 item
View other items offered by PinOut Labs4

Similar products

Nano V3.0 Board Nano V3.0 Board
Nano V3.0 Board Nano V3.0 Board
Sold

Nano V3.0 Board

New 3 were available
R210.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
PinOut Labs4
100.00 % Positive ratings
Buyer protection
How you're covered
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
Nano-V3.0
Bob Shop ID
647189170

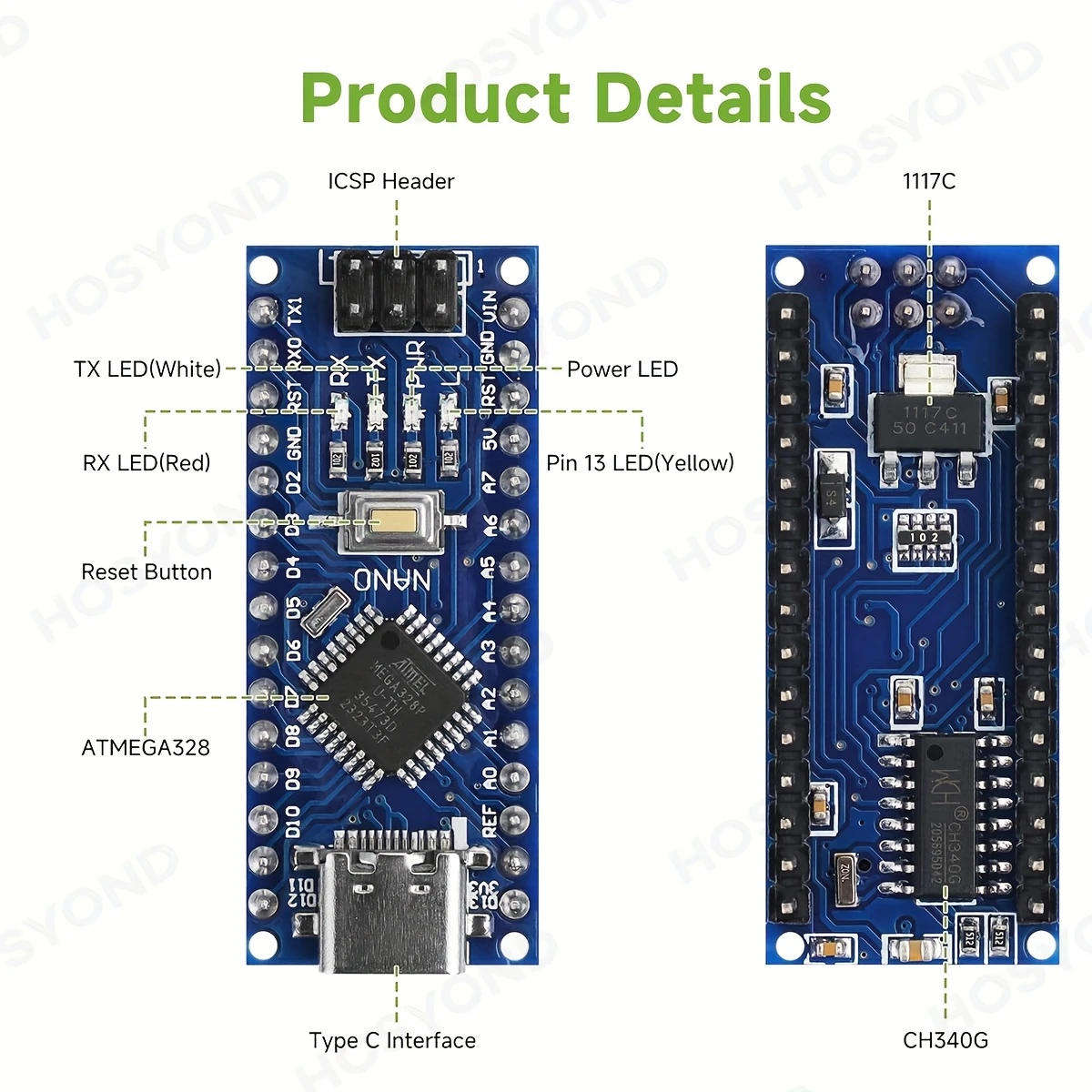

1. Main p: Nano V3.0 board uses ATMEGA328P-AU as main p. Support ISP download, USB download and power supply. Fully compatible with Arduino Nano, Windows, MAC and Linux operating systems
2. Upgrade USB Bus Adapter p: Upgrade CH340G p, not FT232, please install the driver first. CH340G supports full-speed USB devi interfa, compatible with USB V2.0, aeve USB to serial or USB to print port implementation
3. Power Supply: Nano board can be powered via Type-C connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power sour is automatically selected to the highest voltage sour, without the need for a power selection jumper

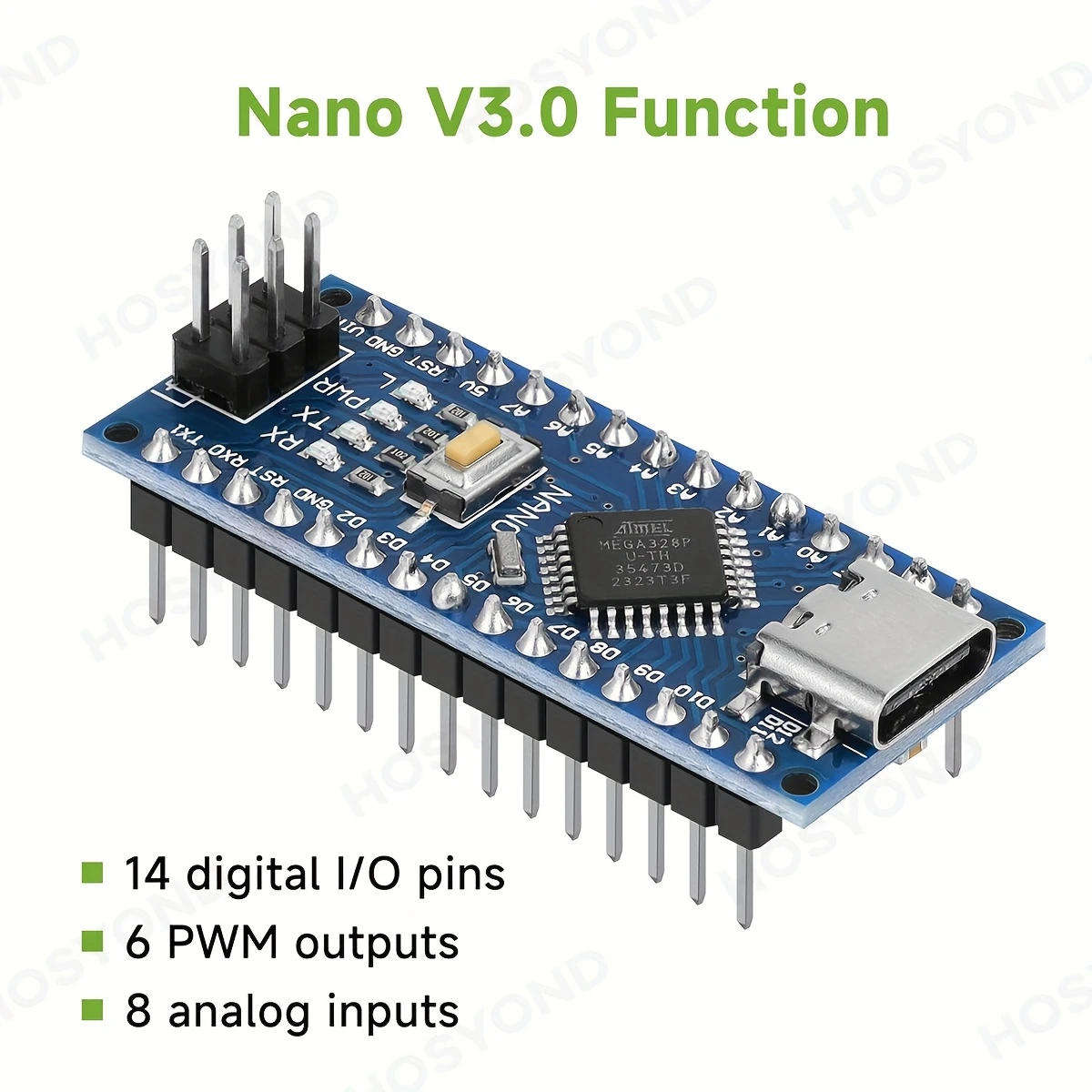

4. Perfect Design: Nano V3.0 is a smallest, complete and breadboard friendly board. The board has 14 digital I/O pins, 6 PWM outputs, 8 analog inputs. It is enough for most applications


Core Specifications

FeatureSpecification
MicrocontrollerATmega328P
Architecture8-bit AVR
Operating Voltage5V
Input Voltage (recommended)712V
Input Voltage (limits)620V
Clock Speed16MHz

I/O & Interfaces

FeatureSpecification
Digital I/O Pins14 (6 can be PWM outputs)
PWM Pins6 (3, 5, 6, 9, 10, 11)
Analog Inputs8 (A0 to A7, 10-bit resolution)
UART1 (pins D0 [RX], D1 [TX])
SPIYes (pins D10D13)
I²CYes (A4 = SDA, A5 = SCL)
External InterruptsD2, D3
