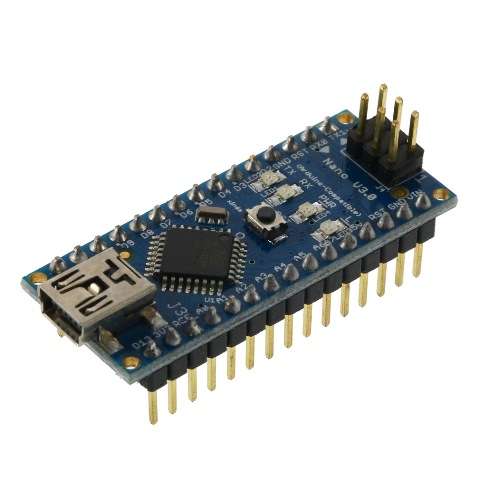

Nano V3 (Arduino Compatible)

The Nano v3 is a small, breadboard-friendly board based on the ATmega328. It has more or less the same functionality of the Arduino Duemilanove or Uno, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one (not included).

Features:

• ATmega328P-AU Microcontroller
• Operating Voltage: 5V
• Input Voltage (recommended) : 7V-12V
• Input Voltage (limits) : 6V-20V
• Digital I/O Pins: 14 (of which 6 provide PWM output)
• Analog Input Pins: 8
• DC Current per I/O Pin: 40 mA
• DC Current for 3.3V Pin: 50 mA
• Flash Memory: 32 KB of which 2 KB used by bootloader
• SRAM: 2 KB
• EEPROM: 1 KB
• Clock Speed: 16 MHz

Bootloader installed, ready to upload sketches from the Arduino IDE.

Click here for more information on the Nano board

Click here to download the Arduino IDE Software

If your Nano has the PL2303 UART chip, click here to download drivers from the manufacturers web site or download Windows 7/8 compatible drivers here (Most are FTDI and will always be from July '14 onward)

Please note that the pins are not soldered to the board.

Note: This is an Arduino compatible board. It comes packaged in an anti-static bag instead of the retail boxed version.
