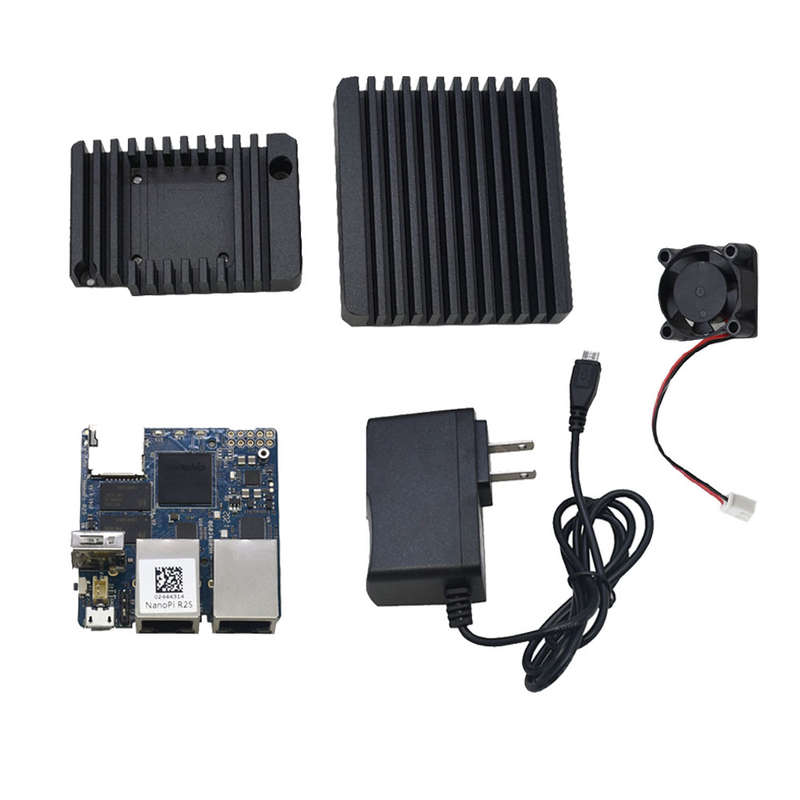

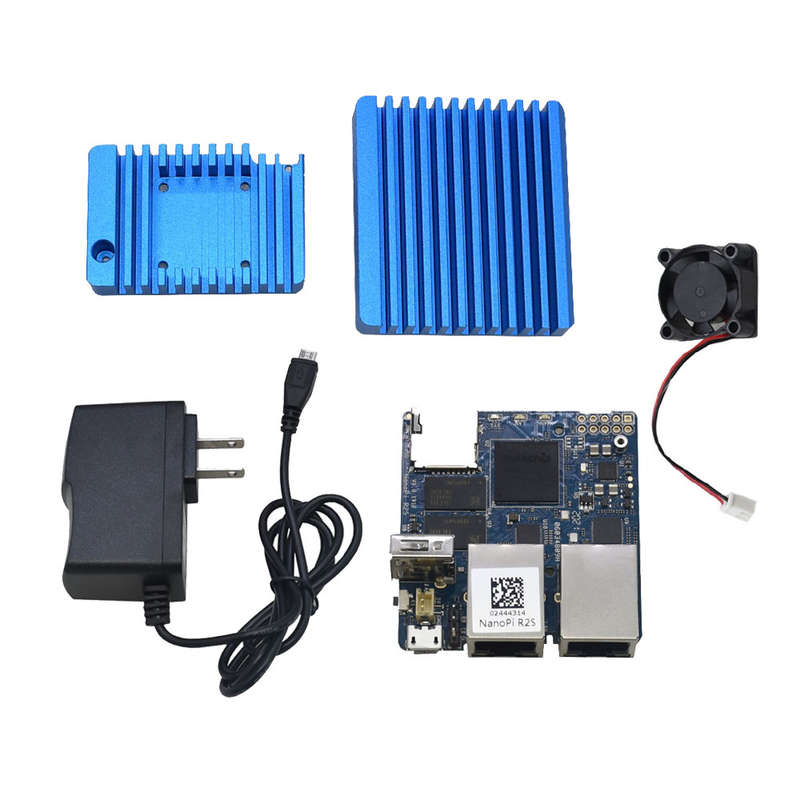

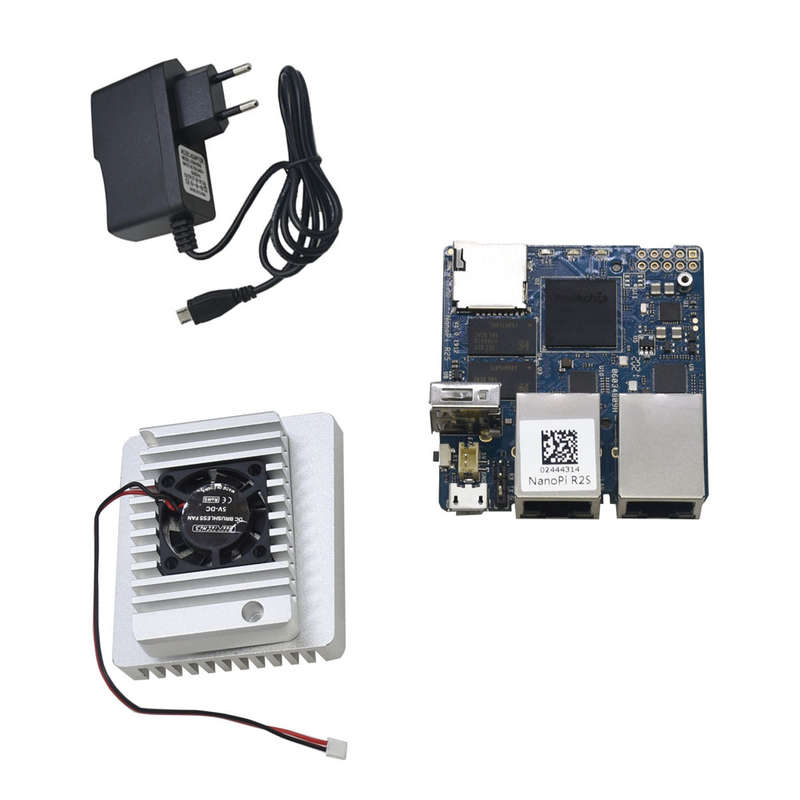

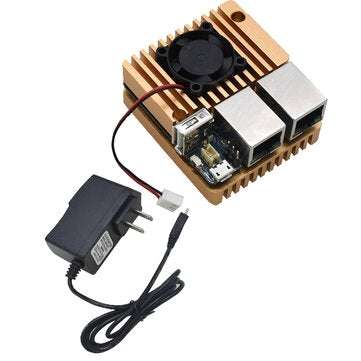

Nanopi R2S Mini Router +Aluminum Alloy Metal Protective Cover with ... (PLUG: EUPLUG | COLOR: BLUE)

20 available / new

R1,529.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3526

93.42 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643385495

SELECTED OPTION:
PLUG: EUPLUG
COLOR: BLUE

Features:

NanoPi R2S is an open source platform with two Gbps Ethernet ports, designed for IoT applications.
NanoPi R2S uses RK3328 CPU. It has two Gbps Ethernet ports and 1G DDR4 RAM. We have applied system for OpenWrt to NanoPi R2S. You can easily make it a router by simply applying simple configurations.
Powerful Performance RK3328. Quad-core/1GB DDR4 RAM. Supports hardware acceleration for AES enabled encryption and decryption. 1GB DDR4 RAM sufficient for running various applications.
Designed with platform for Docker which is a light software utility that can package an application and its dependencies in a virtual container that can run for any Linux server. Most applications for ARM64 can be run seamlessly via the platform for Docker.
The NanoPi R2S has two Gbps Ethernet ports: one directly extended form the SoC and the other converted from a USB3.0.
For the NanoPi R2S, the internal Gbps Ethernet has a TX rate of 941 Mbps and a RX rate of 941 Mbps; the USB converted Gbps Ethernet has a TX rate of 941 Mbps and a RX rate of 941 Mbps.
Internal 10/100/1000M Ethernet Port x 1USB3.0 converted 10/100/1000M Ethernet Port x 1
TX: 941 Mbps; RX: 941 Mbps

Specifications:

- CPU:
* Model: RK3328
* Number of Cores: Quad-Core Cortex-A53
* Frequency: For 4 x Cortex-A53 Up to 1.4GHz

- Memory: RAM: 1GB DDR4

- Storage: Micro SD Slot: Micro SD x 1 for external storage up to 128GB

- Connectivity:
* Ethernet: Gbps Ethernet x 1
* USB 3.0 to Gbps Ethernet x 1

- Debug Serial Port: 3.3V TTL, 3-pin 2.54mm pitch connector

- USB:
* USB 2.0 Host x 1: USB Type A
* Micro USB x 1: Power input(5V/2A) and Slave

- Pin-header: Serial Debug Port x 1: 2.54mm pitch 3pin-header (3.3V TTL)

- LED:
* SYS LED(Red) x 1
* WAN LED(Green) x 1
* LAN LED(Green) x 1
- Key: User Key x1
- Working Temperature: 0to 80
- Power Supply: DC 5V/2A

- OS Support:
* For FriendlyWrt 19.07.1 (64-bit)
* For Ubuntu Core 18.04 (64-bit)(Linux-5.4 + U-boot-2017.11)

Dimensions:
- PCB: 6 Layer
- PC Size: 55.6 x 52mm
