NanoVNA Testboard Kit VNA Vector Network Analysis Test Demo Board J8

Features:

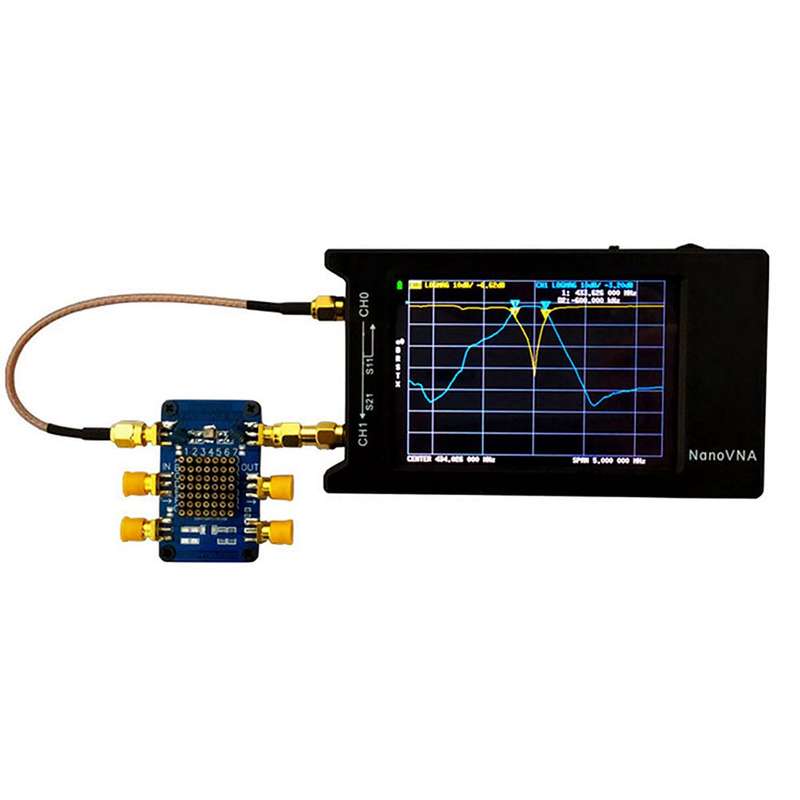

Made of fine quality material, has a long service life. Stable performance, high accuracy, high sensitivity. This test board kit is used for NanoVNA or other vector network analyzer user-friendly measurement DIP and SMT devices. This test board contains a DIP test circuit compatible with VNWA Testboard, and a set of 0805 and 1206 patch test circuits are added.
Note:
1.The SMT circuit cannot fully consider various test conditions. Some parts of test may need to be cut over. Please ensure that you have enough hands-on ability. 2.The circuit board is not soldered before delivery, please bring your own welding tools, please build a test circuit according to your test needs.
Package Included:

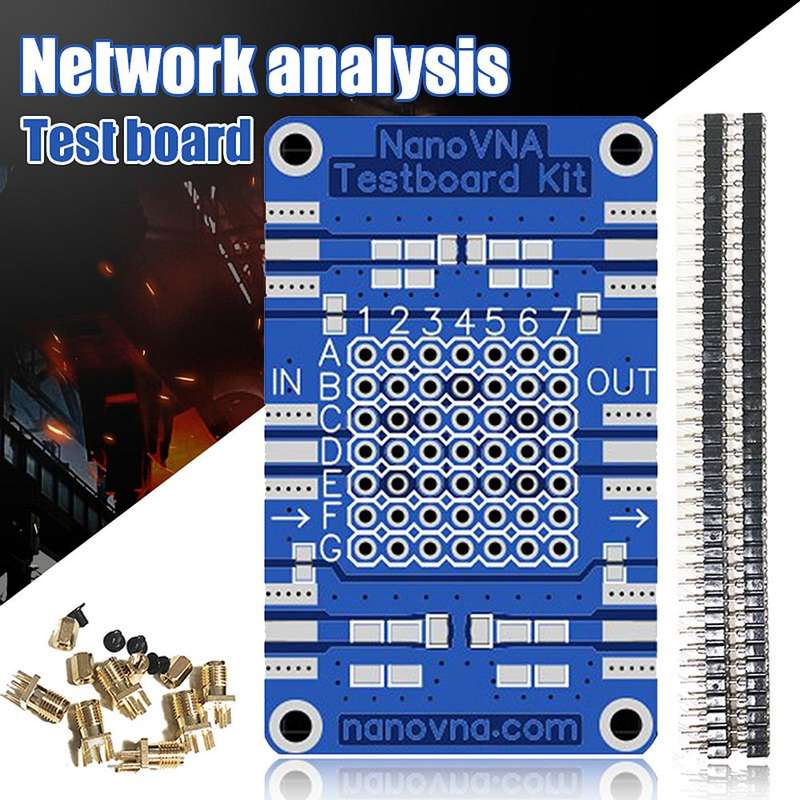

1 x Testboard Main Board 6 x SMA Female Head 4 x 6mm Copper Stud 4 x M2.5 Screw 2 x 40pin Round Row Seat 2 x 0805 49R9 Calibration Resistance
