Nava Solar 3KW XSeries 24V offgrid Solar Inverter 60A MPPT
Closed

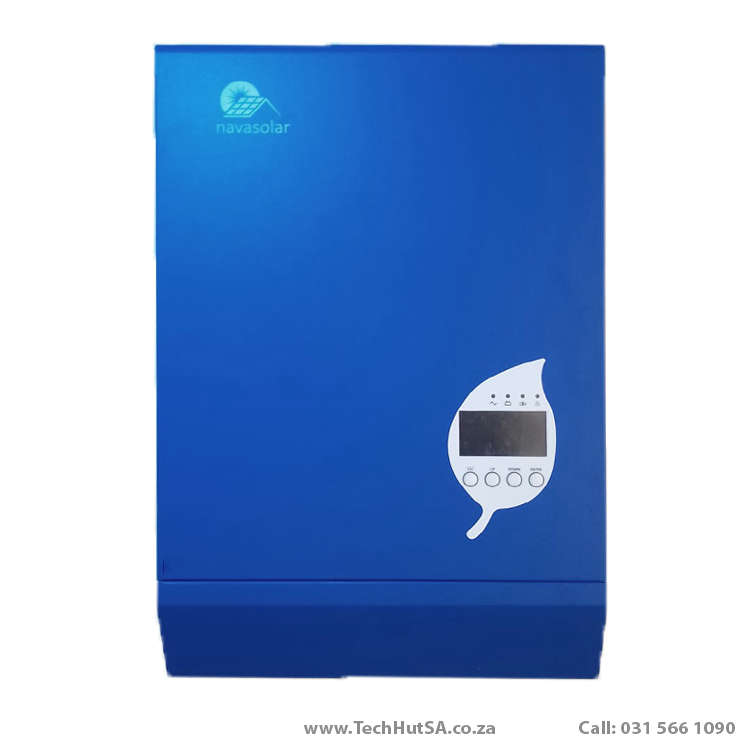

Nava Solar 3KW XSeries 24V offgrid Solar Inverter 60A MPPT

10 were available / new
R5,542.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
NV-X3024
Bob Shop ID
605348014

Inverter Specs

  Pure sine wave solar inverter
Output power factor up to 1.0
Compatible to AC mains or generator inputs
Considerable PV input types
Build-in smart solar charger (PWM/MPPT)
Battery independent design(5kW)
Auto restart while AC is recovering
Configurable AC/Solar input priority via LCD setting
Selectable input voltage range for home appliances
and personal computer loads

Key Specifications
Model : NV-X3024
Rated Power : 3000W / 3000KVA

Input
Voltage : 208/220/230/240VAC
Selectable Voltage Range : 170- 280 VAC (For Personal Computers) | 90- 280 VAC (For Home Appliances)
Frequency Range : 50 Hz/60 Hz (Auto sensing)

Output
AC Voltage Regulation (Batt. Mode) : 230VAC 5 %
Surge Power : 6000W
Effiency (Peak) : 93.5%
Transfer Time : 10 ms
Waveform : Pure sine wave

Battery And AC Charger
Battery Voltage : 24VDC
Floating Charge Voltage : 27.4VDC
Overcharge Protection : 30VDC

Solar Charger
Maximum PV Array Power : 1500W
MPPT Range @ Operating Voltage : 30~115VDCVDC
Maximum PV Array Open Circuit Voltage : 145VDC
Maximum Solar Charge Current : 60A
Maximum AC Charge Current :60A
Maximum Charge Current : 60A

Operating Environment
Humidity : 5% to 95% Relative Humidity(Non- condensing)
Operating Temperature : 0C - 40C
Storage Temperature : - 15C - 60C

Download Datasheet here
