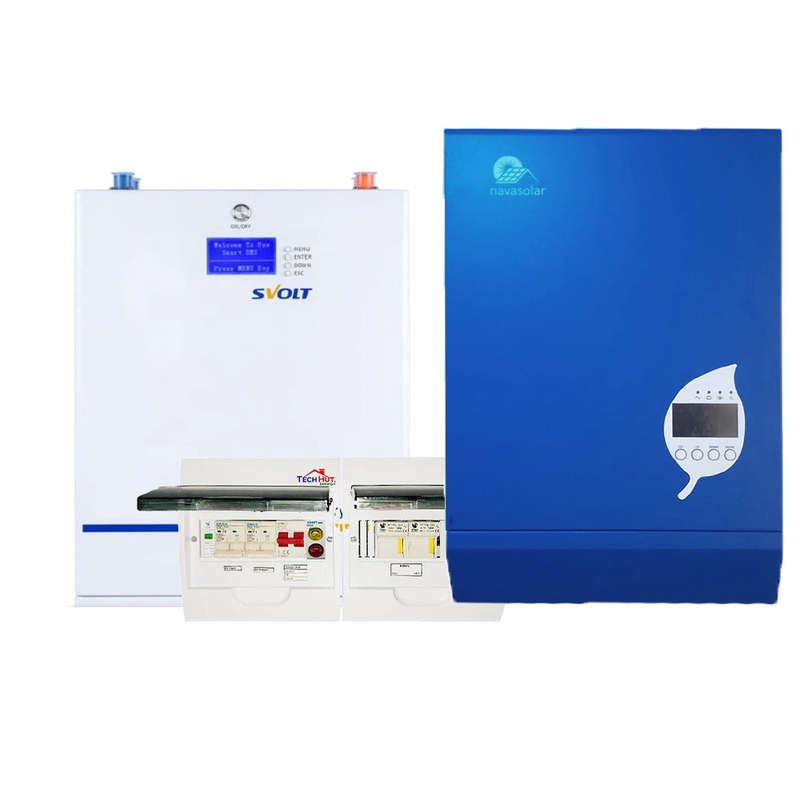

Kit includes
1x Nava Solar 3KW XSeries 24V OFFGRID Solar Inverter 60A MPPT
1x SVOLT 25.6V 106Ah 2.71kWh Lithium Battery - Wall Mounted With
1x Cable pack - 1x Red & Black 25mm Cable(1m) + lugs
1x Distribution Board
Inverter Specs
Pure sine wave solar inverter
Output power factor up to 1.0
Compatible to AC mains or generator inputs
Considerable PV input types
Build-in smart solar charger (PWM/MPPT)
Battery independent design(5kW)
Auto restart while AC is recovering
Configurable AC/Solar input priority via LCD setting
Selectable input voltage range for home appliances
and personal computer loads
Key Specifications
Model : NV-X3024
Rated Power : 3000W / 3000KVA
Input
Voltage : 208/220/230/240VAC
Selectable Voltage Range : 170- 280 VAC (For Personal Computers) | 90- 280 VAC (For Home Appliances)
Frequency Range : 50 Hz/60 Hz (Auto sensing)
Output
AC Voltage Regulation (Batt. Mode) : 230VAC 5 %
Surge Power : 6000W
Effiency (Peak) : 93.5%
Transfer Time : 10 ms
Waveform : Pure sine wave
Battery And AC Charger
Battery Voltage : 24VDC
Floating Charge Voltage : 27.4VDC
Overcharge Protection : 30VDC
Solar Charger
Maximum PV Array Power : 1500W
MPPT Range @ Operating Voltage : 30~115VDCVDC
Maximum PV Array Open Circuit Voltage : 145VDC
Maximum Solar Charge Current : 60A
Maximum AC Charge Current :60A
Maximum Charge Current : 60A
Operating Environment
Humidity : 5% to 95% Relative Humidity(Non- condensing)
Operating Temperature : 0C - 40C
Storage Temperature : - 15C - 60C
Download Datasheet here
The SVOLT 25.6V 106Ah A-Grade Lithium Battery is manufactured by a world-leading manufacturer SVOLT using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.
The SVOLT 25.6V 106Ah A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets - Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems.
Features:
- A-Grade Cell Technology
- Maintenance-free
- Environmental Friendly
- Wide Variety of Markets
- Renewable Energy
- 7 Protection Features
- Mountable
- 5-year Warranty
Battery Specifications:
- Energy: 2.71kWh
- Battery Type-Chemistry: LiFePO4
- Nominal Voltage: 25.6V
- Nominal Capacity: 106Ah
- Energy Density: 2713.6Wh
- Terminal Type: Fast Plug In & Plug Out
- Case Material: SPCC
- BMS Built-in: No
- LCD Screen
- Internal Resistance: - Efficiency - Round Trip: >99%
- Self Discharge per Month: - Max Parallel Connectors: 4Pcs
- Series Connections: Not Allowed
- Cycle Life(0.2C, 25 C @ 80% DOD): >6000 Cycles
- Discharge Temperature: -20 C to 65 C
- Charge Temperature: 0 C to 50 C
- Storage Temperature: -10 C to 30 C
- Voltage Window: 21.6V - 29.2V
- Recommended Charge Voltage: 28.8 0.20V
- Max Charge Voltage: 29.2 0.20V
- Recommended Charge Current: 50A
- Max Continuous Charge Current: 100A
- Recommended Discharge Voltage: 22.4 0.20V
- Max Discharging Voltage: 21.6 0.20V
- Max Continuous Discharge Current: 100A
- Peak Discharge Current: 150A
- Dimensions: L47 x W35 x H15.5 (cm)
- Weight: 28kgs
What's in the box
1 x SVOLT 25.6V 106Ah Lithium Battery
1 x Red (Positive) Battery Cable
1 x Black (Negative) Battery Cable
1 x Mounting kit
1 x Manual
Pre-Assembled Distribution Board
Includes
AC Surface Mount Distribution Board 8-Way
- SWAN 40KA SPD
- SWAN 63A Circuit Breaker 2-Pole
- SWAN 32A Circuit Breaker 2-Pole
- SWAN Change-over switch 63A
DC Surface Mount Distribution Board 8-Way
- SWAN 100A Fuse Holder x2
- SWAN 63A Fuse x2 (Can be upgraded to 100A)
- Space for PV SPD, Fuse Holders and Isolator
