NavaSolar 25.6V 100AH 2.56kWH LifePO4 IP65 Battery Pack

NavaSolar 25.6V 100AH 2.56kWH LifePO4 IP65 Battery Pack

New 10 available
Indicative market price: R9,499.00
R6,499.00
32% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
NV-LFP-25100E
Bob Shop ID
636882096

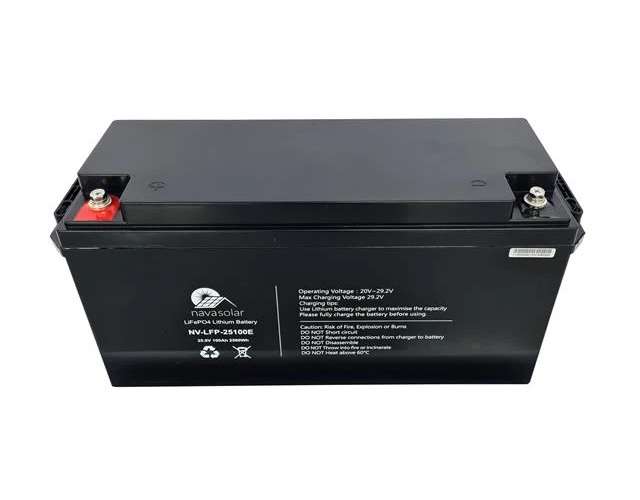

NavaSolar 25.6V 100AH 2.56kWH LifePO4 IP65 Battery Pack

NavaSolar NV-LFP series use quality trustable LiFePO4 cells, with build-in BMS system. IP65 protection, support series and parallel use, is an ideal choice for outdoor, small energy storage, marine and other fields.

Features

  • Safest lithium battery technology
  • Lithium iron Phosphate Battery(LiFePO4 )
  • Eco-friendly
  • Special protection plate, supporting parallel
  • Multiple safety protection
  • Intelligent balancing function
  • 20 Years Designed service life

Technical Specification

Mechanical Specifications
Case Material: ABS
Cell Type -Chemistry: Prismatic LiFePO4
Terminal Type: M8
IP Grade: IP65
BMS Characteristics
Recommended Charge Current: 50A
Maximum Charge Current: 100A
Maximum Continuous Discharge Current: 100A
Recommended Charge Voltage: 27.2~27.6V
Max Charge Voltage: 29.2V
Overcharge Protection Voltage: 29.6~30.0V
Charge Mode: CC/CV
Discharge Cut-off Voltage (BMS): 17.6V
Basic Performance
Nominal Voltage: 25.6V
Nominal Capacity: 100Ah
Standard Discharge Time: 100A @60min
Energy: 2.56K Wh
IR: <= 15m
Self Discharge: <=2%/Month
Cells: Square 100Ah
Cycle Life: 2500 times (1C/1C)
Size: 483x170x240
Weight: 21KG
Charge Performance
Rated Charge Current: 50A
Maximum Charge Current: 100A
Rated Charge Voltage: 27.2~27.6V
Charge Cut-off Voltage: > 29.6V(0.5~1.5S)
Reconnect Voltage: <28.8V
CELL Balancing Voltage: >3.5 V
System Series: <=2
Discharge Performance
Rated Discharge Current: 100A
Pulse Current(<=5S): 600A
Rated Discharge Cut-off Voltage: 22.4V
Minimum Discharge Cut-off Voltage: >20V
Reconnect Voltage: >20.8V
Short Circuit Protection: 200~800 s
Short Circuit Current: Approx. 2200A
Temperature Performance
Discharge Temperature: -20~60âƒ
Charge Temperature: 0~45âƒ
Storage Temperature: -5~35âƒ
High Temperature Cut-off: 70âƒ
Reconnect Temperature: 50âƒ
