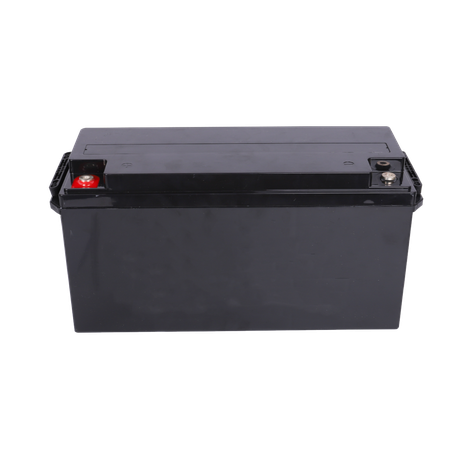

NavaSolar NV-LFP series use quality trustable LiFePO4 cells, with build-in BMS system. IP65 protection, support series and parallel use, is an ideal choice for outdoor, small energy storage, marine and other fields.
Features
Safest lithium battery technology
Lithium iron Phosphate Battery(LiFePO4)
Eco-friendly
Special protection plate, supporting parallel
Multiple safety protection
Intelligent balancing function
Mechanical Specifications
Case Material: ABS
Cell Type -Chemistry Prismatic: LiFePO4
Terminal Type: M8
IP Grade: IP65
BMS Characteristics
Recommended Charge Current: 50A
Maximum Charge Current: 100A
Maximum Continuous Discharge Current: 100A
Recommended Charge Voltage: 27.2~27.6V
Max Charge Voltage: 29.2V
Overcharge Protection Voltage: 29.6~30.0V
Charge Mode: CC/CV
Discharge Cut-off Voltage (BMS): 17.6V
Basic Performance
Nominal Voltage: 2 5.6V
Nominal Capacity: 100Ah
Standard Discharge Time: 100A @60min
Energy: 2.56K Wh
IR: <= 15m
Self Discharge: <=2%/Month
Cells Square: 100Ah
Cycle Life: 2500 times (1C/1C)
Size: 483x170x240
Weight: 21KG
Compliance
Certifications: CE/UN38.3/UL1642/IEC62133
Transport Appraisal: UN3480,CLASS 9
Charge Performance
Rated Charge Current: 50A
Maximum Charge Current: 100A
Rated Charge Voltage: 27.2~27.6V
Charge Cut-off Voltage: > 29.6V(0.5~1.5S)
Reconnect Voltage: <28.8V
CELL Balancing Voltage: >3.5 V
System Series: <=2
Discharge Performance
Rated Discharge Current: 100A
Pulse Current(<=5S): 600A
Rated Discharge Cut-off Voltage: 22.4V
Minimum Discharge Cut-off Voltage: >20V
Reconnect Voltage: >20.8V
Short Circuit Protection: 200~800 s
Short Circuit Current: Approx. 2200A
Temperature Performance
.Discharge Temperature: -20~60
Charge Temperature: 0~45
Storage Temperature: -5~35
High Temperature Cut-off: 70
Reconnect Temperature: 50
Cautions
1. Do NOT short circuit, crush or disassemble.
2. Do NOT heat or incinerate.
3. Do NOT immerse in any liquid.
4. Store at 50% capacity. Recharge every 3 months. The storage area should be clean, cool, dry and ventilated.
5. Disconnect charging source prior to connecting or disconnecting battery terminals.
6. Do not dispose of batteries in a fire as they can explode.
7. Do not open, alter, or mutilate batteries. Released electrolyte is harmful to skin and eyes. It may be toxic.
8. Do not mix different types and brands of lithium-ion batteries.
9. Do not dispose in trash, follow local regulations and manufacturer's instruction.
10. See installation instructions before connecting to the supply.
11. The battery cabinet receives power from more than one source. Disconnection of all DC sources is required to De-energize this unit before installing or servicing. Wait 5 minutes before opening the unit.
12. Do not install on or over combustible surfaces.
13. Refer to manual before servicing.
14. Do not touch bare terminals.
