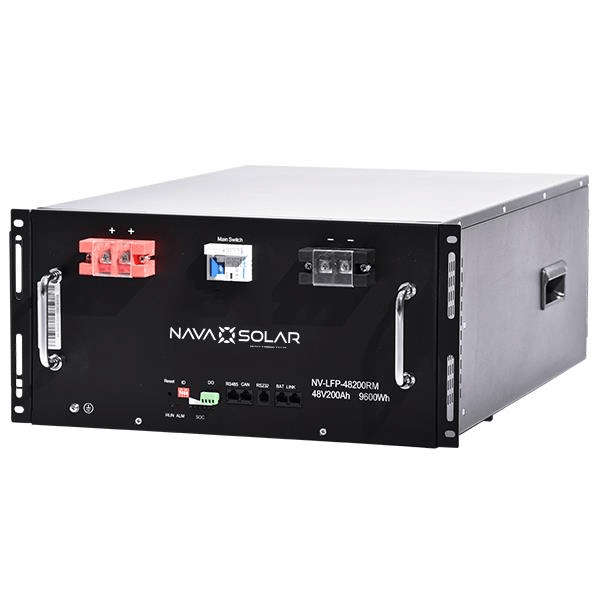

NavaSolar 48V 200AH LiFePO4 RM Battery with BMS NV-LFP-48200RM
Description
Navasolar 48v 200Ah Lithium Iron Phosphate Energy Storage (LiFePo4) Battery for Energy Storage Systems
Battery Data
Model: NV-LFP-48200RM
Nominal Voltage: 48V
Normal Capacity: 9.6kWh
Usable Capacity: 9kWh
Operating Voltage: 42.5 ~ 54V
Rated Charging Current: 40A (100A Max)
Rated Discharging Current: 100A
Max. Discharging Power: 4.2kW
Max Charging Power: 5.4kW
General Data
Dimension (W/D/H): 483/680/225mm
Weight: 78Kg
IP Protection: NA
Working Temperature: 0 C~+45 C
Storage Temperature: -10 C~+30 C
Features
DOD: 80%
Cycle Life: >4000 times
Parallel Connection: Max.16packs
Communication Port: CAN/RS485
Warranty: 5 Years
