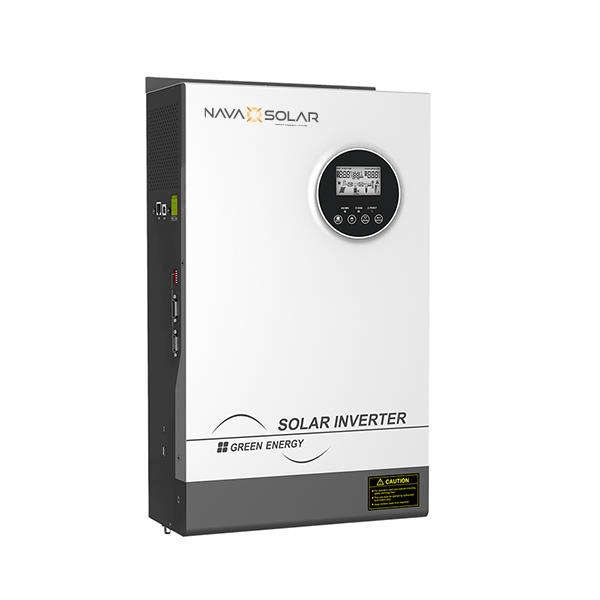

NavaSolar PV1800 Pro 5.2KW 48V Off-Grid Solar Inverter 80A MPPT NV-MV5248PRO

Features:

Pure sine wave output
Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
Built-in MPPT solar charge controller
MAX PV Array Open Circuit Voltage: 450V
Can provide the power to the load without battery
Combining solar system, AC utility, and battery power source to supply continuous power
Overload, short circuit and Deep discharge protection
Cold start function
Support USB, RS485 monitoring function
WIFI remote monitoring

Specifications:
Model: NV-MV5248PRO
Nominal Battery System Voltage: 48VDC
Parallel Capability: Yes, up to 3 Units
Operation Without Battery: Yes

Inverter Output:
Rated Power: 5200W
Surge Power: 10400W
Wave Form: Pure Sine Wave
AC Voltage Regulation(Batt.Mode): (230VAC) 5%
lnverter Efficiency(Peak): 93%
Transfer Time: 10ms(typical)

AC Input:
Voltage: 230VAC 5%

Selectable Voltage Range:
170~280VAC(for Personal Computer)
90~280VAC(for Home Appliance)
184~253VAC(VED4105)

Frequency Range: 50Hz/60Hz(Auto sensing)

Battery:
Normal Voltage: 48VDC
Floating Charge Voltage: 54.8VDC
Overcharge Protection: 60VDC

Solar Charger & AC Charger
Maximum PV Array Open Circuit Voltage: 450VDC
PV Array Voltage Range: MPPT 150~430VDC
Standby Power Consumption: 2W
Maximum PV lnput Power: 5000W
Maximum Solar Charge Current: 80A
Maximum Efficiency: 98%
Maximum AC Charge Current: 60A
Maximum Charge Current: 80A

Communications: USB/RS232/RS485(optional)

Mechanical Specifications:
Machine Dimensions(HWD)(mm): 528295121
Package Dimensions(HWD)(mm): 628425251
Net Weight(kg): 14
Gross Weight(kg): 15
Humidity: 5% to 95% Related Humidity (Non-condensing)

Other
Operating Temperature: 0~50 degrees
Storage Temperature: -15~60 degrees
