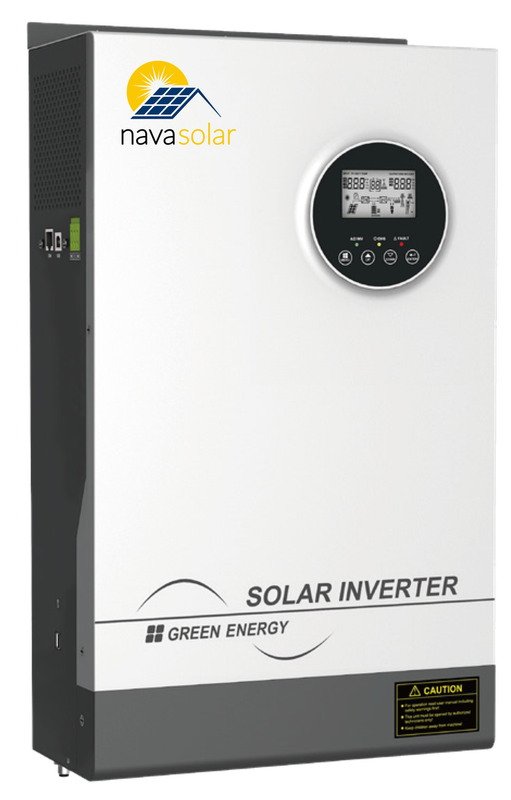

NAVASOLAR PV1800 PRO 5.2KW 48V OFFGRID SOLAR INVERTER

NavaSolar PV1800 Pro 5.2KW 48V Off-Grid Solar Inverter with 80A MPPT

Looking for a reliable and efficient off-grid inverter? The NavaSolar PV1800 Pro is the perfect solution for homes or businesses seeking energy independence.

Key Features

• Pure Sine Wave Output: Ensures clean, stable power for sensitive devices.
• Built-in 80A MPPT Solar Charger: Maximizes energy from your solar panels with up to 98% efficiency.
• Battery-Free Operation: Can power loads directly from solar energy without requiring batteries.
• Smart LCD Display: Adjust settings like charging current, working modes, and more with ease.
• High PV Compatibility: Supports solar input up to 5000W and an open circuit voltage of 450VDC.
• Parallel Operation: Expand capacity by connecting up to three units in parallel.
• Comprehensive Protection: Built-in safeguards against overload, short circuits, and deep discharge.
• Cold Start Function: Powers up even in low-energy conditions.
• Remote Monitoring: USB, RS485, and optional Wi-Fi for real-time system monitoring.

Technical Specifications

Inverter Output:

• Rated Power: 5200W
• Surge Power: 10,400W
• AC Voltage Regulation (Battery Mode): 230VAC ±5%
• Waveform: Pure Sine Wave
• Efficiency: 93% Peak
• Transfer Time: 10ms (typical)

Solar Charger:

• MPPT Voltage Range: 150430VDC
• Maximum PV Array Open Circuit Voltage: 450VDC
• Maximum Solar Input Power: 5000W
• Maximum Solar Charge Current: 80A

Battery System:

• Nominal Voltage: 48VDC
• Float Charge Voltage: 54.8VDC
• Overcharge Protection: 60VDC

AC Input:

• Voltage Range:
  • 170280VAC for PCs
  • 184253VAC for VED4105 compliance
• Frequency Range: 50Hz/60Hz Auto-Sensing

General:

• Parallel Capability: Yes, up to 3 units
• Operating Without Battery: Supported
• Operating Temperature: 050°C
• Storage Temperature: -1560°C

What's in the Box:

• 1 x NV-MV5248PRO
• 1 x NV-WDMV USB WIRELESS DONGLE
• 1 x Manual
• 1 x BMS Cable
• 1 x VGA Parallel Connection Cable
• 1 x USB A Cable

Why Choose NavaSolar PV1800 Pro?

This off-grid inverter is designed to seamlessly combine solar, battery, and grid power sources to ensure uninterrupted energy supply. Its perfect for off-grid homes, farms, workshops, or businesses looking to reduce electricity costs and achieve energy independence.
