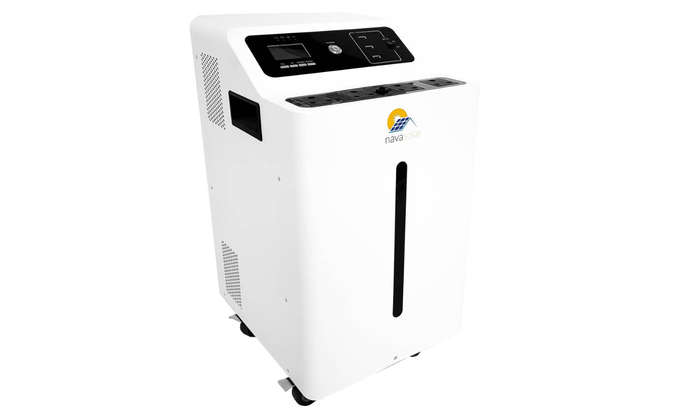

Mobile All-In-One ESS-(2 months old)
NB: Please ensure the battery breaker is switched on before turning on the inverter
Mobile and Convenient - Plug and Play
Features:
Built-in off-grid solar inverter and lithium battery modules
Pre-programmed system with plug-and-play
Output power: 1.5kW
1.28kWh
Flexible enough to power most home or office appliances to cover load shedding
Mobile on wheels for power on the go
Enhanced surge/lightning protection
AC Breakers and DC fuse protection
Combined AC and solar chargers
Max 1C charging current for quick recharge (1-2 Hours)
Equipped with RS232 and USB communication ports for remote monitoring
What are Trolley Inverters?
Trolley inverters are power inverters that are designed to convert DC voltage from a battery bank into AC voltage that can be used to power electronic devices and appliances. They are called trolley inverters because they are often designed to be portable, and come with wheels and a handle, similar to a trolley or cart, making them easy to move around. Trolley inverters are commonly used in off-grid or backup power systems, where there is no access to grid power or where the grid power is unreliable.They can be used in conjunction with renewable energy sources, such as solar panels or wind turbines, toprovide a continuous supply of electricity. Trolley inverters come in various sizes and power ratings, ranging from small inverters that can power a few lights and electronic devices to larger inverters that can power entire homes or even businesses. They may also include features such as built-in battery chargers, input/output ports, and monitoring systems to monitor battery voltage and power output.
What are the Benefits?
- Backup Power: One of the main benefits of using an inverter trolley at home is that it can provide backup power in case of a power outage.
- Clean Energy: Inverter trolleys can be paired with renewable energy sources such as solar panels, wind turbines, or hydro turbines to provide clean energy.
- Noise-Free Operation: Inverter trolleys are typically quiet and do not produce any noise or fumes, unlike generators that run on fuel.
- Cost-Effective: Inverter trolleys can be a cost-effective solution for backup power compared to generators that require fuel and maintenance. They are also more efficient,meaning they can provide more power for a longer period of time on the same amount of battery power.
- Easy to Install and Use: Inverter trolleys are easy to install and use, and most come with user-friendly interfaces and monitoring systems that allow you to monitor battery voltage, power output, and other parameters.
- Mobile All-In-One Energy Storage System, Enjoy The Life Without Load Shedding
Specifications:
Model: NV-TI-1512
Rated Inverter Power: 1500VA/1500W
Input:
Voltage: 230Vac+-5%
Voltage Range: 154-264Vac
Frequency Range: 40-70Hz
AC Input Connection: IEC C20
PV Input Connection: PP75
Output:
AC Voltage Regulation (Batt. Mode): 230VAC+-5%
Surge Power: 1500VA
Efficiency (Peak): 93.00%
Transfer Time: 20 ms (Typical)
Waveform: Pure Sine Wave
Output Type: 4 x AC Outlets, 2 x USB PD Ports (QC3.0)
Solar Charger and AC Charger:
Solar Charger Type: PWM
Maximum PV Array Power: 960W
Maximum PV Array Open Circuit Voltage: 30-85Vdc
Maximum Solar Charge Current: 40A
AC Charge Current: 30A
Maximum Charge Current: 50A
Battery:
Capacity: 1280Wh (25.6V 50Ah)
Nominal Voltage: 25.6Vdc
Charging Voltage: 27.6V
Max Continuous Discharging Current: 50A
Communication:
Communication Ports: USB/RS232 (Baud Rate2400)
Protection:
Protection Type: AC Input/Output Breakers, Battery Switch, Earth Leakage Circuit Breaker
Environment:
Humidity: 20%-95% (No Condensing)
Storage Temperature: -15 - 60
Operation Temperature: 0 - 40
Physical:
Dimension (net), D x W x H (mm): 280x280x520
Dimension (package), D x W x H (mm): 330x330x600
Net Weight (kg): 20
Gross Weight (kg): 25
What's in the box
1 X NV-TI-1512 Inverter Trolley
