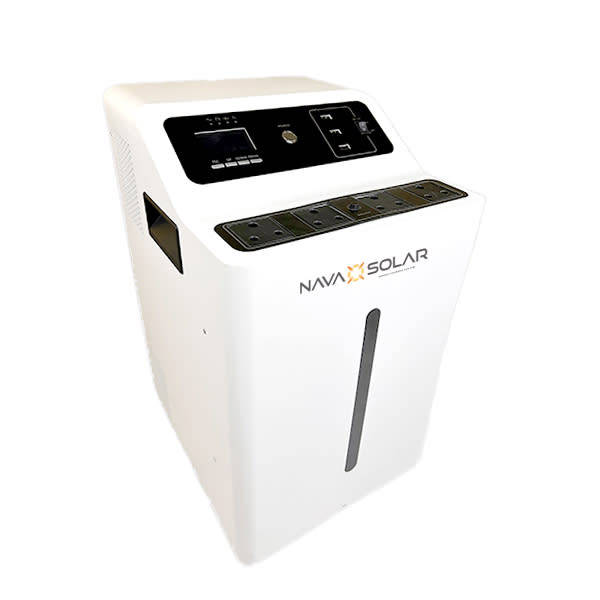

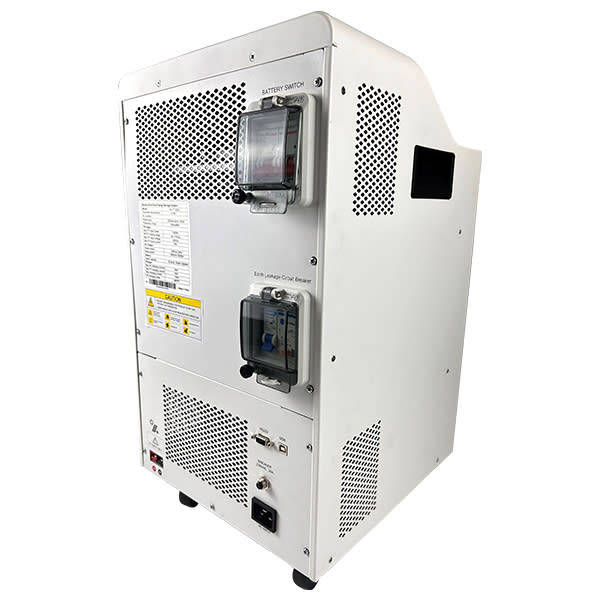

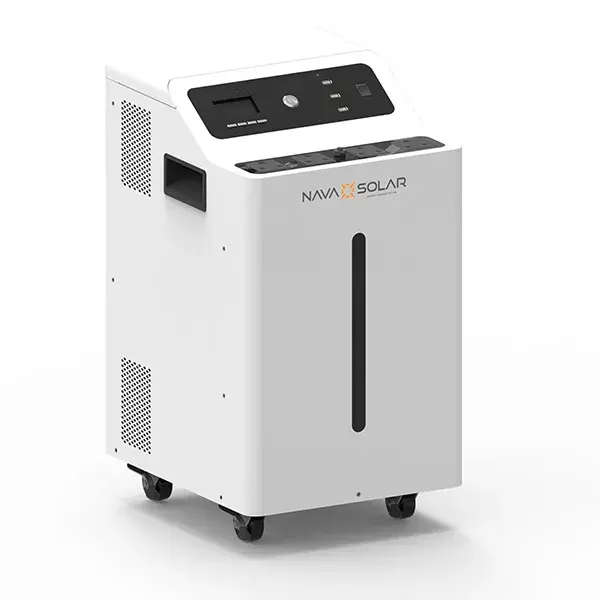

Mobile All-In-One ESS
   Mobile and Convenient - Plug and Play
Features:
   Built-in off-grid solar inverter and lithium battery modules
   Pre-programmed system with plug and play
   Output power: 1.5kW
   1.28kWh
   Flexible enough to power most home or office appliances to cover load shedding
   Mobile on wheels for power on the go
   Enhanced surge/lighting protection
   AC Breakers and DC fuse protection
   Combined AC and solar chargers
   Max 1C charging current for quick recharge (1-2 Hours)
   Equipped with RS232 and USB communication ports for remote monitoring
Specifications:
   Model: NV-TI-1512
   Rated Inverter Power: 1500VA/1500W
Input:
   Voltage: 230Vac+-5%
   Voltage Range: 154-264Vac
   Frequency Range: 40-70Hz
   AC Input Connection: IEC C20
   PV Input Connection: PP75
Output:
   AC Voltage Regulation (Batt. Mode): 230VAC+-5%
   Surge Power: 1500VA
   Efficiency (Peak): 93.00%
   Transfer Time: 20 ms (Typical)
   Waveform: Pure Sine Wave
   Output Type: 4 x AC Outlets, 2 x USB PD Ports (QC3.0)
Solar Charger and AC Charger:
   Solar Charger Type: PWM
   Maximum PV Array Power: 960W
   Maximum PV Array Open Circuit Voltage: 30-85Vdc
   Maximum Solar Charge Current: 40A
   AC Charge Current: 30A
   Maximum Charge Current: 50A
Battery:
   Capacity: 1280Wh (25.6V 50Ah)
   Nominal Voltage: 25.6Vdc
   Charging Voltage: 27.6V
   Max Continuous Discharging Current: 50A
Communication:
   Communication Ports: USB/RS232 (Baud Rate2400)
Protection:
   Protection Type: AC Input/Output Breakers, Battery Switch, Earth Leakage Circuit Breaker
Environment:
   Humidity: 20%-95% (No Condensing)
   Storage Temperature: -15 - 60
   Operation Temperature: 0 - 40
Physical:
   Dimension (net), D x W x H (mm): 280x280x520
   Dimension (package), D x W x H (mm): 330x330x600
   Net Weight (kg): 20
   Gross Weight (kg): 25
What's in the box
   1 X NV-TI-1512 Inverter Trolley
