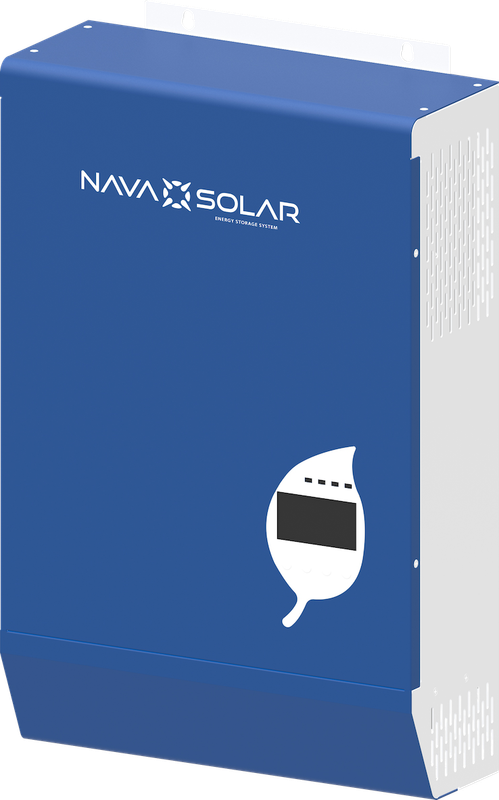

NAVASOLAR X3024 3KW 24V OFFGRID SOLAR INVERTER 60A MPPT

Description:

Inverter Specs:
Pure sine wave solar inverter
Output power factor up to 1.0
Compatible to AC mains or generator inputs
Considerable PV input types
Build-in smart solar charger (PWM/MPPT)
Battery independent design(5kW)
Auto restart while AC is recovering
Configurable AC/Solar input priority via LCD setting
Selectable input voltage range for home appliances
and personal computer loads

Key Specifications:
Model : NV-X3024
Rated Power : 3000W / 3000KVA

Input:
Voltage : 208/220/230/240VAC
Selectable Voltage Range : 170- 280 VAC (For Personal Computers) | 90- 280 VAC (For Home Appliances)
Frequency Range : 50 Hz/60 Hz (Auto sensing)

Output:
AC Voltage Regulation (Batt. Mode) : 230VAC 5 %
Surge Power : 6000W
Effiency (Peak) : 93.5%
Transfer Time : 10 ms
Waveform : Pure sine wave

Battery And AC Charger:
Battery Voltage : 24VDC
Floating Charge Voltage : 27.4VDC
Overcharge Protection : 30VDC

Solar Charger:
Maximum PV Array Power : 1500W
MPPT Range @ Operating Voltage : 30~115VDCVDC
Maximum PV Array Open Circuit Voltage : 145VDC
Maximum Solar Charge Current : 60A
Maximum AC Charge Current :60A
Maximum Charge Current : 60A

Operating Environment:
Humidity : 5% to 95% Relative Humidity(Non- condensing)
Operating Temperature : 0 C - 40 C
Storage Temperature : - 15 C - 60 C

What's in the box
1 x Nava Solar 3KW XSeries 24V Offgrid Solar Inverter 60A MPPT
