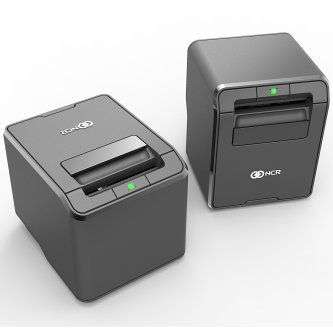

NCR 7199 Thermal Receipt Printer is a high-performance, compact printer designed for demanding retail and hospitality environments. It offers fast, reliable printing with versatile mounting and connectivity options.
🔧 Key Specifications
Print Technology: Direct thermal
Resolution: 203.2 dpi (8 dots/mm)
Print Speed:
Series I: Up to 355 mm/sec (14 inches/sec)
Series II: Up to 406 mm/sec (16 inches/sec)
Grayscale Support: 16 levels
Media Width: 80 mm (default), 58 mm (optional)
Roll Diameter: Up to 83 mm
Media Thickness: 0.060 mm ± 0.005 mm
Auto Cutter Life: Up to 2 million cuts
Print Head Life: 200 km
Mean Cycle Between Failures (MCBF): 60 million lines
Interfaces:
USB 2.0 (Type A & B)
RS-232 Serial
Optional Ethernet (10/100 Mbps)
Sensors:
Paper low
Paper out
Cover open
Jam detection
Thermal print head failure
Knife jam detection
Barcode Support: UPC-A/E, EAN/JAN-8/13, Code 39, Code 128, Interleaved 2 of 5, Codabar, Code 93, PDF417, QR Code, GS1 DataBar, among others
Power Supply: 24V DC ±5%; supports low-power consumption mode
Dimensions (Top Exit Orientation):
Width: 132 mm
Depth: 163 mm
Height: 125.8 mm
Weight: 1.6 kg (with paper roll and interface option)
Features & Benefits
Flexible Mounting: Supports countertop placement, wall mounting, and integration with NCR RealPOS terminals.
Dual Receipt Exit: Configurable for top or front receipt exit to suit various installation requirements.
User-Friendly Design: Features easy-open top cover, 'drop and go' media loading, and built-in cable management.
Visual Indicators: Multi-colored LEDs provide visual feedback for error correction and status
