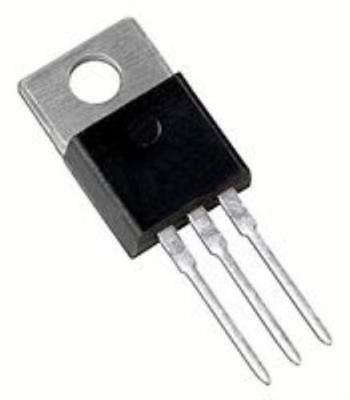

NDP6020P MOSFET P-CH FSC 20V 24A TO-220
These devices are particularly suited for low voltage applications such as automotive, DC/DC converters, PWM motor controls, and other battery powered circuits where fast switching, low in-line power loss, and resistance to transients are needed.
Features:
Drain-Source Voltage (VDS): -20V
Maximum Continuous Drain Current (ID): -24A
Gate Threshold Voltage (VGS): -8 to 8V
Part NO. : NDP6020P
Package : TO-220
Description : MOSFET P-CH 20V 24A TO-220
FET Type : MOSFET P-Channel, Metal Oxide
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) : @ 25°C 24A
Rds On (Max) @ Id Vgs : 50 mOhm @ 12A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) @ Vgs : 35nC @ 5V
Input Capacitance (Ciss) @ Vds :1590pF @ 10V
Power - Max : 60W
Mounting Type : Through Hole
