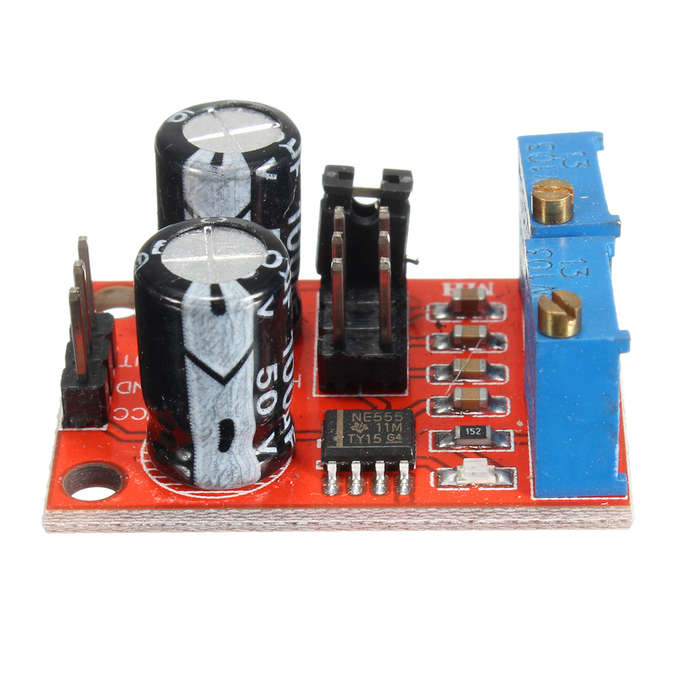

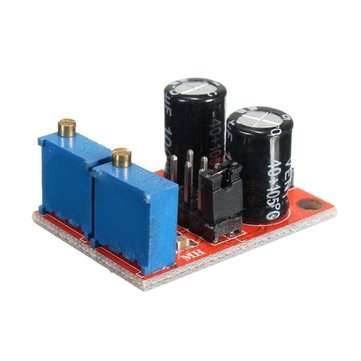

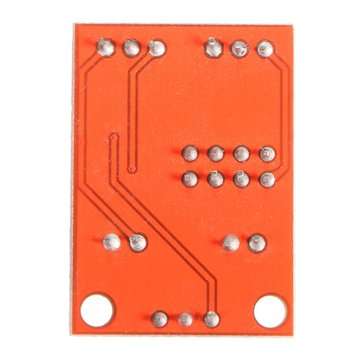

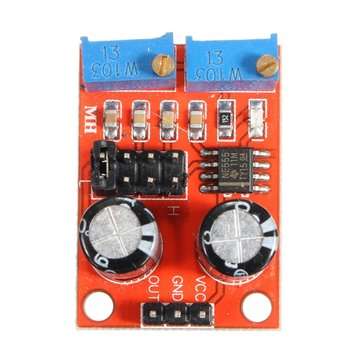

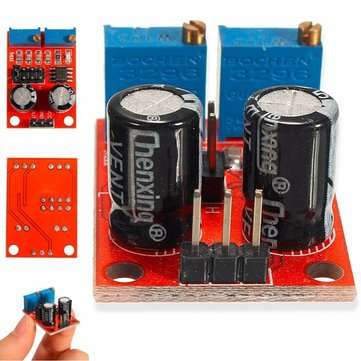

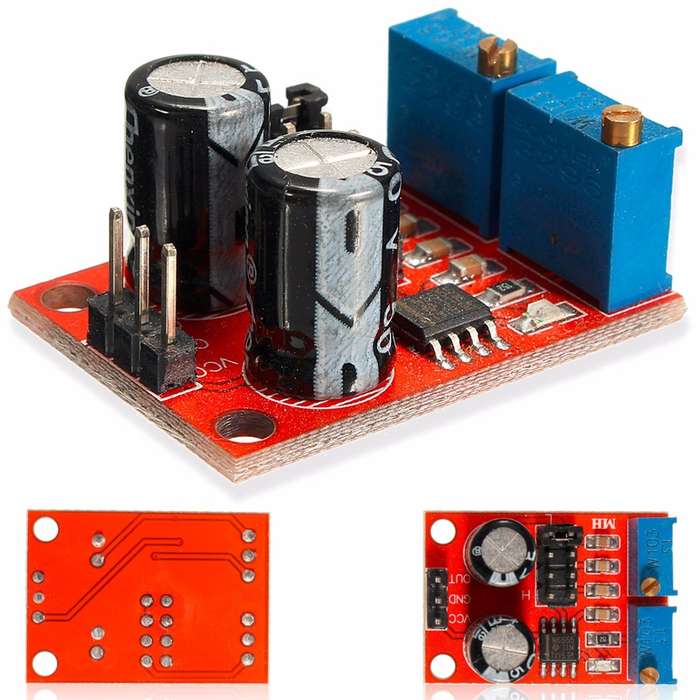

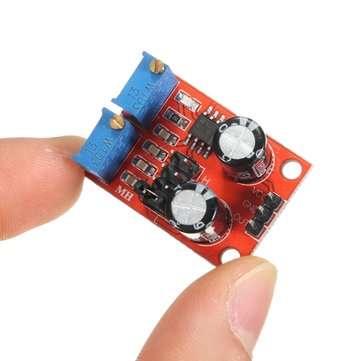

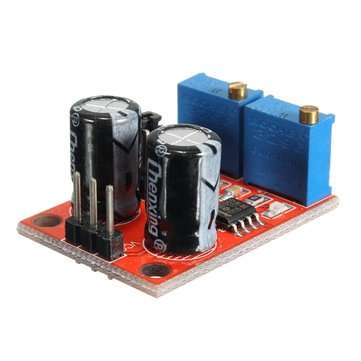

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator Stepper Motor Driver
New
R335.00
Closed
11 May 24 00:07
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Returns
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Bob Shop ID
612382070
Features:
1. As a square wave signal generator,generates a square wave signal used for experimental development.
2. Used to drive a stepper motor for generating a square wave drive signal.
3. Generate adjustable pulse for MCU.
4. Generate adjustable pulse,to control circuitry associated.

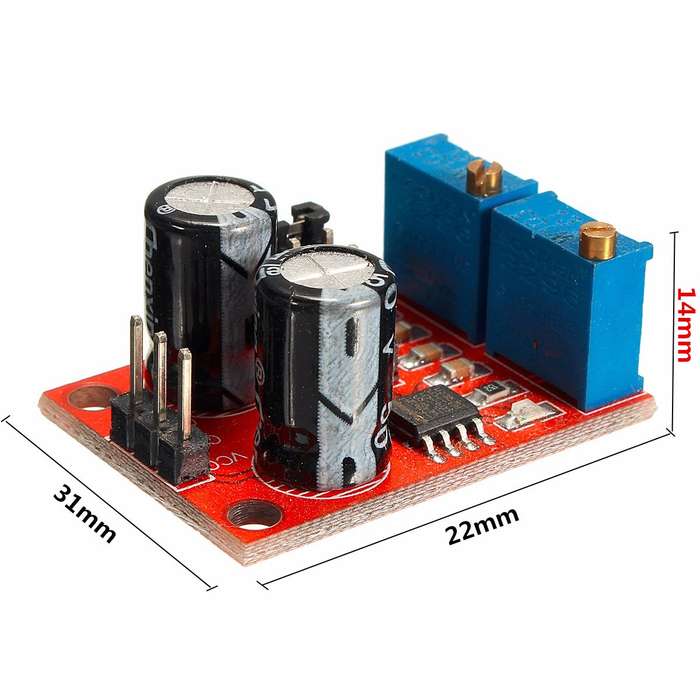

5. Size: 31mm x 22mm
6. Main chip: NE555
7. Input Voltage: 5V-15V DC. when power supply is 5 V , the output current can be 15 MA around; when 12V power supply, the output current can 35 MA around
8. Input current: >=100 MA
9. Output amplitude: 4.2V V-PP to 11.4V V-PP. (Different input voltage, the output amplitude will be different)
10. Maximum output current: >=15MA (5V power supply, V-PP greater than 50%), >=35MA (12V power supply, V-PP greater than 50%)
11. Output with LED indication(low level ,LED will on; high level,LED will off;low frequency, the LED flashes)
12. The output frequency range is selectable:
LF file: 1Hz ~ 50Hz
IF file: 50Hz ~ 1kHz
High-frequency file: 1KHz ~ 10kHz
HF file: 10kHz ~ 200kHz
13.The output duty cycle can fine-tune;duty cycle and frequency is not separately adjustable;adjusting the duty cycle will change the frequency
Package included:
1 x NE555 Pulse Frequency Duty Cycle Adjustable Module
?
,
,
1. As a square wave signal generator,generates a square wave signal used for experimental development.
2. Used to drive a stepper motor for generating a square wave drive signal.
3. Generate adjustable pulse for MCU.
4. Generate adjustable pulse,to control circuitry associated.
5. Size: 31mm x 22mm
6. Main chip: NE555
7. Input Voltage: 5V-15V DC. when power supply is 5 V , the output current can be 15 MA around; when 12V power supply, the output current can 35 MA around
8. Input current: >=100 MA
9. Output amplitude: 4.2V V-PP to 11.4V V-PP. (Different input voltage, the output amplitude will be different)
10. Maximum output current: >=15MA (5V power supply, V-PP greater than 50%), >=35MA (12V power supply, V-PP greater than 50%)
11. Output with LED indication(low level ,LED will on; high level,LED will off;low frequency, the LED flashes)
12. The output frequency range is selectable:
LF file: 1Hz ~ 50Hz
IF file: 50Hz ~ 1kHz
High-frequency file: 1KHz ~ 10kHz
HF file: 10kHz ~ 200kHz
13.The output duty cycle can fine-tune;duty cycle and frequency is not separately adjustable;adjusting the duty cycle will change the frequency
Package included:
1 x NE555 Pulse Frequency Duty Cycle Adjustable Module
?
, ,
