NEJE B30635 500MW 405nm Laser Engraver Module Kits NEJE B30635 500MW 405nm Laser Engraver Module Kits NEJE B30635 500MW 405nm Laser Engraver Module Kits NEJE B30635 500MW 405nm Laser Engraver Module Kits NEJE B30635 500MW 405nm Laser Engraver Module Kits NEJE B30635 500MW 405nm Laser Engraver Module Kits NEJE B30635 500MW 405nm Laser Engraver Module Kits
NEJE B30635 500MW 405nm Laser Engraver Module Kits NEJE B30635 500MW 405nm Laser Engraver Module Kits NEJE B30635 500MW 405nm Laser Engraver Module Kits NEJE B30635 500MW 405nm Laser Engraver Module Kits
NEJE B30635 500MW 405nm Laser Engraver Module Kits
+3

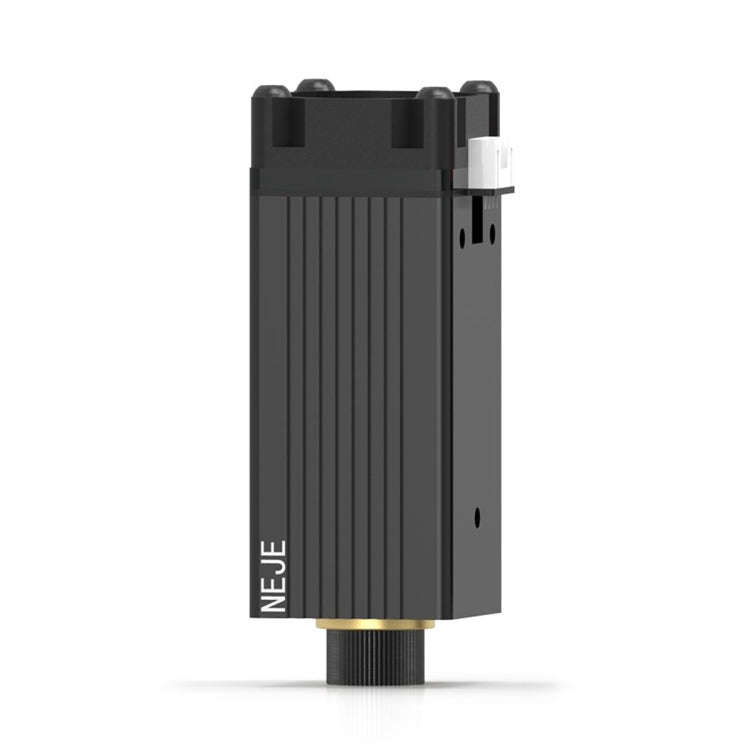

NEJE B30635 500MW 405nm Laser Engraver Module Kits

10 available / new
R2,169.14
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
EDA0035536
Bob Shop ID
628963127
1. Can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.
2. Original laser diodes, good-quality, Ensure service life!
3. Built-in driver board, 20mm threaded copper core with thermal grease compound, Temperature sensor,NEJE factory 48 hours 100% power aging test, Ensure long time working!

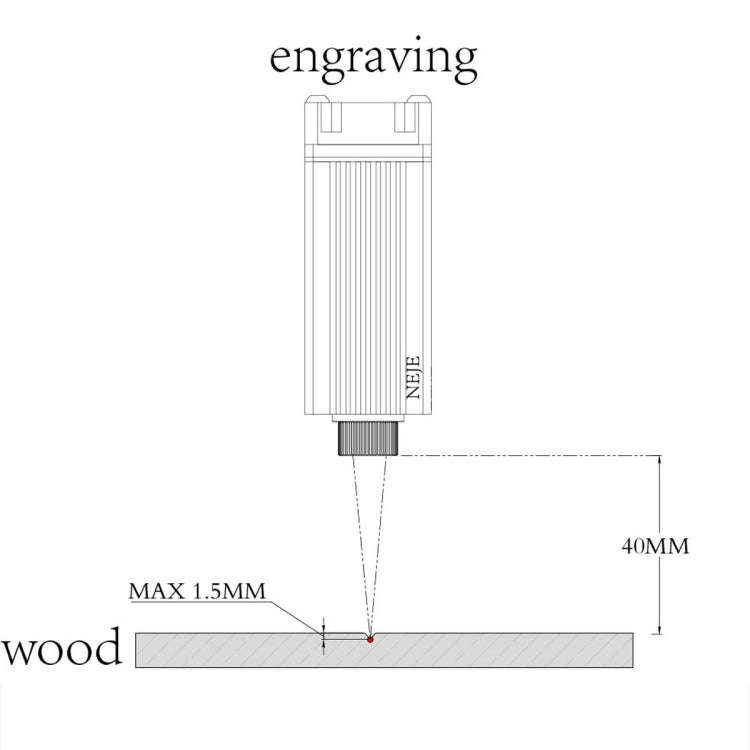

4. Clear focus lens, not stray light, adjustable focal length.
5. Can carving MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam paper, anodized aluminum, etc.(Not suitable for iron or other metal).

Specification
1. Heatsink Material: Aircraft Aluminum + Brass Shell
2. Laser diode: sharp 350MW 5.6mm laser diode (The maximum power 405nm 5.6mm laser diode)
3. LD current: 350mA
4. Luminous Color: Blue
5. Section Size: 30mm x 30mm
6. Cooling Mode: 20mm copper core + Heat Sink Groove+ Thermal silicone grease + 10000 rpm cooling fan

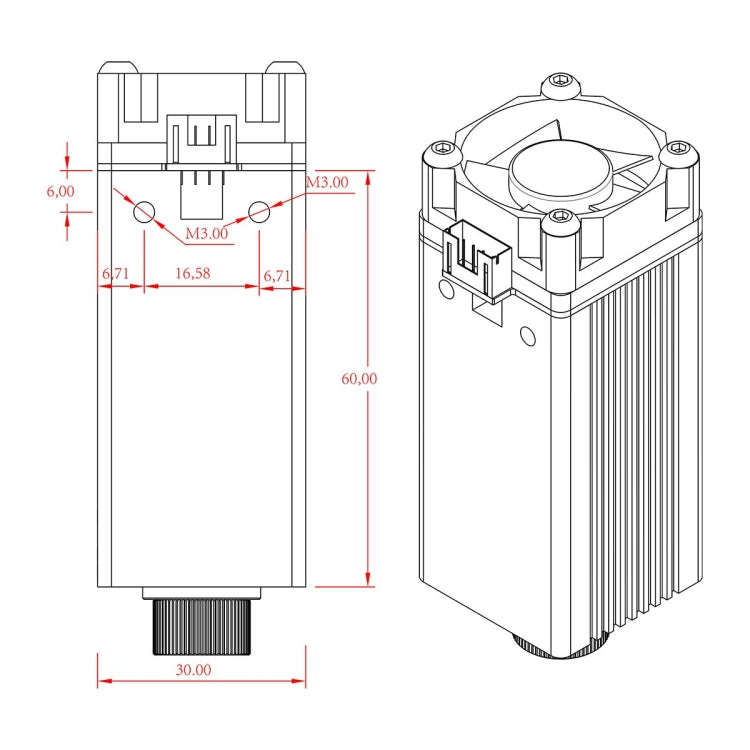

7. Dimension: 60 x 30 x 30mm
8. Adapter Output Voltage: DC 12V 2A

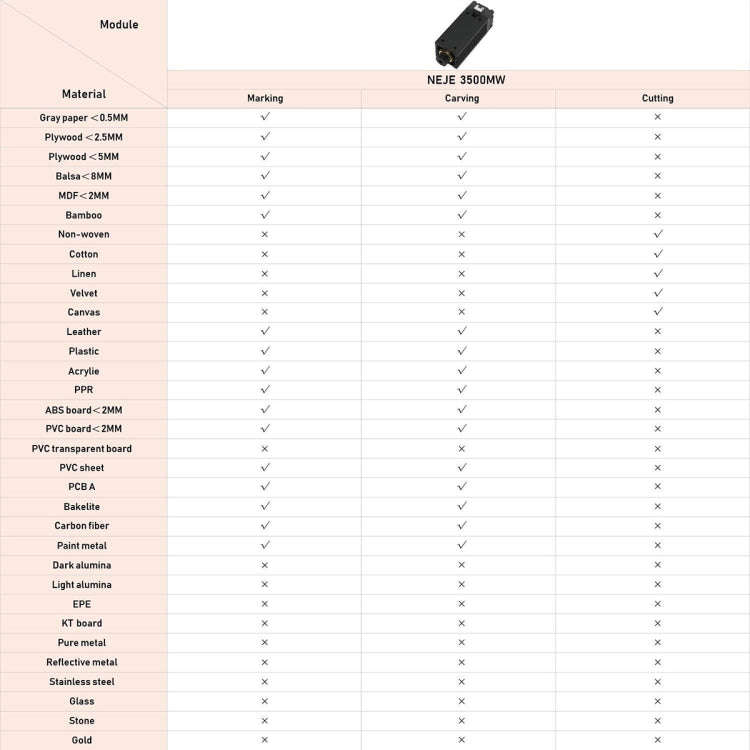

9. Can Engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
10. Can Not Engrave: Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material

Technical Parameters:
1. Module Input: 3500MW
2. Laser Output Power: 500MW
3. Wavelength: 405nm
4. Beam Shape: Dot (Focusable)
5. Working Voltage: DC 12V
6. TTL&PWM Modulation: YES, compatible with Both TTL & PWM Modulation
7. Input Voltage: DC12V
8. PWM/TTL Input: DC3.3V-12V
9. Input Interface: PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL), 2Pin+2Pin (+,-) + (PWM/TTL,-)
10. NOTE:Temperature interface can be disconnected
11. Drive Mode: External ACC
12. Safe temperature range: <70 degrees Celsius
13. Module weight: 115g ( The lighter the weight, the smaller the moving inertia, the better the performance )
14. Life Time: 20,000 hours

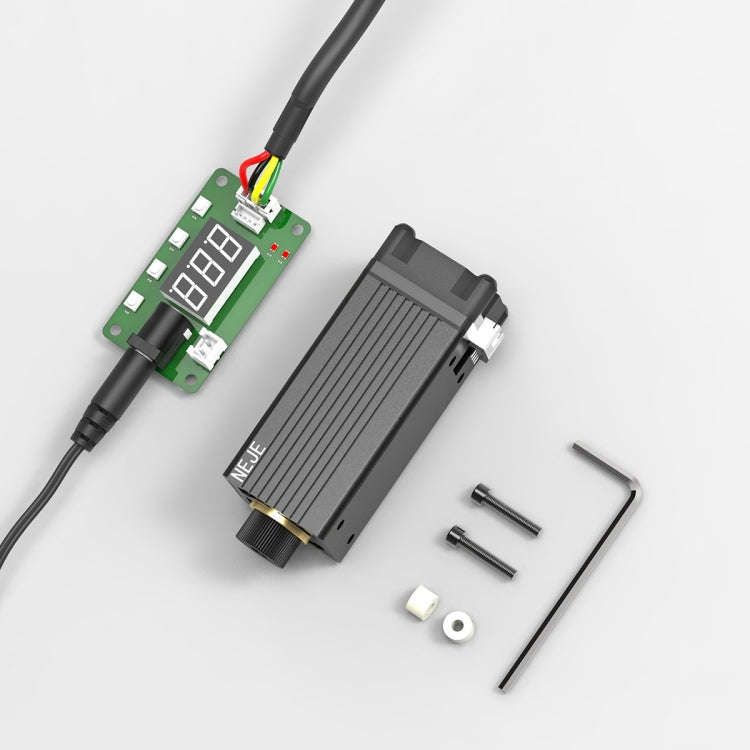

Package Included:
- 1 x Laser Engraving Module
- 2 x Screw
- 2 x ABS cushion post
-1 x L-shaped wrench
-1 x 4 Pin Cable(30cm Sports Cable)
-1 x NEJE Digital PWM Wave Pulse Signal Generator Adjustable board
