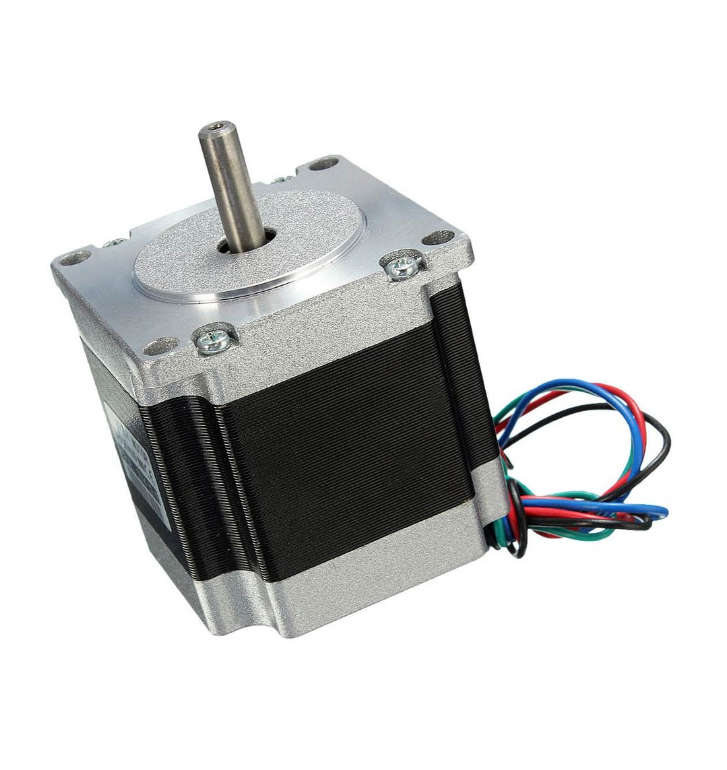

The ideal powerful option for your Ultimaker extruder, Reprap, Makerbot, and other 3D printers and CNC machines is the NEMA23 56mm 8mm Stepper Motor. This stepper motor is built to last, and its outstanding performance will make your projects reach new heights.
With four lead wires and a two-phase bipolar arrangement, this stepper motor offers accurate and dependable motion control. Its rated voltage of 24V and rated current of 3A provide the ideal power to easily handle demanding jobs. Whether you're doing complex CNC machining or quick prototyping, this motor gives you the strength and stability you need to get excellent results.
With its holding torque of 1.3 N.m., the NEMA23 56mm 8mm Stepper Motor provides remarkable holding power to secure your CNC tool or extruder firmly. This motor ensures precise and accurate movements, delivering the finest quality output every time. Say goodbye to slippage or loss of positioning.
This stepper motor's 1.8-degree step angle enables smooth operation and fine-grained control, giving your prints or machined products remarkable detail and precision. The exact movements of this motor will make your concept come to life, whether you're working on complex geometries or elaborate designs.
With a 56mm depth and an 8mm round shaft diameter, this motor is straightforward to integrate with a variety of CNC machines and 3D printers. Its small size and adaptability guarantee that it works with many well-known models, including Makerbot, Reprap, Ultimaker, and more. You may either create a custom machine or upgrade your current setup; either way, the NEMA23 56mm 8mm Stepper Motor will fit right in and give you improved performance and dependability.
Never skimp on accuracy or quality. For unmatched control and accuracy, select the NEMA23 56mm 8mm Stepper Motor for your CNC machine or extruder. With the help of this outstanding stepper motor, take your CNC and 3D printing projects to the next level.
Specifications:
- Motor Type: NEMA23
- Configuration: 2 Phase Bipolar
- Lead Wires: 4
- Rated Voltage: 24V
- Rated Current: 3A
- Holding Torque: 1.3N.m
- Step Angle: 1.8°
Additional Specifications:
- Motor Type: Hybrid Stepper Motor
- Frame Size: NEMA23 (56mm)
- Motor Length: 56mm
- Phase: 2
- Configuration: Bipolar
- Step Angle: 1.8 degrees
- Holding Torque: 1.3N.m
- Rated Voltage: 24V
- Rated Current: 3A
- Resistance per Phase: 1.2
- Inductance per Phase: 4mH
- Detent Torque: 0.22N.cm
- Rotor Inertia: 300g.cm²
- Mass: 1.1kg
Dimensions:
- Shaft Diameter: 8mm
- Shaft Length: Variable (depends on specific model)
- Motor Depth: 56mm
- Motor Width: 56mm
- Mounting Hole Size: M3
- Mounting Hole Spacing: 42mm x 42mm (center to center)
- Weight: 1.1kg
Compatibility:
- Suitable for Ultimaker extruders
- Compatible with Reprap and Makerbot 3D printers
- Ideal for various CNC machines
