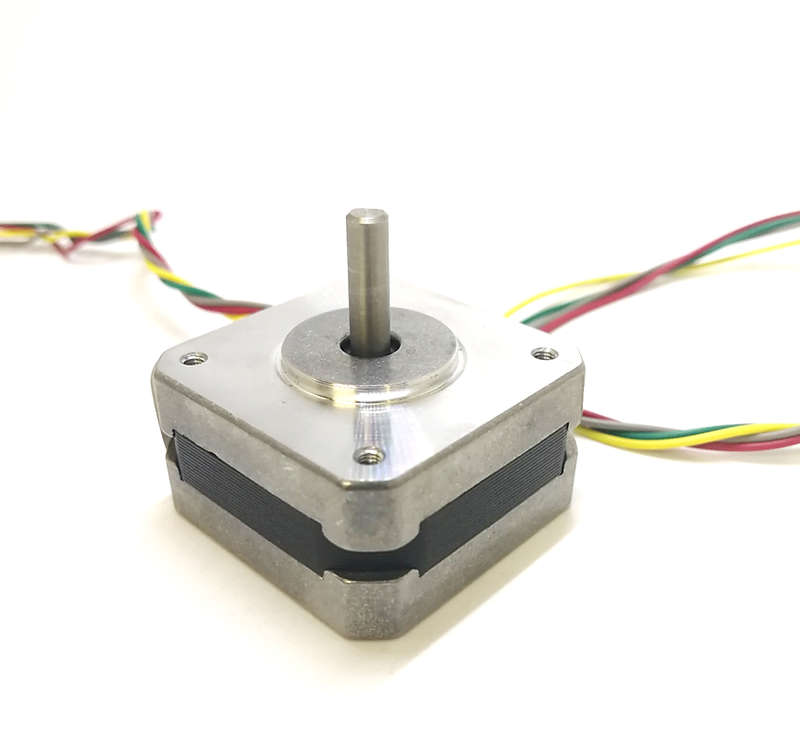

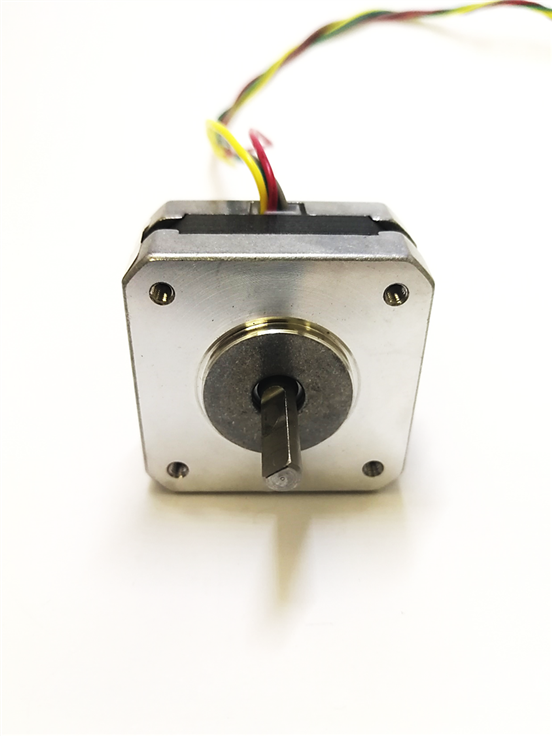

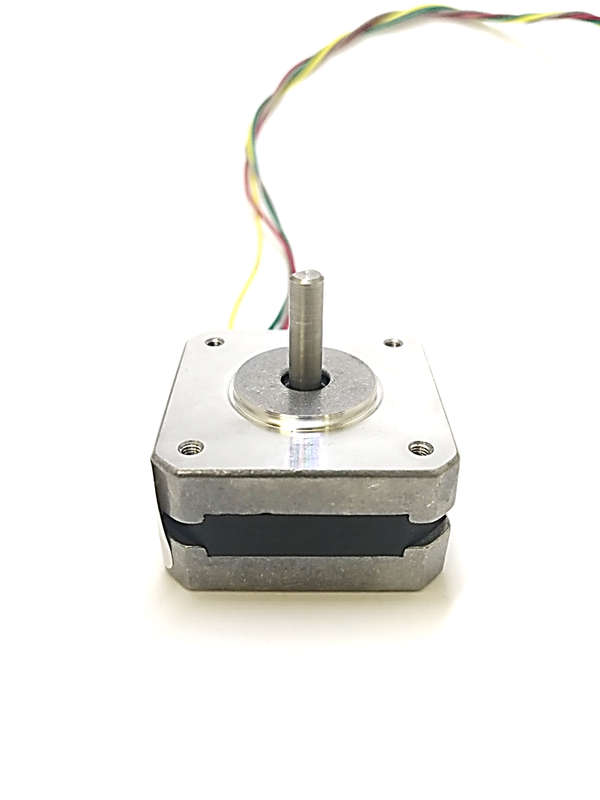

Nema17 Pancake Stepper Motor

The NEMA17 Pancake Stepper Motor (Model: 17HS0401) is a high-performance, space-saving motor designed specifically for precision applications like 3D printers and CNC machines. With a slim 22mm body and lightweight 130g design, this motor is ideal for direct drive or extruder setups where weight and space are critical, such as with the Titan Extruder using 1.75mm filament.

Despite its compact size, this motor delivers a holding torque of 120mN.m (12N-cm), making it a solid choice for high-precision applications that require reliable torque without the bulk. When used in conjunction with a geared extruder (like the Titan's 3:1 ratio), it provides excellent filament control for cleaner prints and faster retractions.

Technical Specifications:

• Motor Type: Bipolar Stepper Motor

• Size: NEMA17 (42mm x 42mm)

• Body Length: 22mm

• Shaft: 5mm diameter with flat side, 18mm length

• Rated Current: 0.8A per phase

• Holding Torque: 120mN.m (12N-cm)

• Weight: 130g

• Model Number: 17HS0401

Ideal For:

• Lightweight direct drive extruders

• Compact motion systems

• Titan-style extruder setups

• 3D printers and small CNC machines

This NEMA17 Pancake Stepper Motor is a proven, reliable choice for builders who need compact form without sacrificing performance. Perfect for your next precision motion project.
