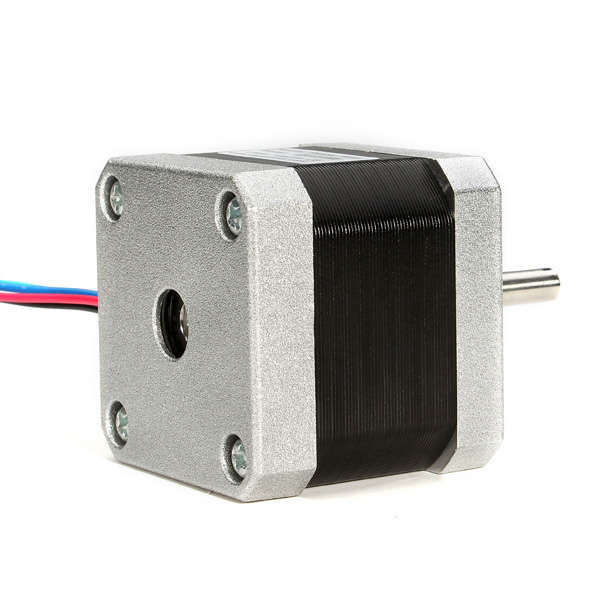

NEMA17 Two Phase Hybrid Stepper Motor 40mm 3.6kg.cm 1.68A

Name: NEMA17 Two Phase Hybrid Stepper Motor 40mm 3.6kg.cm 1.68A
SKU: 922352
Price: 261.06 ZAR
Availability: SoldOut
Rating: 5 (1 reviews)

New

10 were available

R261.06

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 1 business day. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

MacSell5980

95.83 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Product details

Condition

New

Location

South Africa

Customer ratings:

1 ratings

Product code

922352

Bob Shop ID

251085547

Desctiption:

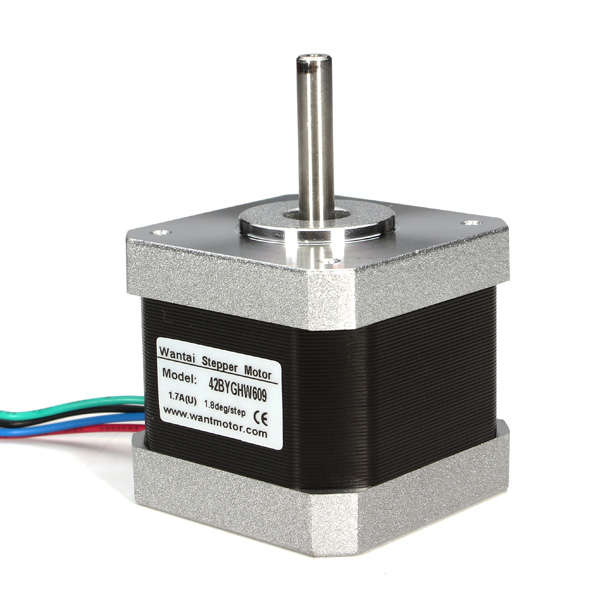

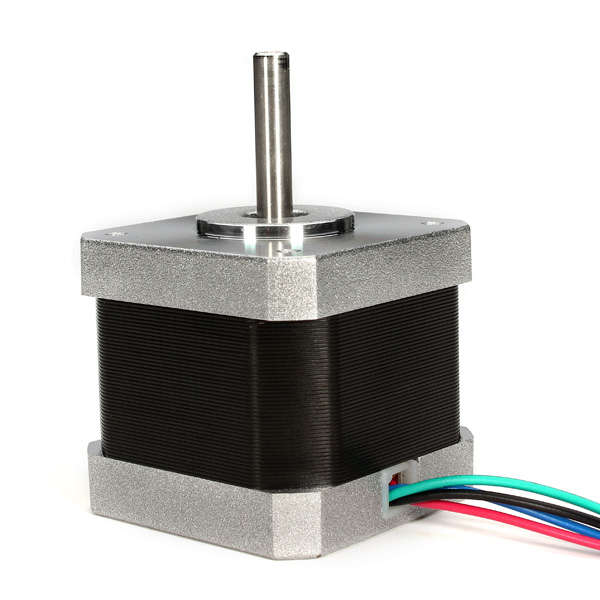

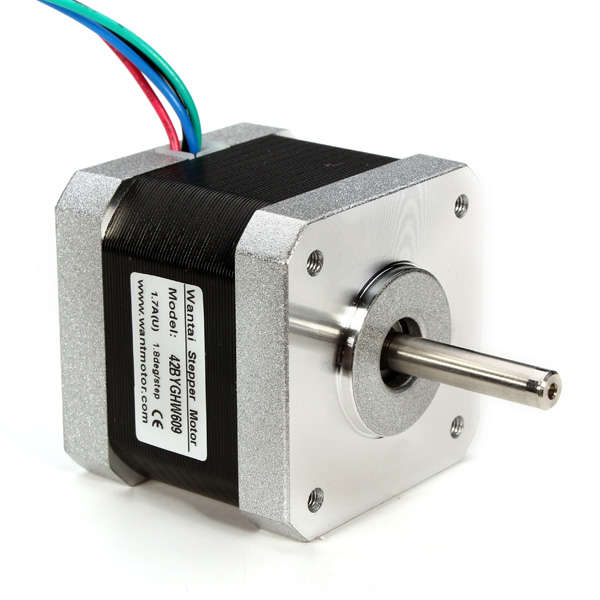

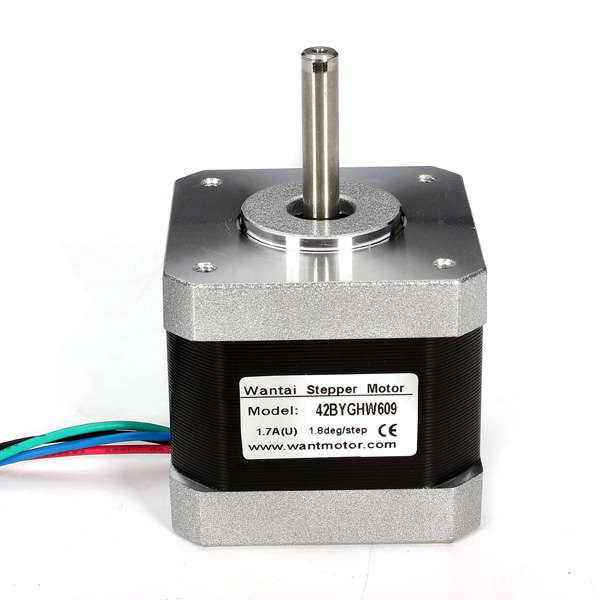

NEMA17 Two Phase Hybrid Stepper Motor 40mm 3.6kg.cm 1.68A

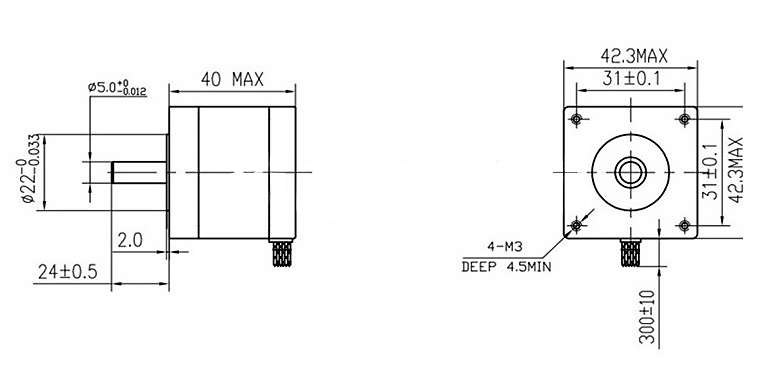

Specification:

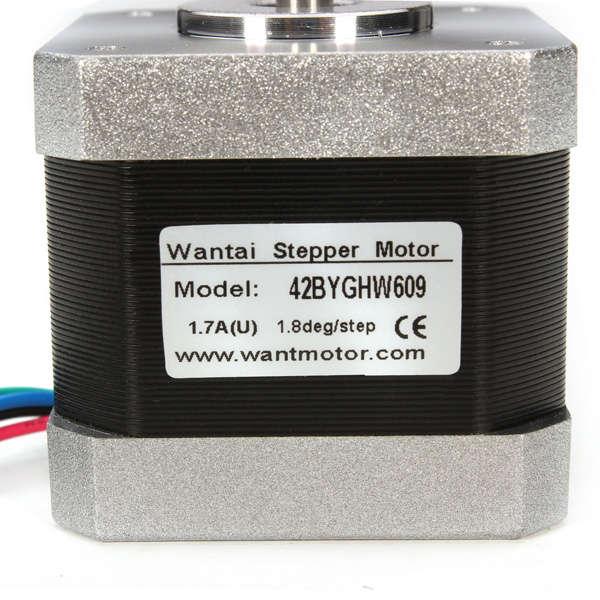

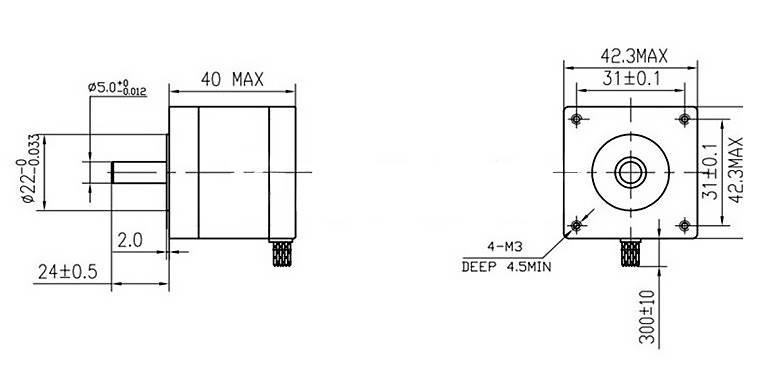

Model: 42BYGHW609
Motor length: 40mm

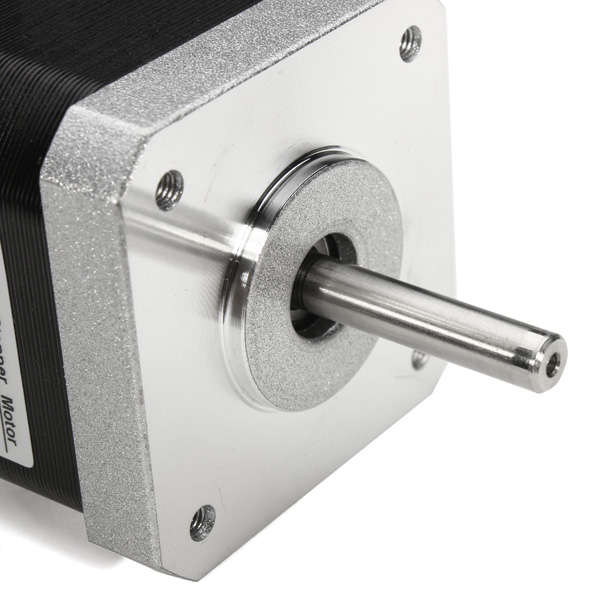

Diameter of axle: 5mm
The front shaft length: 24mm

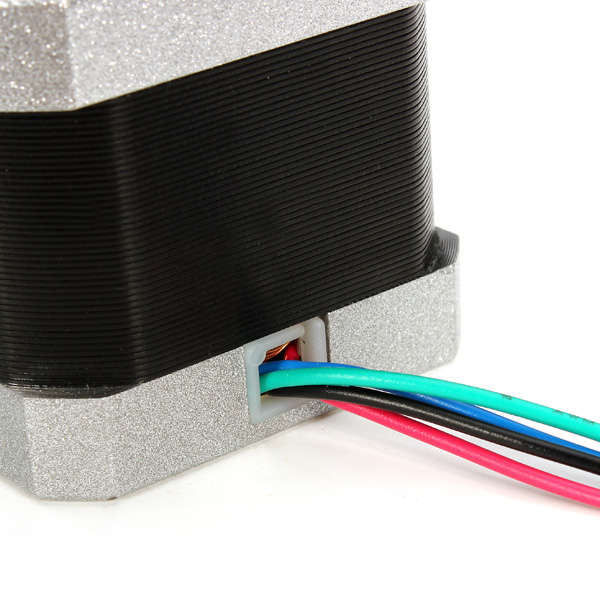

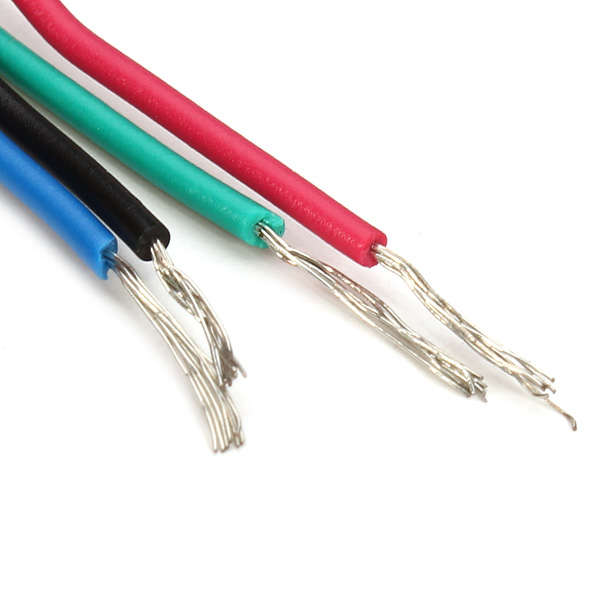

Outgoing line: 300mm (Plug is not included)

Electrical Specifications:

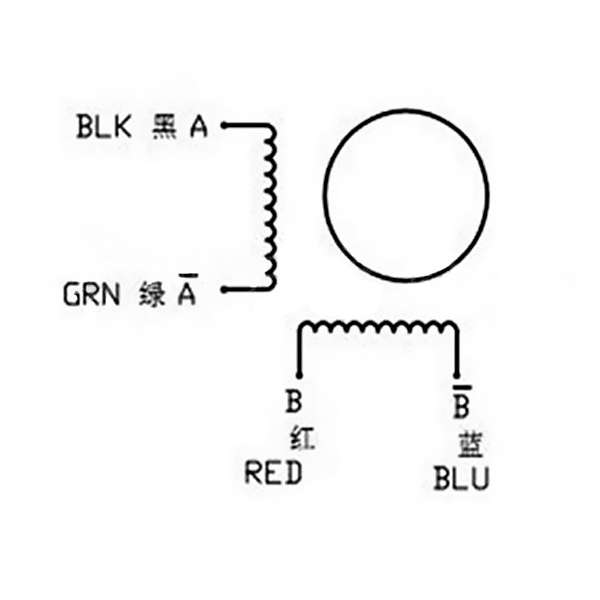

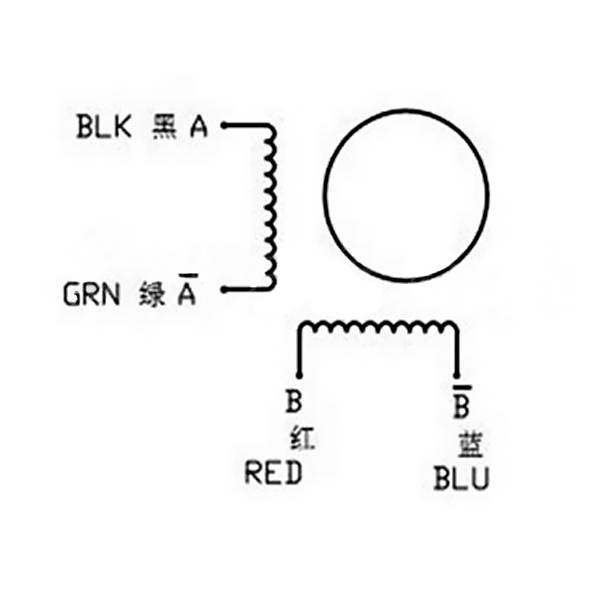

Model	Step Angle ( ° )	Motor Length (mm)	Rate Voltage (V)	Rate Current (A)	Phase Resistance (Ω)	Phase Inductance (mH)	Holding Torque (kg.cm)	Lead Wire (NO.)	Detent Torque (g.cm)	Motor Weight (KG)
42BYGHW609	1.8	40	3.4	1.68	1.65	3.2	3.6	4	150	0.28

General Specifications:

Step Accurency	Temperature RIse	Ambient Temperature Range	Insulation Resistance	Dielectric Strength
±5%	80¿¿¿ Max.	20 ¿¿¿ ~+50¿¿¿	100MΩ Min.50V DC	500V AC 1minute

Features:
High Start Speed.
Offline command input terminal.
High holding torque at high speed.
Average current control, 2-phase sinusoidal output current drive.
A stepper motor is an electric motor that is able to create sharp movements.
It is widely used in 3D printer, precision telescope, pick and place machines, linear actuators,etc.

Package Included:
1x Stepper Motor
