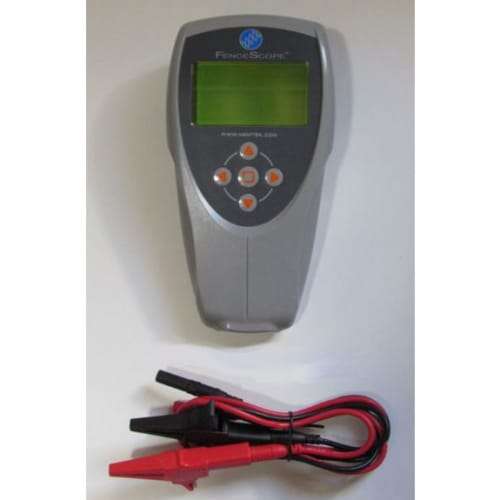

Nemtek Fence Scope Electric Fence Multitool

Helping you diagnose electric fence faults and optimize your electric fence installation.

Four User Selectable Modes Of Operation
• Fence Probe – quickly indicates the direction of a fault, showing the voltage and current
• Fence Energy – accurately measures the output energy (joules)
• Fence Scope – can record and display the waveform of the pulse
• Fence Noise – shows the amount of electromagnetic interference generated by the fence or energizer

Features:
• Advanced high speed 16bit microprocessor design
• Large graphic display with resolution of 128 x 64 picture elements
• Back lit display for ease of reading in low light conditions
• Audio tone frequency output varies depending on the voltage for a quick measurement
• Intelligent auto off function for non intrusive battery life extension
• Internal battery voltage measurement for precise battery status
• Simple five key user interface
• Designed for use up to 16kV
• Supplied with high quality test clips and leads
• Supplied with additional external load resistor assembly enabling characterization of an energizer at 500 Ohm
• Handy carry case available as an optional extra

Physical Specifications
Display (LCD) 128 x 64 pixels, landscape orientation, 1bit/pix colour depth
Operating Temperature -10 °C to +50 °C
Storage Temperature -20 °C to +60 °C
Battery Type 9V alkaline, 6LR6 / PP3, (17 mm x 26 mm x 48 mm)
Battery Life 50 hours typical (without using backlight)
Size 102 mm W x 50 mm H x 192 mm L
Weight 298g (with battery), 251g (without battery)
