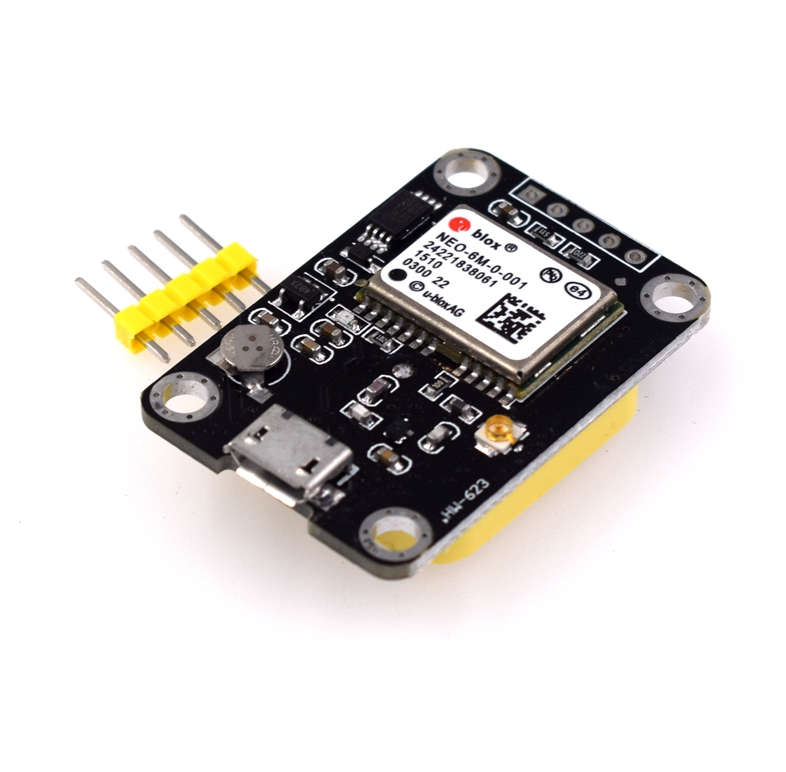

With a USB interface, you can directly use the phone data cable in the computer point of view positioning effect. USB direct connection to the computer, that is, with the host computer-owned serial port function, no external serial port module

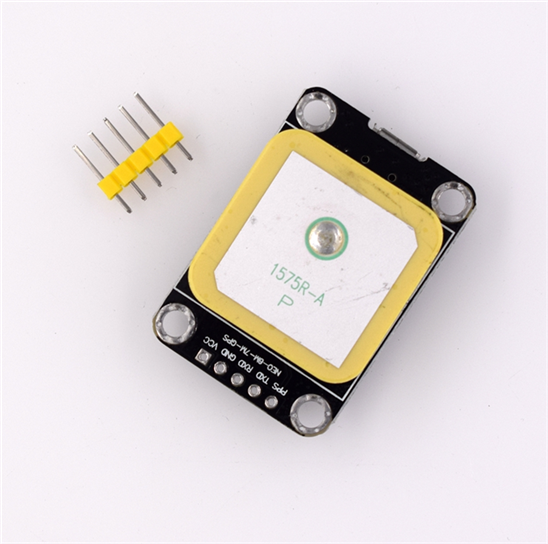

With an on-board passive ceramic antenna and passive antenna amplifier circuit, alone with better results.
With IPX interface, you can directly access IPX active antenna optionally
Increase the MAX2659 signal amplification, search signal stronger
The module comes with rechargeable battery backup, you can power-down to maintain ephemeris data
EEPROM data save for GPS record
Features:
Input voltage: 3.3-5.5V
Power consumption
Normal mode: 50 mA
Power saving mode: 30 mA
Temperature
Operating Temperature -40 C to + 85 C
Storage temperature -55 C to + 100 C
Pin descriptions and electrical connections
VCC Power input pin 3.3-5.5V
GND Power ground
RXD Module serial port to receive the foot — then single-chip serial port TXD sent
TXD Module serial send pin — then the microcontroller serial RXD reception
PPS Clock pulse output pin, connected to the red LED lights On: Normal operation, but not positioned. Blinking: The positioning was successful
Baud rate: The default baud rate for the module is 9600
