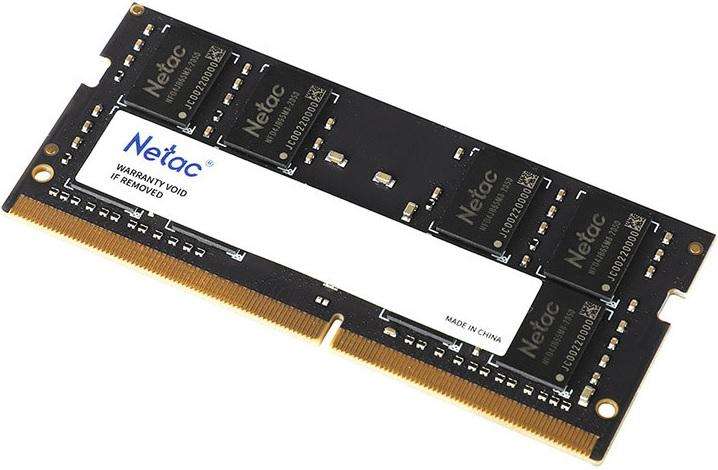

NETAC BASIC 8GB 3200 SODIMM

NETAC BASIC 8GB 3200 SODIMM - NTBSD4N32SP-08

Basic SO DDR4 260-Pin SODIMM

Capacity: 8GB

Speed: 3200MHz

Latency: 22-22-22-52 1.2V

Voltage: 1.2V

Features

Power Supply: VDD=1.2V (1.14V to 1.26V)

VDDQ :1.2V (1.14V to 1.26V)

VPP - 2.5V (2.375V to 2.75V)

VDDSPD: 2.25V to 3.6V

Nominal and dynamic on-die termination (ODT) for Data, strobe, and mask Signals

Low-Power Auto self-refresh (LPASR)

Data Bus Inversion (DBI) for Data Bus

On-die VREFDQ Generation and calibration

On-Board I2C Serial presence-detect (SPD) EEPROM

Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the Mode Register set (MRS)

Selectable BC4 or BL8 on-the-fly (OTF)

Data Bus write cyclic redundancy check (CRC)

Temperature controlled refresh (TCR)

Command/Address (CA) parity

Per DRAM Addressability is Supported

8 Bit pre-fetch

Fly-by Topology

Command/Address Latency (CAL)

Terminated control command and address bus

PCB: Height 1.18 (30.00mm)

Gold edge contacts

RoHS Compliant and Halogen-Free
