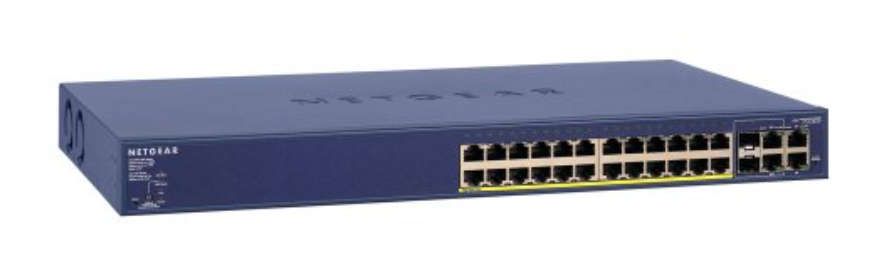

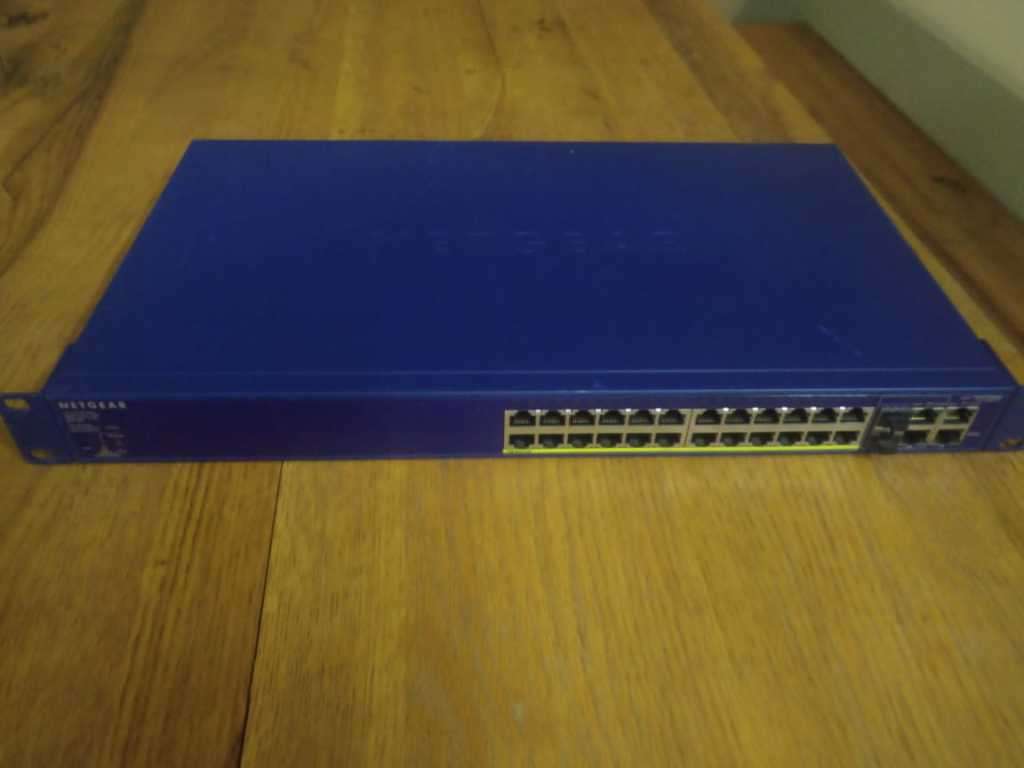

Product description Netgear 28 Port PoE Plus GB Smart MGD Switch
All ports PoE+ with up to 760W PoE budget Select your new network engine!
As a leading provider of network equipment for SMBs, NETGEAR understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business needs, whether in the hospitality, catering, education or retail domains.
- The GS728TPv2, GS728TPPv2, GS752TPv2 and GS752TPP Gigabit Ethernet Switches with PoE+ and 4 SFP Ports join the NETGEAR Standalone Smart Managed Pro Switches family, adding full 24 and 48 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 190W over 24-port, or 380W over 48-port. Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 380W over 24-port, or 760W over 48-port providing more headroom.
- Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS728TPv2 supports quiet rack mounting operation with a maximum of 31dBA even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the GS728TPPv2 is rated at 35dBA, the GS752TPv2 at 38dBA and the GS752TPP at 43dBA
Specifications:
Management Features:
- Switch Type: Managed
- Switch Layer: L2/L3/L4
- Web-Based Management: Yes
Ports & Interfaces:
- Basic Switching Rj-45 Ethernet Ports Quantity: 24
- Basic Switching Rj-45 Ethernet Ports Type: Gigabit Ethernet (10/100/1000)
- Installed Sfp Modules Quantity: 4
- Usb 2.0 Ports Quantity: 1
Network:
- 10g Support: No
- Address Resolution Protocol (Arp) Entries (Max): 512
- Vlan Support: Yes
- Number Of Vlans: 256
Data Transmission:
- Switching Capacity: 56 Gbit/S
- Mac Address Table: 16000 Entries
- Latency (1 Gbps): 3.35 s
- Static Route: Yes
- Packet Buffer Memory: 1.5 Mb
Security:
- Access Control List (Acl) Rules: 100
Multicast Features:
- Multicast Support: Yes
- Multicast Mac Address Table: 512 Entries
Design:
- Rack Mounting: Yes
- Form Factor: 1u

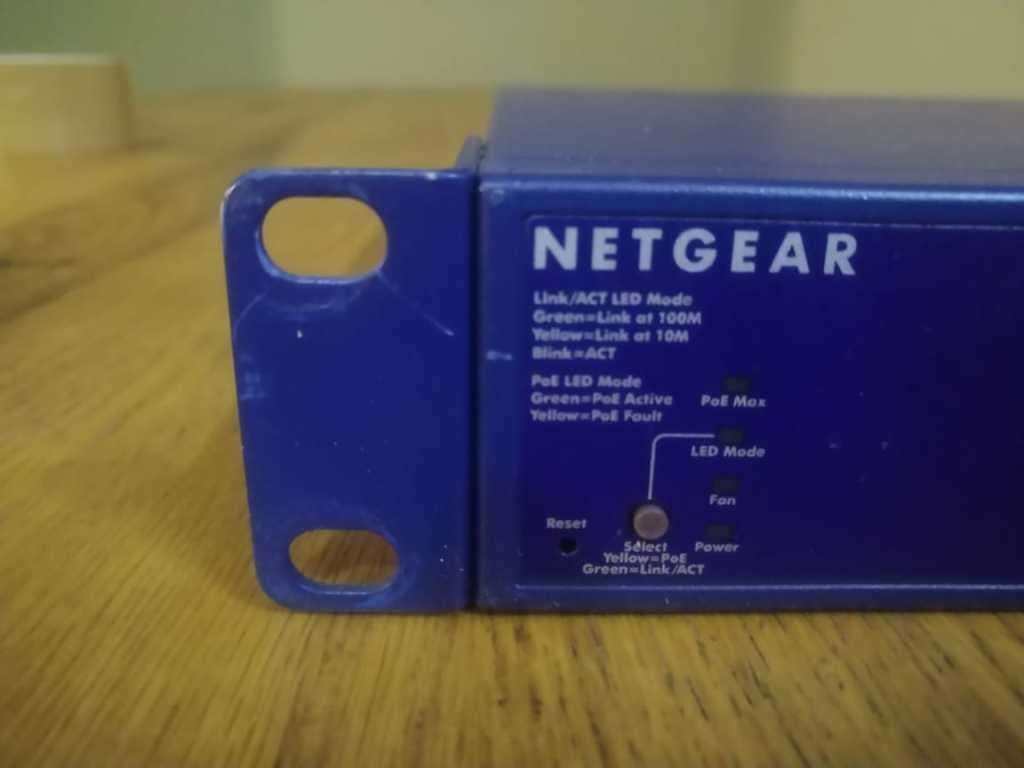

- Led Indicators: Yes
- Number Of Fans: 2 Fan(S)
Performance:
- Built-In Processor: Yes
- Processor Frequency: 700 Mhz
- Internal Memory: 128 Mb
- Flash Memory: 32 Mb
Power Over Ethernet (Poe):
- Power Over Ethernet (Poe): Yes
- Power Over Ethernet Plus (Poe+) Ports Quantity: 24
- Total Power Over Ethernet (Poe) Budget: 190 W
Weight & Dimensions:
- Width: 440 Mm
- Depth: 257 Mm
- Height: 44 Mm
- Weight: 3.73 kg
