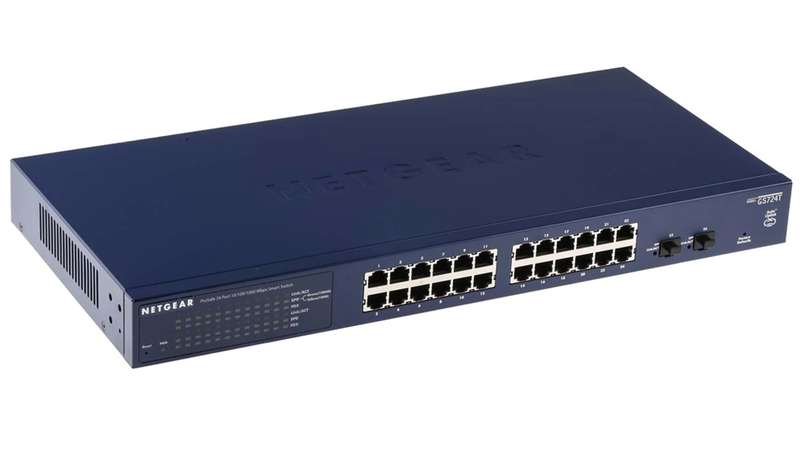

Netgear Gs724T 24 Port Gigabit Smart Switch - Refurb

Enhance your network infrastructure with this pre-owned Netgear GS724T 24-Port Gigabit Smart Switch. Designed for small to medium-sized businesses, this switch offers robust performance with 24 Gigabit Ethernet ports and advanced management features. The GS724T supports Layer 2 switching capabilities, including VLANs, QoS, and Link Aggregation, allowing for optimized network performance and security. With two additional SFP slots for fiber connectivity, it provides flexibility for expanding your network over longer distances. The switch is energy-efficient and features a fanless design for silent operation, making it ideal for office environments.

Key Features

• 24 Gigabit Ethernet Ports: Delivers high-speed connectivity for all your network devices.
• 2 SFP Slots: Supports fiber Gigabit Ethernet modules for extended network reach.
• Advanced Layer 2 Management: Includes VLANs, QoS, Spanning Tree Protocol, and Link Aggregation.
• Web-Based Configuration: Easy management through a user-friendly web interface accessible from anywhere on the network.
• Auto Uplink on All Ports: Simplifies the connection of devices without the need for crossover cables.
• Energy-Efficient Design: Supports IEEE 802.3az for reduced power consumption.
• Fanless Operation: Ensures silent performance suitable for noise-sensitive environments.
• Robust Security Features: Password access control and restricted IP access list enhance network security.

Ideal Uses

• Small to Medium-Sized Businesses: Ideal for expanding network capabilities with reliable performance.
• Educational Institutions: Suitable for school networks requiring manageable switches.
• Enterprise Edge: Perfect for connecting end devices to the core network.
• Data Centers: Provides high-speed connectivity for servers and storage devices.
• Retail and Hospitality: Supports POS systems, digital signage, and guest networks.

Specifications

• Condition: Pre-owned device with minor scratches and scuffs. Device has been extensively tested and is 100% functional.
• Manufacturer: Netgear
• Model: GS724T
• Form Factor: Rack-Mountable Switch (1U height)

Network Protocol and Standards Compatibility

• IEEE 802.3: 10BASE-T Ethernet
• IEEE 802.3u: 100BASE-TX Fast Ethernet
• IEEE 802.3ab: 1000BASE-T Gigabit Ethernet
• IEEE 802.3x: Full-duplex flow control

Interfaces

• Ports:
  • 24 x RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T (Auto Uplink on all ports)
  • 2 x SFP slots for fiber Gigabit Ethernet modules

Administrative Switch Management

• Management Protocols:
  • IEEE 802.1D Spanning Tree Protocol
  • RFC 1157 SNMP v1
  • RFC 1213 MIB II
  • RFC 1643 Ethernet Interface MIB
  • RFC 1493 Bridge MIB
• Features:
  • Jumbo Frame Support (up to 9,216 bytes)
  • IEEE 802.1Q Tag VLAN (up to 64 Static VLAN groups)
  • Port-based VLAN (up to 24 groups)
  • IEEE 802.1p (Class of Service)
  • Port-based QoS (options High/Normal)
  • Port Trunking (Manual as per IEEE 802.3ad Link Aggregation)
  • DHCP Client Function
  • Configuration Backup/Restore
  • Password Access Control and Restricted IP Access List
  • Firmware Upgradeable
  • Smartwizard Discovery Utility for auto-discovery and configuration

Performance Specifications

• Forwarding Modes: Store-and-forward
• Bandwidth: 48 Gbps
• Network Latency: Less than 20 s for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission
• Buffer Memory: 256 KB embedded memory per unit
• Address Database Size: 8,000 MAC addresses
• Addressing: 48-bit MAC address
• Mean Time Between Failure (MTBF): 115,221 hours (~13 years)

LED Indicators

• Unit: Power
• Per Port: Link, Activity, Speed, Duplex

Power Supply

• Power Consumption: 29 W maximum
• Input: 100-240VAC, 50-60 Hz universal input

Physical Specifications

• Dimensions (H x W x D): 1.7 x 17.3 x 8.1 inches (43 x 440 x 205 mm)
• Weight: 5.9 lbs (2.7 kg)

Environmental Specifications

• Operating Temperature: 32 to 104°F (0 to 40°C)
• Storage Temperature: -4 to 158°F (-20 to 70°C)
• Operating Humidity: 90% maximum relative humidity, non-condensing
• Storage Humidity: 95% maximum relative humidity, non-condensing
• Operating Altitude: Up to 10,000 ft (3,000 m)
• Storage Altitude: Up to 10,000 ft (3,000 m)

Certifications

• Electromagnetic Compliance:
  • CE mark, commercial
  • FCC Part 15 Class A
  • VCCI Class A
  • EN 55022 (CISPR 22)
  • EN 55024 (CISPR 24)
  • C-Tick
• Safety Agency Approvals:
  • UL listed (UL 1950)/cUL
  • IEC950/EN60950
  • CE mark, commercial
  • CUL 60950 (Listed)/EN60950 (Low Voltage Directive)

Warranty

• 3 Month Carry-in Warranty

What's in the Box

• Netgear GS724T 24-Port Gigabit Smart Switch
• Power Cord
