Product user manual: http://www.downloads.netgear.com/files/GDC/DGN2200M/DGN2200M_UM_04Nov11.pdf

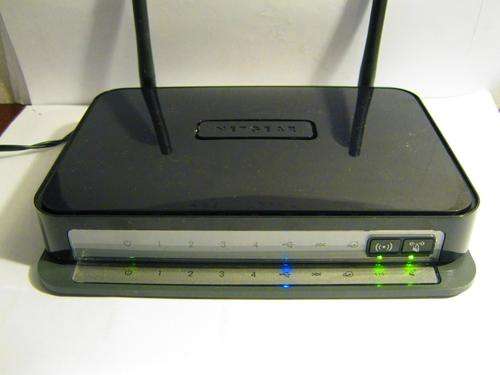

The NETGEAR N300 Wireless ADSL2+ Modem Router Mobile Broadband Edition is a full featured Wireless-N router with Integrated
ADSL2+ Modem and a failover or backup option to connect to a 3G+ Mobile Broadband network in case of DSL outage.
Internet traffic will be temporarily routed via the secondary Mobile Broadband Internet access. When normal service is restored to your primary ADSL line, all traffic is switched back.
The Mobile Broadband connection can also be used as a primary Internet connection in situations
where no DSL/cable/satellite connection exists.
When not using the backup option, the router can be used to share a USB storage
device with any computer in the network.
The solution is ideal for small and medium businesses that need the reliability of an always-on
Internet connection.
• Stay connected
— WAN-Backup with 3G+ keeps you online in case of DSL outage
— Create instant Wi-Fi hotspots where DSL is not available—satellite offices, special events, rural locations, and RVs
• Secure Connection — Stateful Packet Inspection (SPI), Virtual Private Network (VPN) Pass through, and
Denial of Service (DoS) protection
• Compatibility — Compatible with all major DSL Internet service providers (ISPs) and 3G+ USB modems
(view current lists at www.NETGEAR.com/3G)
• Broadband usage meter — Monitors Internet traffic and sends customized reports to help keep costs under control
• Guest network access — Provides separate security and access restrictions for guests using the network
•Jitter-free voice, video, and gaming — Automatic Quality of Service (QoS) for reliable Internet connections
• Built-in DSL modem — ADSL2+ modem and router combined create complete gateway for DSL Internet connection
• OpenDNS powered security and filtering — Makes your network safer, more reliable and productive
• Easy setup — Push ‘N’ Connect using Wi-Fi Protected Setup™ (WPS) provides a secured wireless Internet connection
at the push of a button
• Accessories — Convenient Universal Car Power Adapter available separately (visit www.netgear.com/carp1000 )
General:
Device Type : Wireless router - 4-port switch (integrated)
Enclosure Type : Desktop
Connectivity Technology : Wireless, wired
Data Link Protocol : Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency Band : 2.4 GHz
Data Transfer Rate : 300 Mbps
Remote Management Protocol : HTTP
Encryption Algorithm : 128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Features : Firewall protection, DoS attack prevention, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), parental control, firmware upgradable, Quality of Service (QoS), Wi-Fi Protected Setup (WPS), ReadySHARE
Compliant Standards : IEEE 802.11b, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, Wi-Fi Protected Setup
Package Contents:
• N300 Wireless ADSL2+ Modem Router
• Stand
• Ethernet cable
• ADSL phone filter and phone cable
• USB docking cable
• Power adapter
