Name: Network Cable Tester for Lan Phone RJ45 RJ11 RJ12 Cat5 Cat6 UTP Wire Test Tool
SKU: 100417
Price: 96.00 ZAR
Availability: SoldOut
Rating: 5 (2 reviews)

Network Cable Tester for Lan Phone RJ45 RJ11 RJ12 Cat5 Cat6 UTP Wire Test Tool

14 were available / new

R30.00 minimum increment

R96.00

Shipping

R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Nii84718

98.25 % Positive ratings

Buyer protection

How you're covered

Returns

Warranty Type: Dealer 30 days warranty, Buyer is responsible for return shipping costs. No claim for physical / water damage or Wear and Tear

Condition

New

Location

South Africa

Customer ratings:

2 ratings

Product code

100417

Bob Shop ID

627516652

Description:

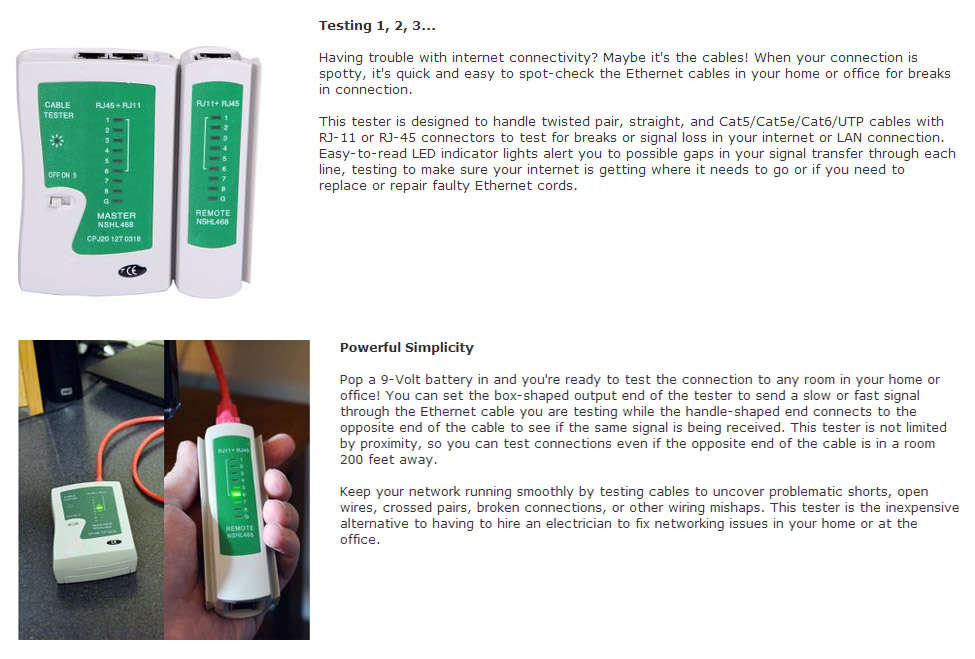

Construct your own patch cables? Test them with this!

Works with Twisted-Pair, Straight & Crossover Cables: RJ-45 & RJ-11

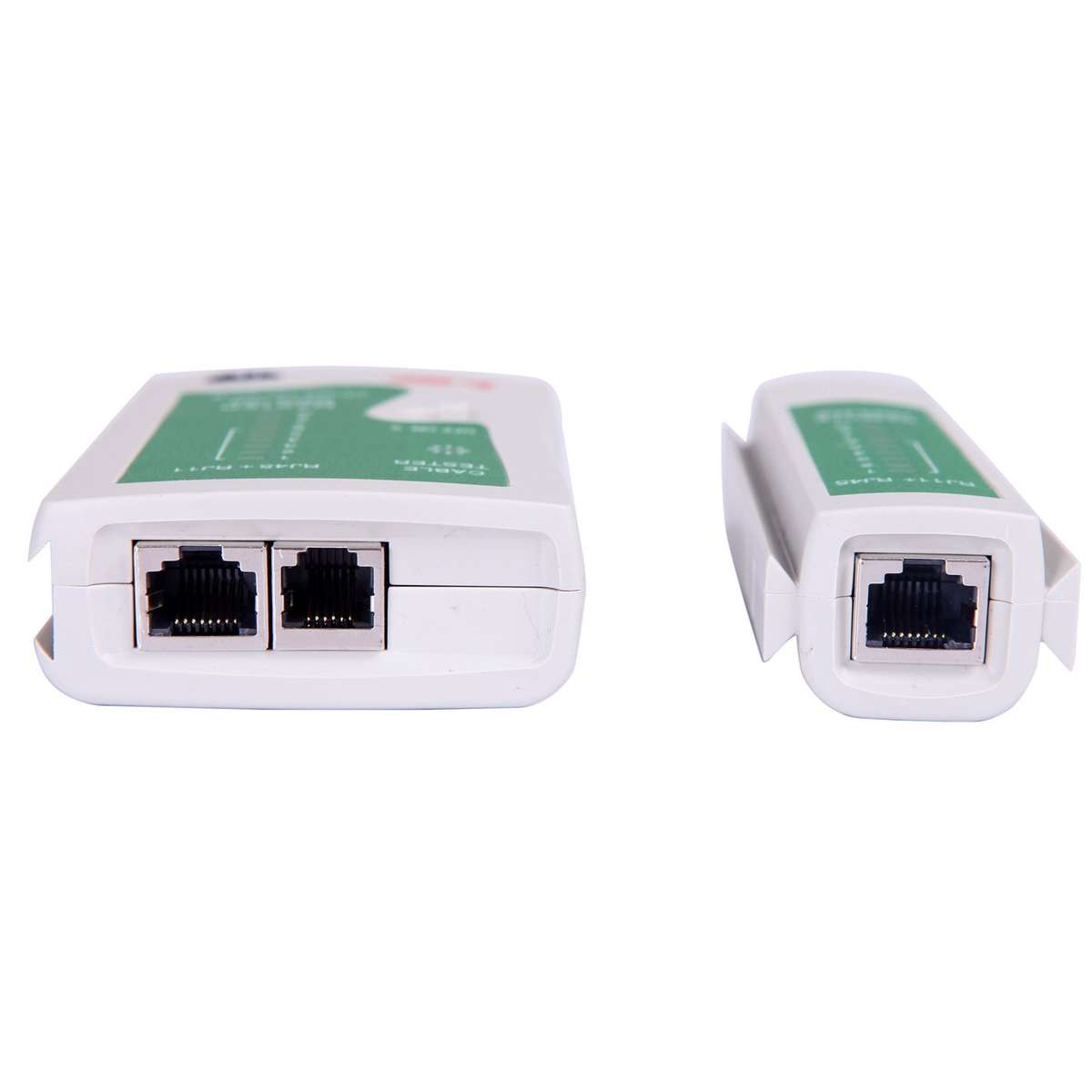

This cable tester comes apart so you can test even when the cable's ends are in different rooms

Requires one 9-volt battery (not included)

Tester detects if wires are connected correctly; Includes travel case & instruction sheet

A. Functions:

1. Can test correspondingly double-twisted cables 1, 2, 3, 4, 5, 6, 7, 8 and G, meanwhile, can judge wrong connection, short circuit and open circuit.

2. NS-468 tests RJ 11and RJ45

B. Test of double-twisted cables

Switch on the power. Put cables into both main tester and remote tester. The lights of the main tester will turn on sequently from 1 to G.

Main tester: 1-2-3-4-5-6-7-8-G

Remote tester: 1-4-3-2-5-6-7-8-G

Following are abnormal connections:

1. If one cable, for example cable NO. 3is open circuited, the two NO. 3 lights of The main tester and remote tester will not turn on.

2. If several cables are not connected, several lights will not turn on respectively. If less than two cables are connected, none of the lights is on.

3.If two ends of a cable is disordered, for example NO. 2 and NO. 4, then displays on:

Main tester: 1-2-3-4-5-6-7-8-G

in tester: 1-2-3-4-5-6-7-8-G

Remote tester: 1-4-3-2-5-6-7-8-G

4. If two cables are short circuited, neither of the corresponding lights is on of the remote tester while main tester remains unchanged. If three cables, including three, are short circuited, none of the corresponding lights is on.

C. If test patch panels or wall plate outlels, two cables which can match each other(eg110 P4 and RJ45)will be connected to the tester.

D. If test cables of the same axes, BNC turns on when the cable works.

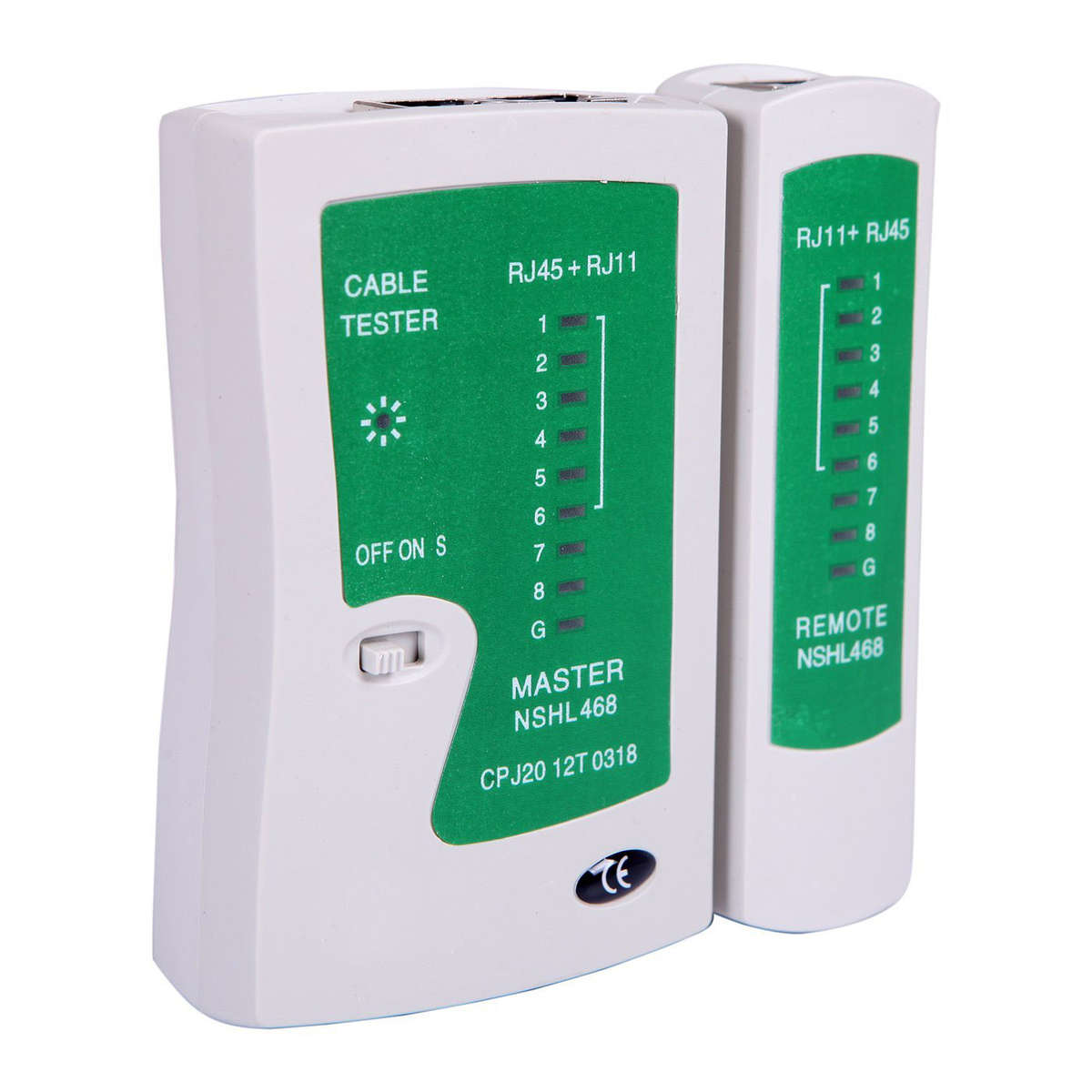

Main tester

Size: 106*68*27mm

Weight: 68g

Remote tester

Size: 106*38*27mm

Weight: 45g

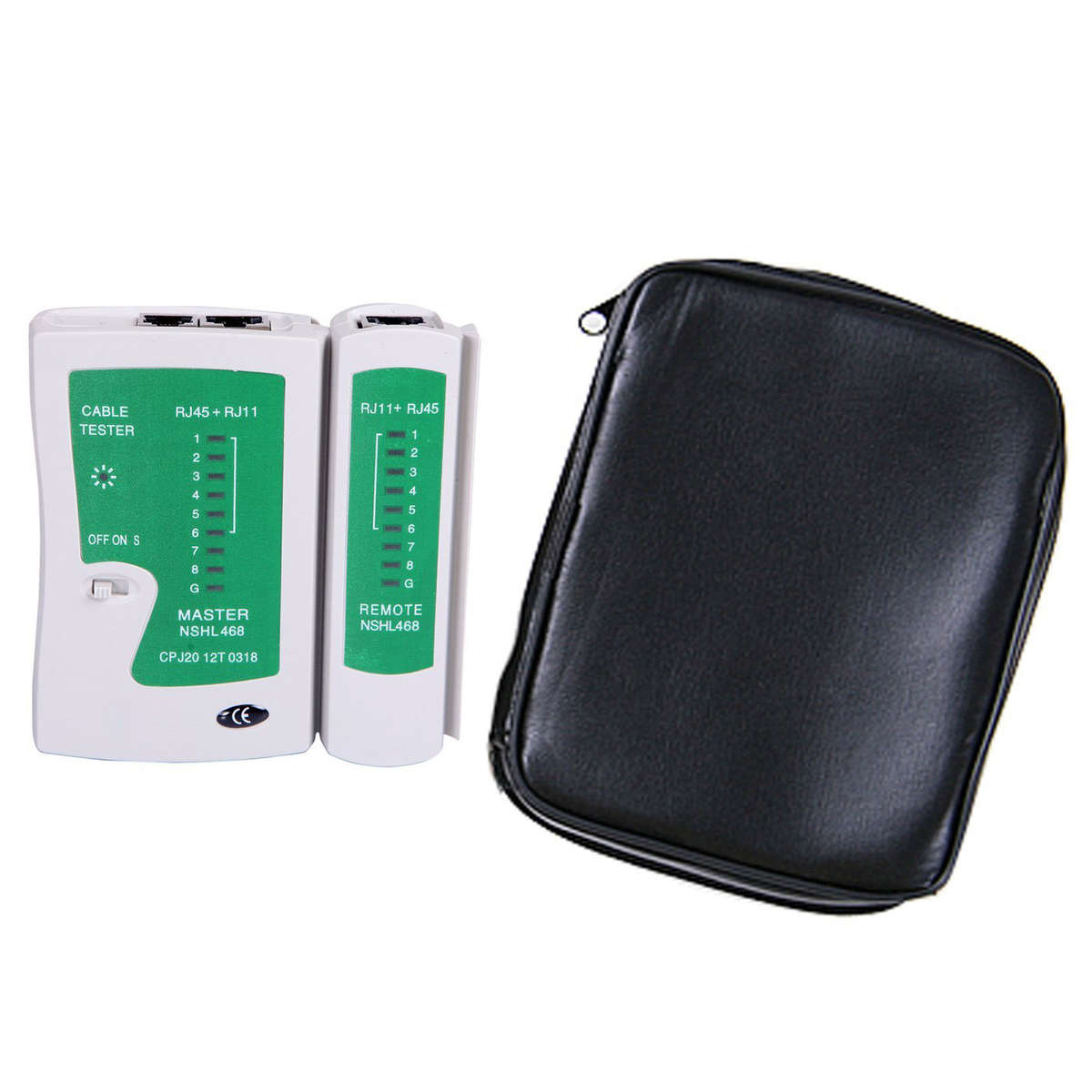

Package included:

1 x Cable Tester

1 x Leather Bag

1 x User Manual
