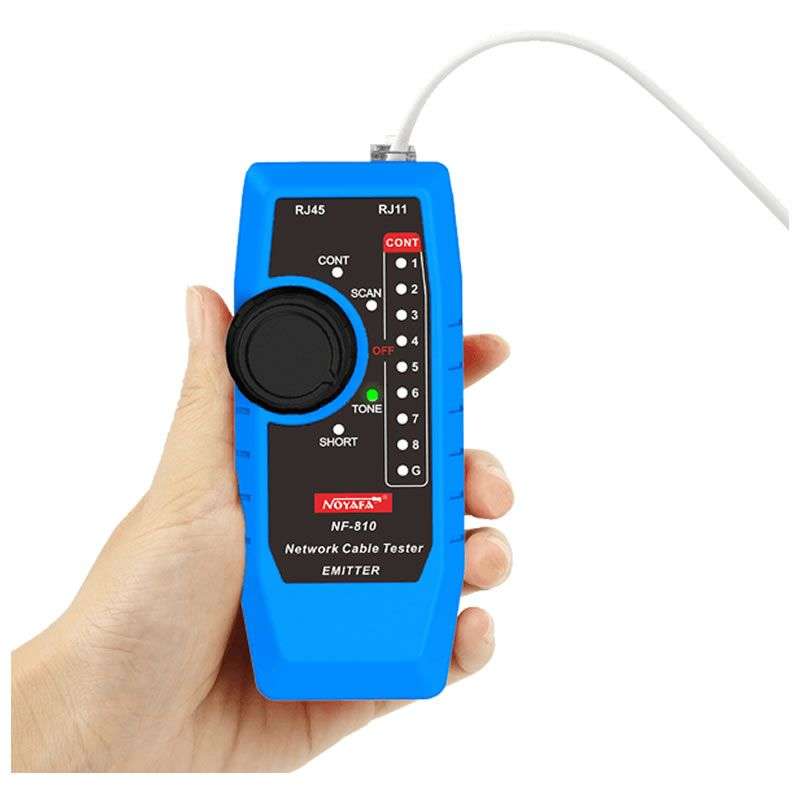

Network Cable Tester

Description;
- The cable tester can search for electronic cables, through the sound of the receiver and the yellow-green signal indicator, and the position of the target line can be accurately located.

• For RJ11/RJ15/Electronic cables. RJ11 Tracing / RJ45 Tracing / Electronic wire Tracing / PoE Tracing / Wiremap/ Against 60V / PoE Testing / TEL Testing / Lighting / Earphone.

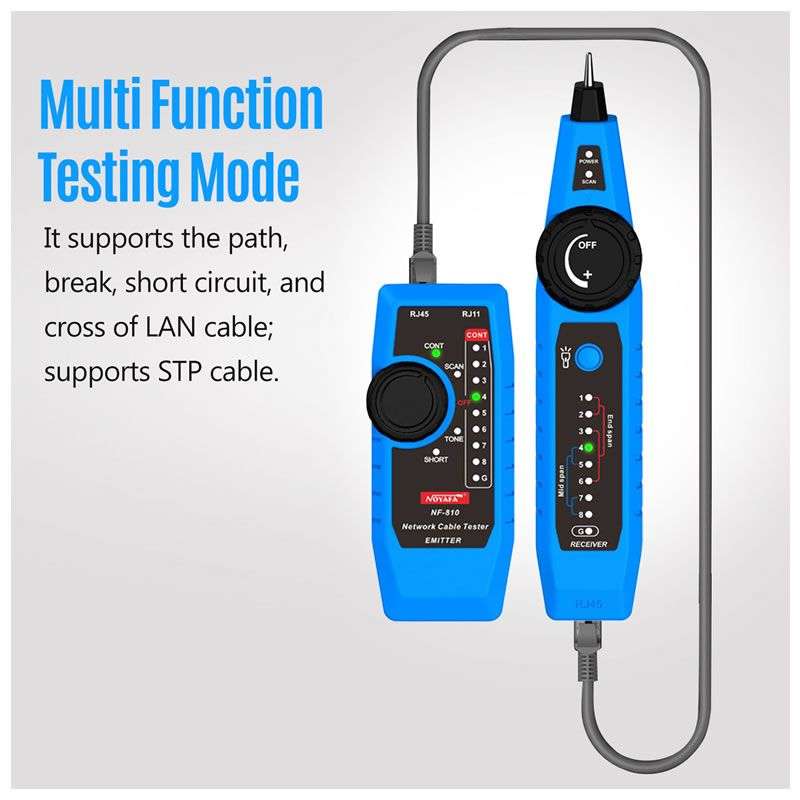

• It supports open, short, and cross of lan cable, including STP cable. It supports the power supply by the switch. D1D2 lighting means the PIN I &2 supply power. Passes RoHS, FCC, and CE compliance testing, and Noyafa is certified to the ISO 9001 standard.

Features;
- Multi-function

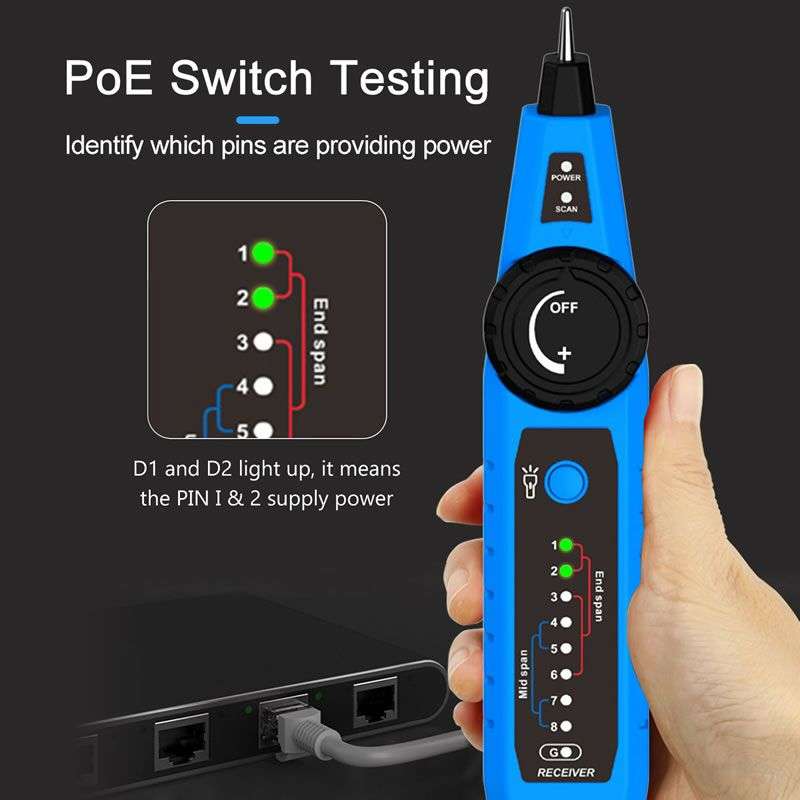

- PoE switch testing
- Wire tracing
- Telephone line status detection
- LED lighting
- Positive target line

Specifications;
- Package weight; 500g
- Package dimensions; l=14.7cm x h=22.5cm x w=4.8cm
- Power specification; 9v laminated battery
- Applicable network cable; CAT5 CAT6\telephone cable

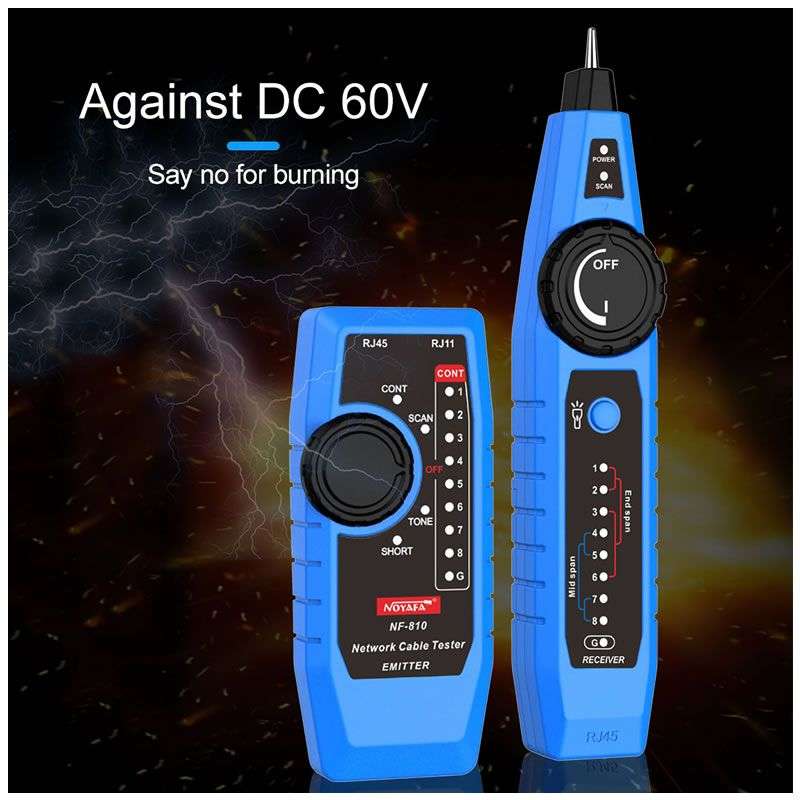

- Interface withstand voltage; 60v
- Maximum working current; <70mA
- Tracking working current;40mA
- Signal transmission distance; 1km

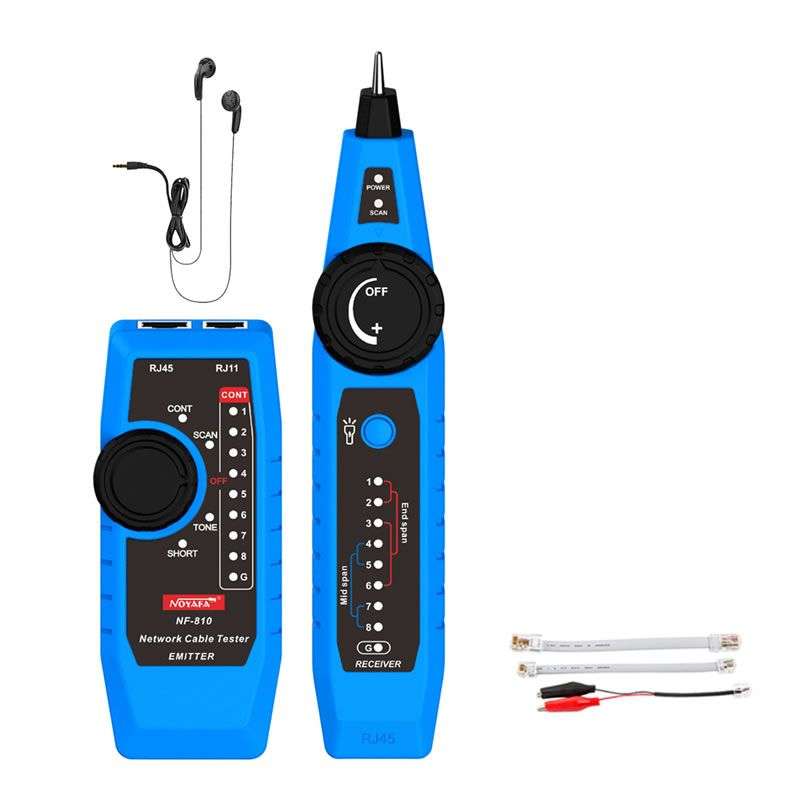

What's in the box
1 x Network cable tester
1 x Receiver
1 x Transmitter
1 x 9v laminated battery
1 x Headset
1 x Alligator clip adapter cable
1 x RJ45 adapter line
1 x RJ11 adapter line
