Network Toner & Probe Kit

The MT-7071K Included 8+1 remote units, which let you measure cable length up to 1200M (4000ft), locate and verify the cable status and troubleshoot wiring. Ideal for all installation and maintenance fields of telecommunication, networking, datacom, Audio/Video, cable TV, all-weather cabling, etc.

Cable Length Measurement up to 1200M

Measuring cable length to opens up to 1200M. Calibration accuracy: ±3%
Length measurement in feet, yard or meters
Cable length measurements without remote attached
Calibration Parameters

Can determine actual Calibration parameters with the known length of cable for cable length test
Allows setting 1-7 Calibration parameters
Wire Tracing up to 3KM

The tone and probe kit let you easily track wire directly in connection with live telecommunication equipment and router
Cable Mapping & status Indication

Display the result of the pin to pin cable mapping
Display cable status and troubleshoot wiring for continuity, shorts, opens and crossover.
Max support to 8 remote units
Non-Contact Voltage detection

Tests voltage from 90 ~ 1000V, special design to make sure the power is off before testing for circuit protection

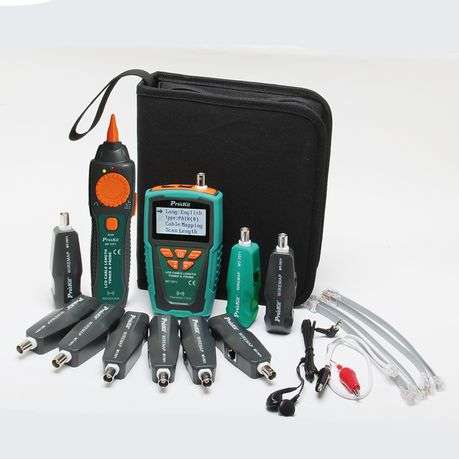

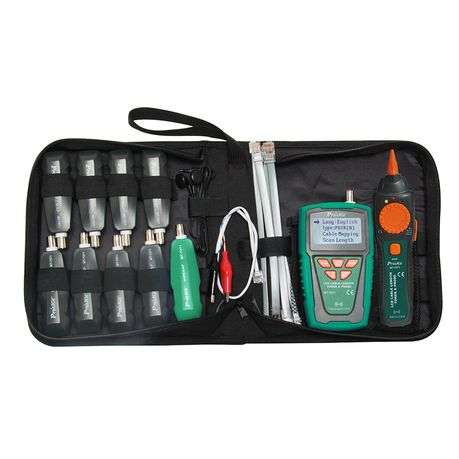

What's in the box
1 x Toner
1 x Receiver
1+8 x Remote unit
1 x RJ45 cable patch cord
1 x RJ11/12 cable patch cord
1 x Alligator clips patch cord
1 x Earphones
1 x Pouch bag
