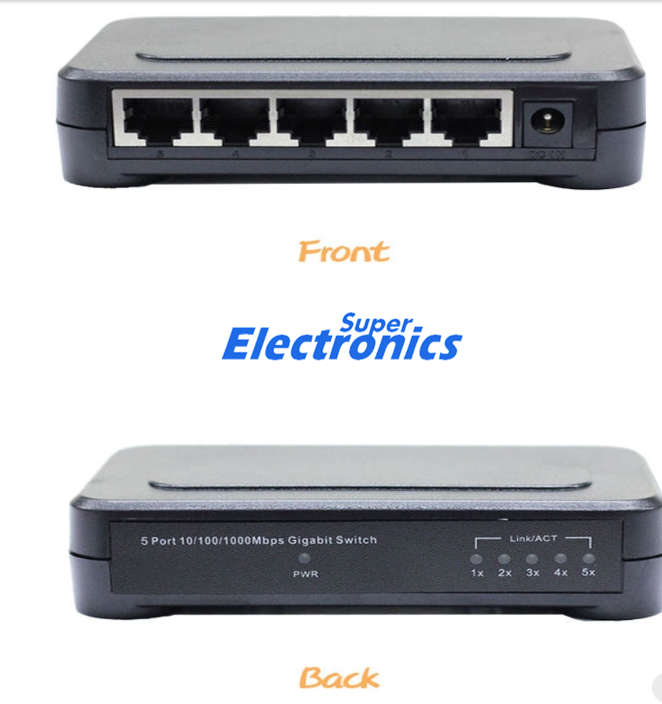

Networking Ethernet switches 5 Port 10/100mbps

Standards

IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet

protocol

CSMA/CD

Fibering and Transmitting speed

Ethernet 10Mbps (half duplex),20Mbps (full duplex); 10BASE-T:14,880pps/port
Fast Ethernet 100Mbps (half duplex),200Mbps (full duplex);

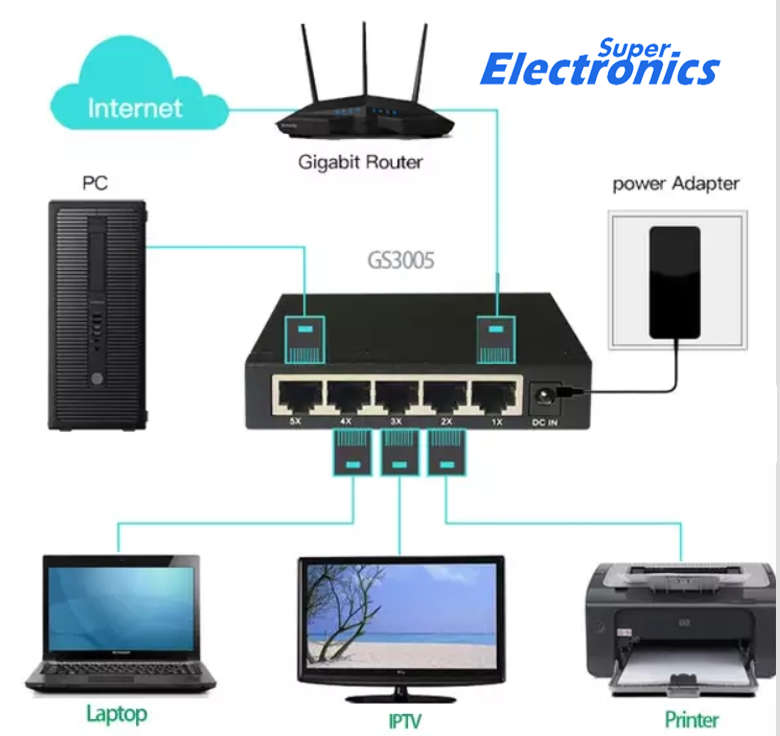

Topology

Star

Network Medium

10Base-T:Cat 3 or above Cat.3 UTP(Less than 100m)

100Base-TX:Cat 5 UTP(Less than 100m)

esber of Ports

5port 10/100 RJ45 ports

UPLINK

Any port (support Auto-MDI/MDIX function)

Transmits Method

Store-and-Forward

Temperature

Operating Temperature 0 ~40 Celsius (32 F~104 F)

Storage Temperature -40 ~70 Celsius (-40 F~158 F)

Humidity

Operating Humidity 10 ~90 percent non-condensing

Storage humidity 5 ~95 percent non-condensing

Switch capacity

10G

LED Indications

1* power LED(Power: Red)

5* port LEDs(Link/Act: Green)

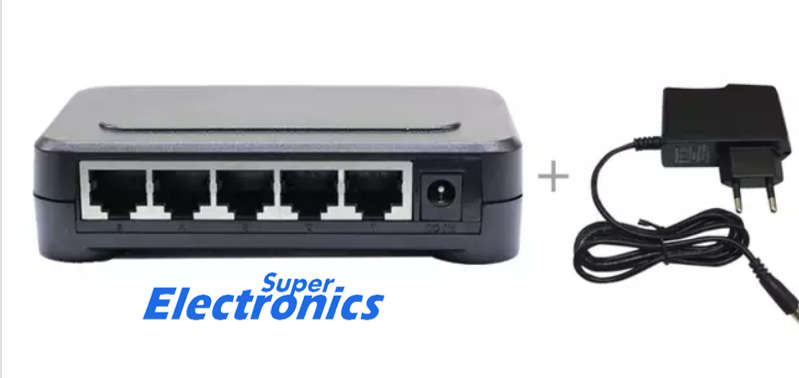

Power Supply

External Supply power adapter DC 5V1A
