available. Designed for interface with mobile devices (iOS and Android) and
braintraining and education applications. Its clear brainwave signal is based on
the TGAM, the bio-sensor chipset that revolutionized an industry. It is an excellent
introduction into the world of brain-computer interface (BCI).

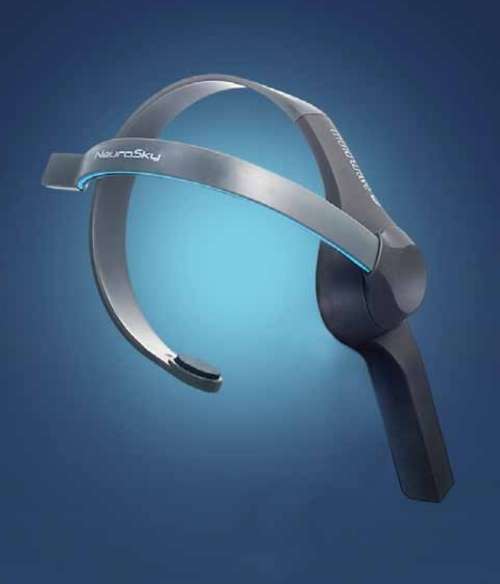

MindWave Mobile
• TGAM1 module
• Single AAA Battery (not included)
• 8-hour battery run time
• Automatic wireless pairing
• Bluetooth v3.0 Class 2 (10 meters range)
• Static Headset ID (headsets have a unique ID for pairing purposes)
• iOS and Android support
Headset // MindWave Mobile Features + Technical Specifications
ThinkGear™ Head Set Partner Products
Copyright NeuroSky Inc. 2012
Measures
• Raw brainwave signal
• Processing and output of EEG power spectrums (Alpha, Beta, etc.)
• Processing and output of NeuroSky proprietary eSense meter for Attention, Meditation, Blink and future meters
• EEG/ECG signal quality analysis (can be used to detect poor contact and whether the device is off the head)
Physical
• Weight: 90g
• Sensor arm up: height: 225mm x width: 155mm x depth: 92mm
• Sensor Arm down: height: 225mm x width: 155mm x depth: 165mm
*headset only*
To be used with compatible products from Neurosky on computer or apps from playstore
