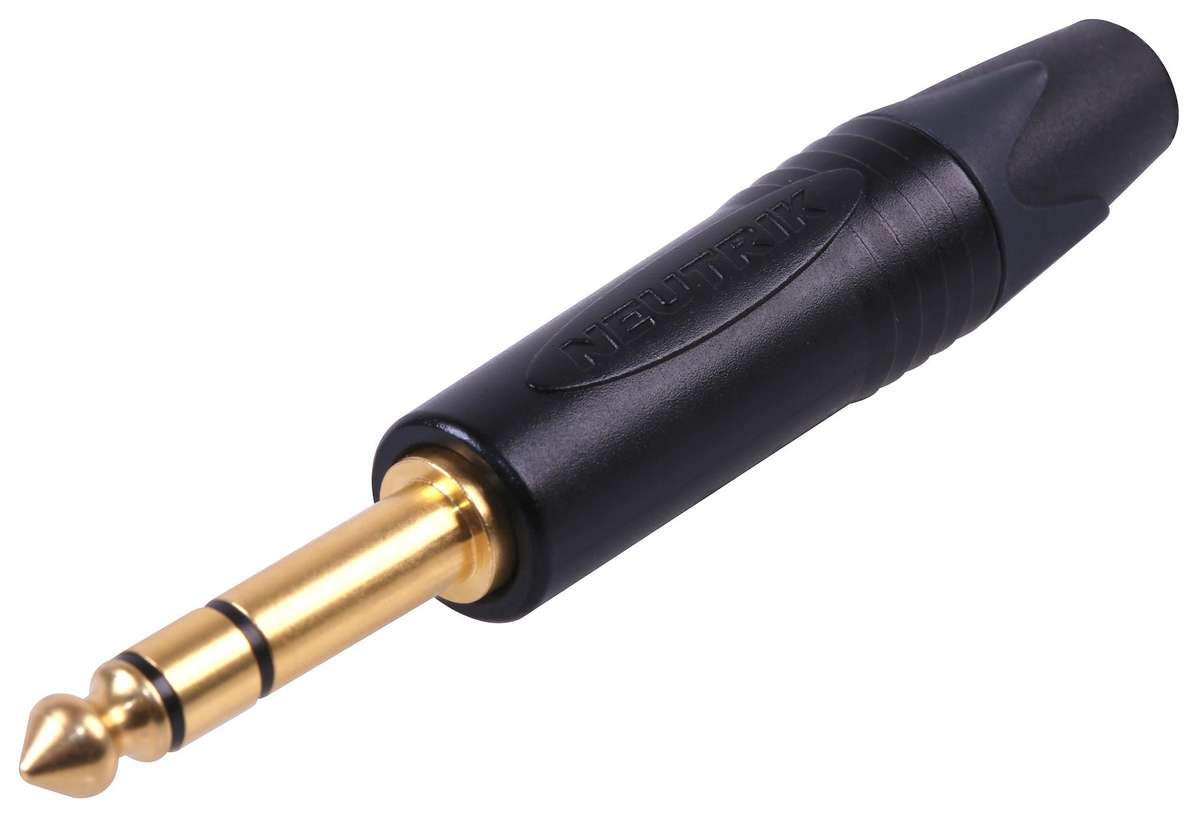

Neutrik (NP3X-B) Phone Audio Connector, Professional, 3 Contacts

Phone Audio Connector, Professional, 3 Contacts, Plug, 6.35 mm, Cable Mount,Gold Plated ContactsProduct OverviewThe NP3X-B from Neutrik is a 3 pole 1/4" professional phone plug. This heavyduty professional phone plug has proven unique chuck type strain relief forreliable cable retention. The slimline shell with a width of 14.5mm meets themost recent requirements for highest density jackfields (15.88mm jack pitch).The precise machined one piece tip contact without rivets makes it unique andavoids hook up in a socket or break off the tip. All metal housing design ofthis connector eliminates plastic cover of predecessor NP*RCS and improvesfurther durability and EMI protection. This phone plug is used in audio cables,snakes, speakers, amplifiers, mixing desks and guitar applications.Extra slim 1/4" plug for highest packing densityRobust die-cast shell in stylish designSleek design for best handling convenienceRated voltage is less than 50VCable outer diameter range from 4mm to 7mmWire size is 18AWG (1mm²) and greater than 1000 mating cyclesGold plated brass solder contacts, polyacetal + PU bushing and polyamide insertmaterialZinc die-cast shell with black chromium platingIEC 60603-11/EIA RS-453 compliantTemperature range from -20°C to 65°CApplicationsAudio, Consumer ElectronicsProduct InformationNo. of Contacts: 3ContactsGender: Plug (View Associated Connectors)Pin Diameter: 6.35mmConnector Mounting: Cable MountContact Plating: Gold Plated ContactsConnector Body Material: Metal BodyProduct Range: PX
