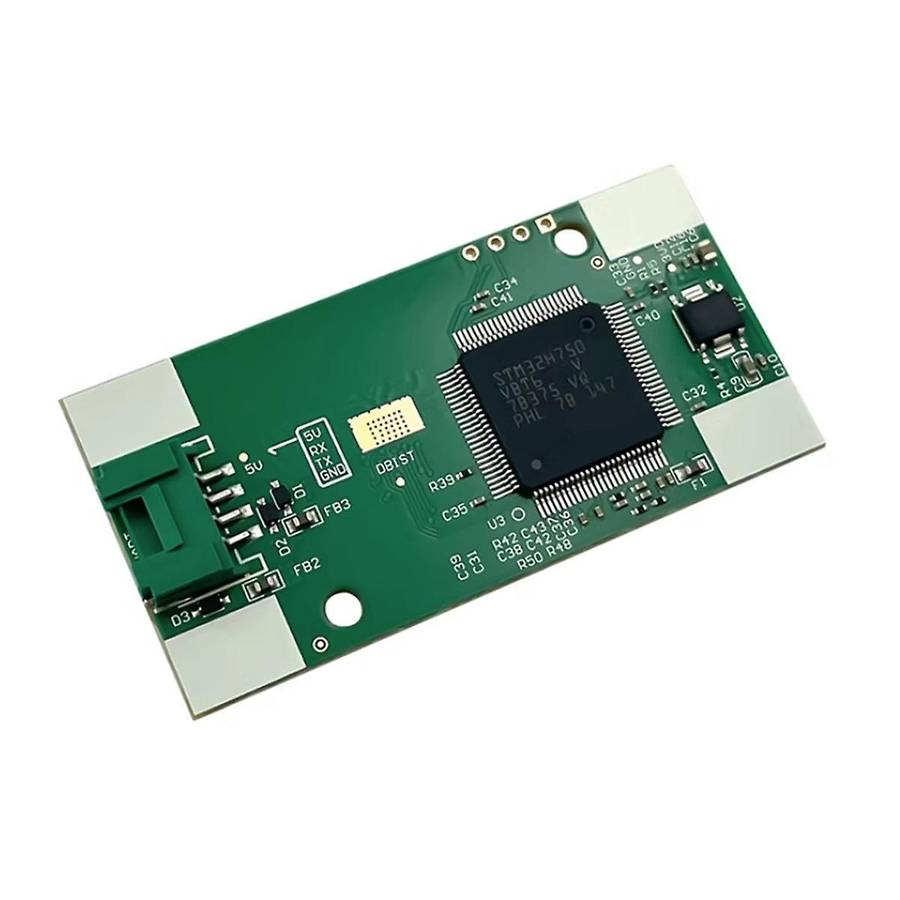

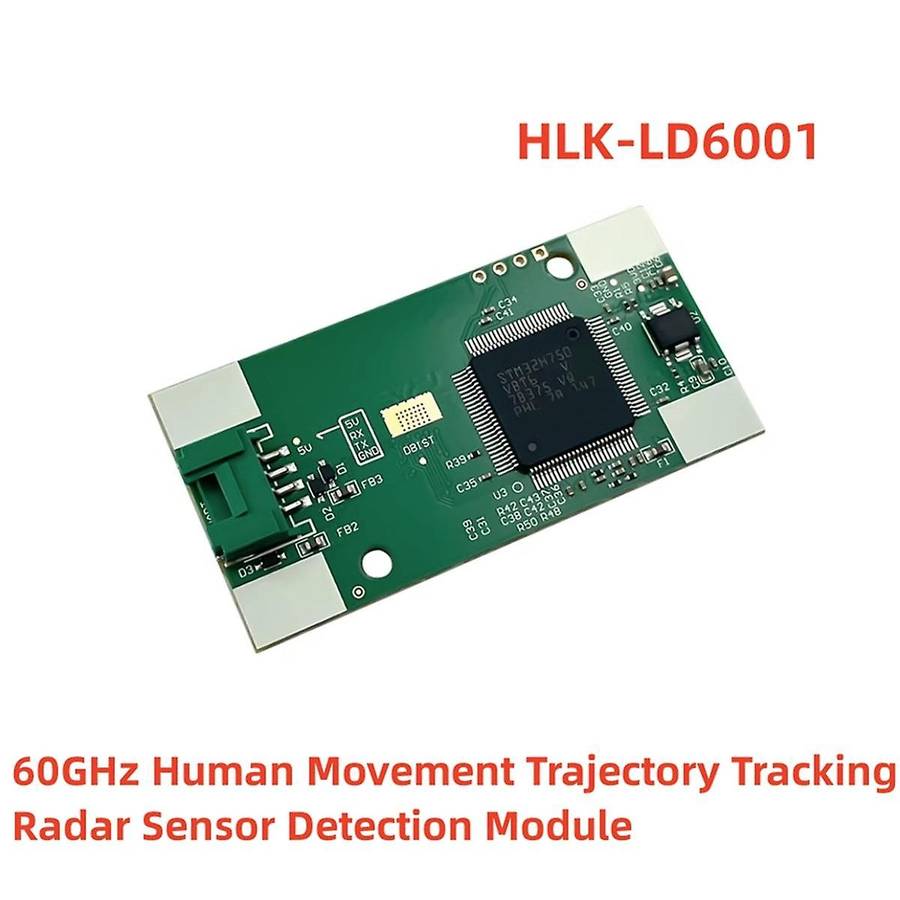

New 4T3R 8m 60G HLK-LD6001 Human Movement Trajectory Tracking Radar Sensor Detection Module

The LD6001 is a high-performance 60GHz millimeter wave radar induction module. The working principle is to use FMCW FM continuous wave to detect the human body target in the sensing area, which can realize the location, number and walking track of the human body in the detection area.The products are mainly used in indoor scenes, and the farthest sensing distance can reach 8 meters. The configuration tool is provided to configure the induction sensitivity and induction interval time. Support UART output, plug and play, can be flexibly applied to different intelligent scenarios.Frequency: 60GHzModulation mode: FMCWDetection distance: 8m(Max.)Transmit power: 12dBmAntenna beam horizontal width: 60Antenna beam pitch width: 30Sweep bandwidth: 4GHzOperating voltage: 5VAverage power consumption: 1.1WAmbient temperature: -15~+70Colour:GreenMaterial:PC+metalPackage Contents:1 x ModuleOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
