New ATU100 Automatic Antenna Tuner 100W 1.8-30MHz With Battery Inside Assembled For 5-100W Shortwave

20 available / new

R1,833.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3466

93.51 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641130297

Features:
- Mini short-wave automatic antenna tuner. - TYPE-C charging interface, M connector. - With a 0.91-inch OLED display. - This antenna tuner is automatically tuned and does not require any control wires, suitable for most radio stations. - The device contains a set of 7 capacitors and 7 inductors, which allows it (with the largest configuration) to work effectively in a wide frequency band, overlapping 1.8-30MHz amateur radio HF band.
Specifications: - Power supply voltage: USB charge and discharge - Maximum current consumption: 400ma - Maximum working throughput: 100W - Maximum possible measurement power: 150W - Minimum power required to start tuning: 5W - Minimum possible measurement power: 0.1W - Measurement steps for power up to 10W: 0.1W - Measurement steps for power higher than 10W: 1W - Power measurement accuracy: 10% - Maximum installation inductance: 8.53uH - Minimum installation inductance step size: 0.05uH - Maximum installation capacitance: 1869pF - Minimum installation capacitance step: 10pF - 4pcs panel buttons: POW, BYP, AUTO and BOT function - Display: 0.91 OLED
Package included: - 1 x Automatic Antenna Tuner
Note: It is assembled and ready to use. - The device does not consider its own efficiency. - Supply voltage is 5V standard voltage. -This Tuner can install battery inside,if you need battery,please choose the one with battery
- CGJ-100 1.8-30MHz Mini Automatic Antenna Tuner 0.91 OLED Display For 5-100W Shortwave Radio Stations - CGJ-100: For high-power shortwave radio stations using 5-100W.

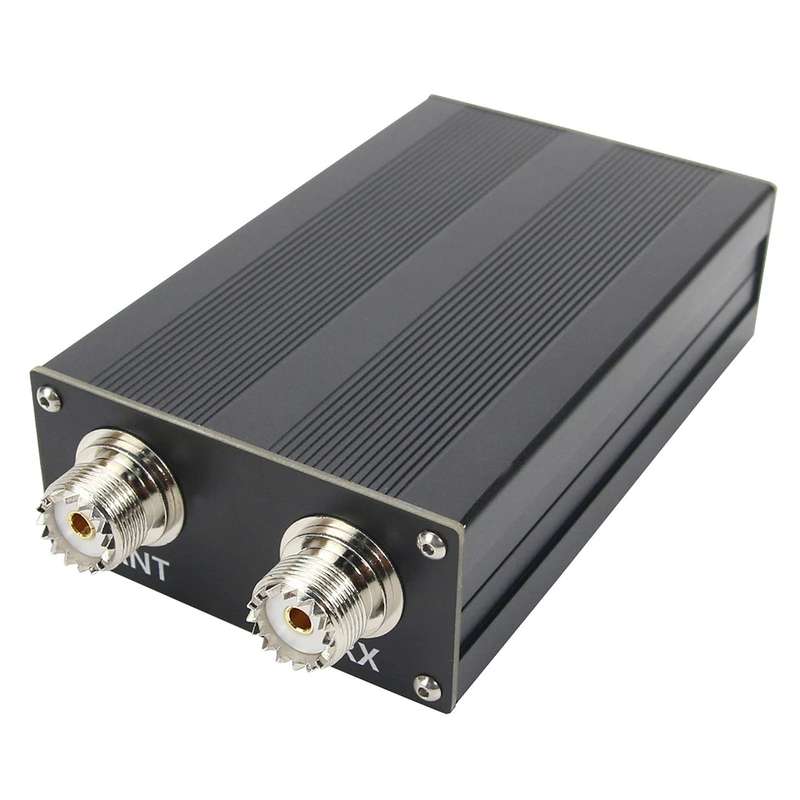

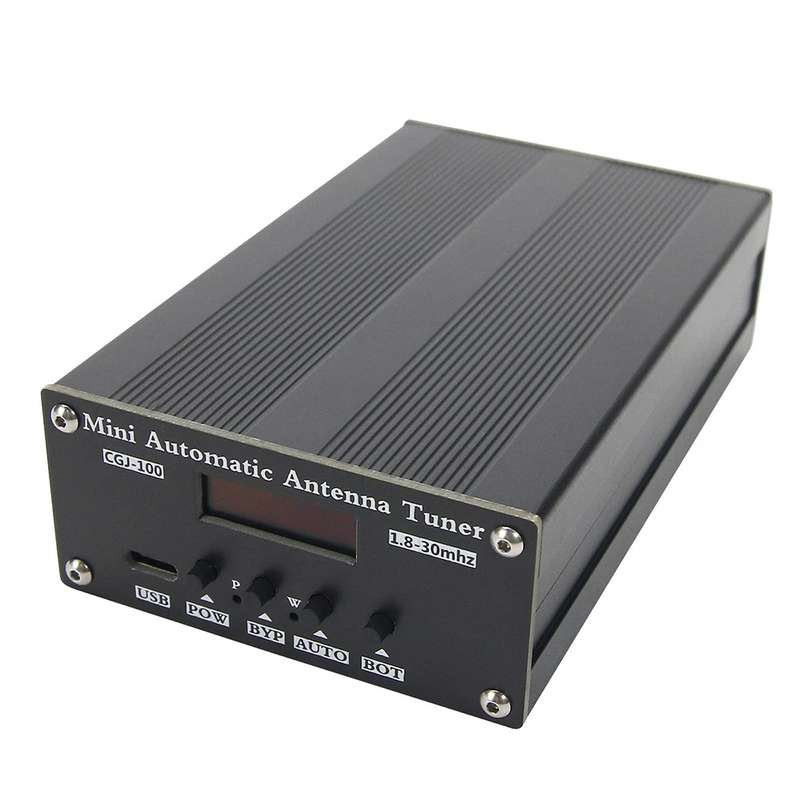

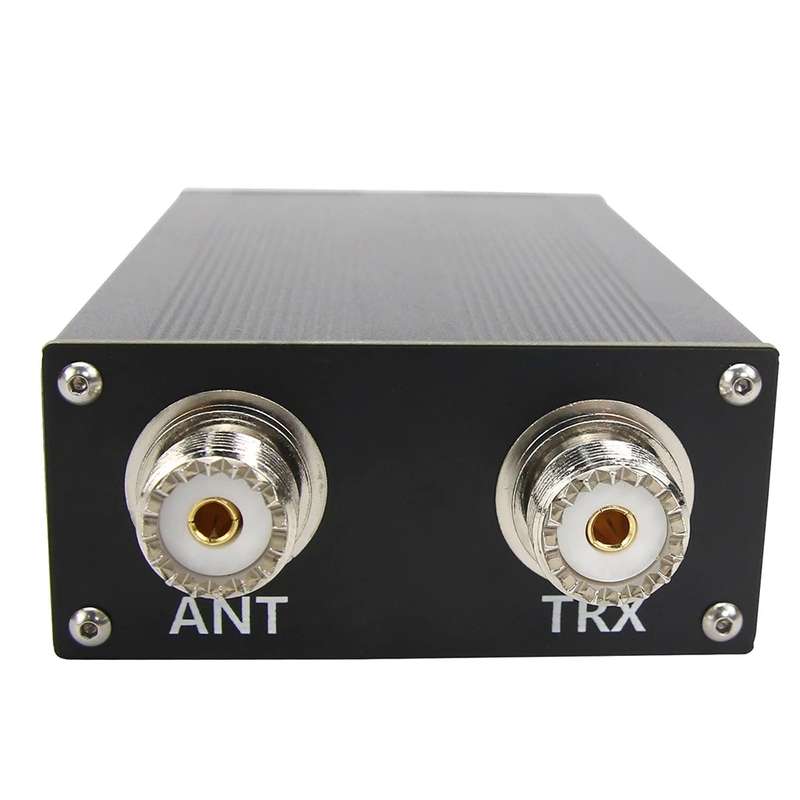

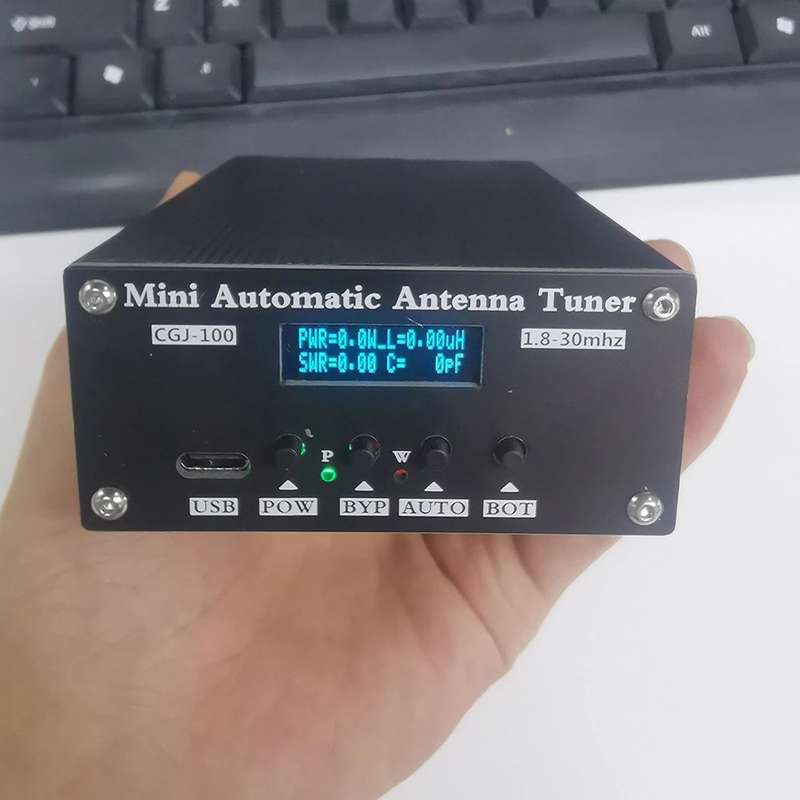

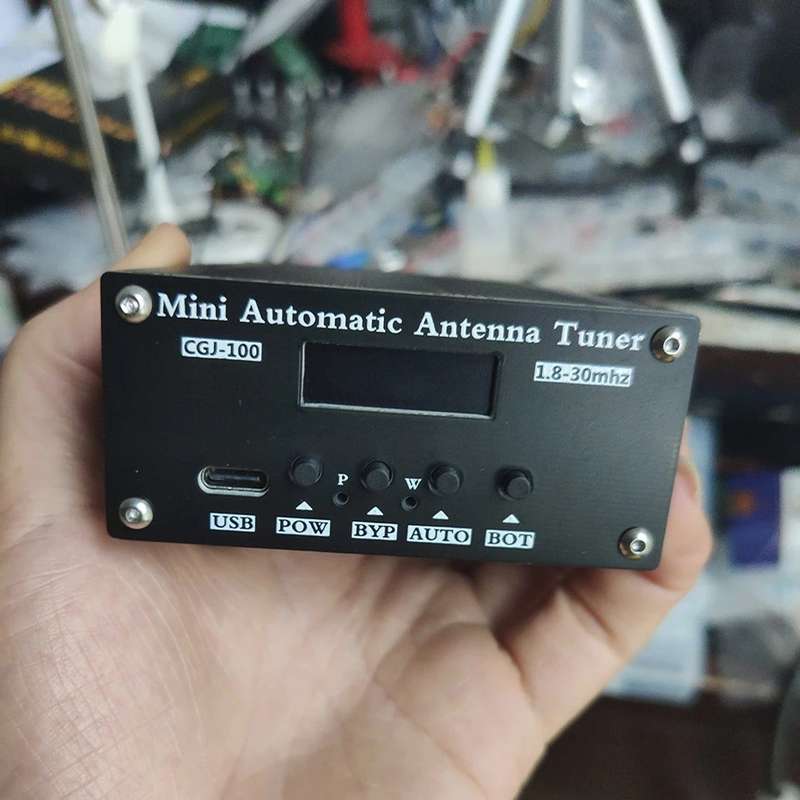

Details picture:
