New ATU100 Automatic Antenna Tuner 100W 1.8-30MHz With Battery Inside Assembled For 5-100W Shortwave

Features:
- Mini short-wave automatic antenna tuner. - TYPE-C charging interface, M connector. - With a 0.91-inch OLED display. - This antenna tuner is automatically tuned and does not require any control wires, suitable for most radio stations. - The device contains a set of 7 capacitors and 7 inductors, which allows it (with the largest configuration) to work effectively in a wide frequency band, overlapping 1.8-30MHz amateur radio HF band.
Specifications: - Power supply voltage: USB charge and discharge - Maximum current consumption: 400ma - Maximum working throughput: 100W - Maximum possible measurement power: 150W - Minimum power required to start tuning: 5W - Minimum possible measurement power: 0.1W - Measurement steps for power up to 10W: 0.1W - Measurement steps for power higher than 10W: 1W - Power measurement accuracy: 10% - Maximum installation inductance: 8.53uH - Minimum installation inductance step size: 0.05uH - Maximum installation capacitance: 1869pF - Minimum installation capacitance step: 10pF - 4pcs panel buttons: POW, BYP, AUTO and BOT function - Display: 0.91 OLED
Package included: - 1 x Automatic Antenna Tuner
Note: It is assembled and ready to use. - The device does not consider its own efficiency. - Supply voltage is 5V standard voltage. -This Tuner can install battery inside,if you need battery,please choose the one with battery
- CGJ-100 1.8-30MHz Mini Automatic Antenna Tuner 0.91 OLED Display For 5-100W Shortwave Radio Stations - CGJ-100: For high-power shortwave radio stations using 5-100W.

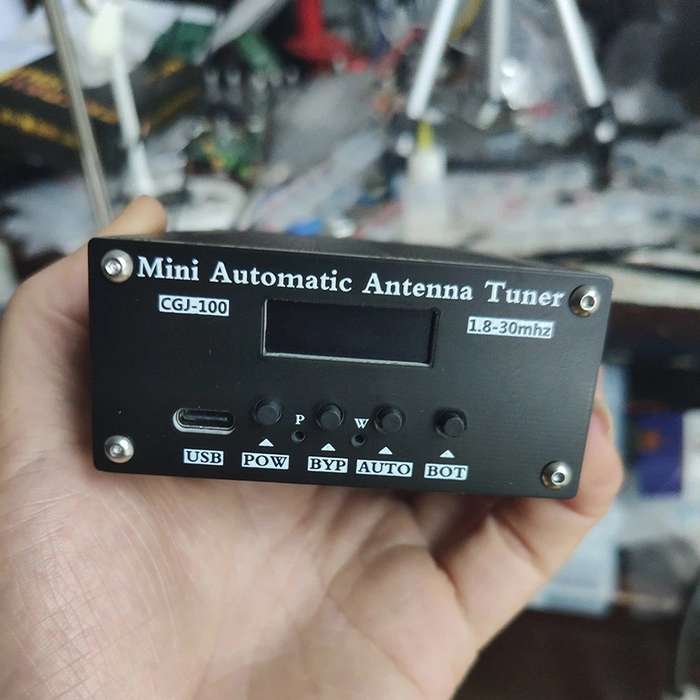

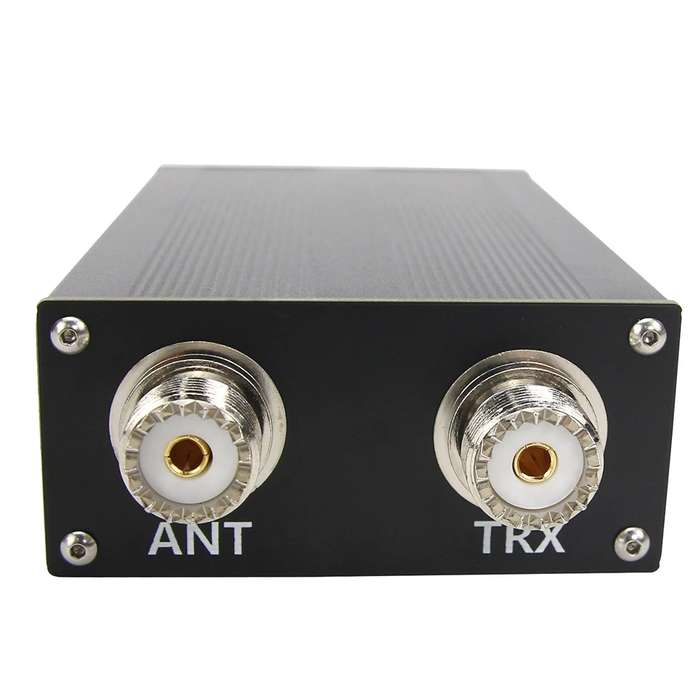

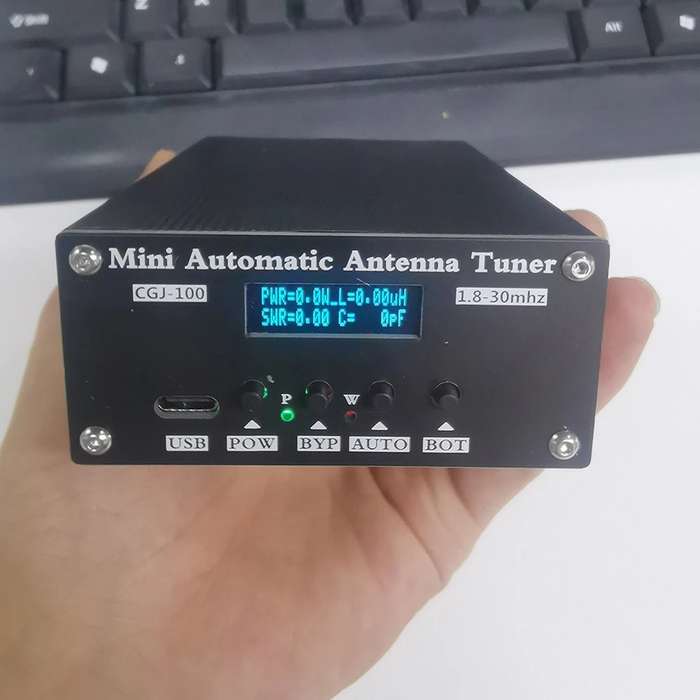

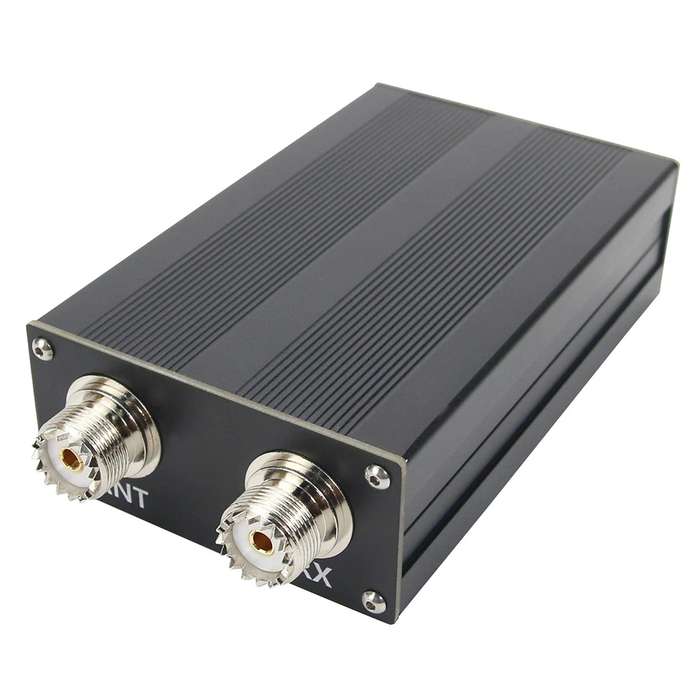

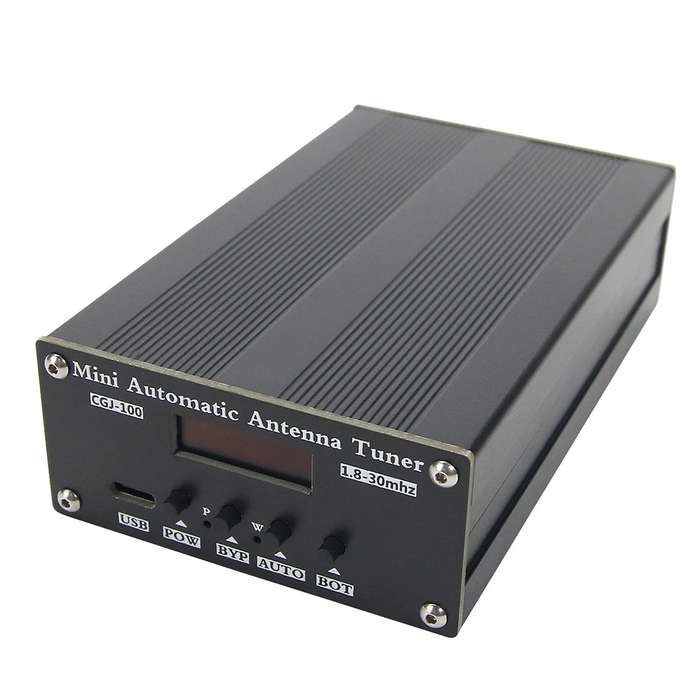

Details picture:
