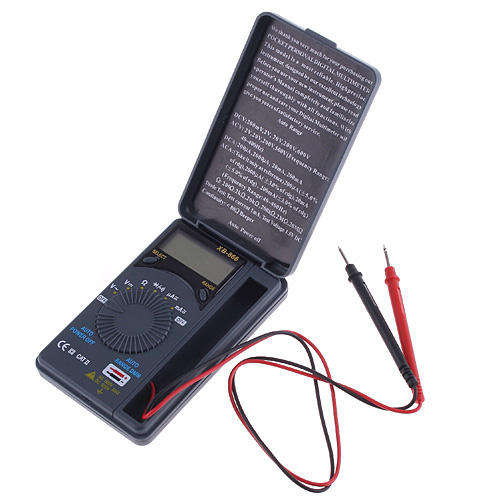

New Auto Range AC/DC Mini Pocket LCD Digital Multimeter
1 was
available
/ new
Shipping
Standard courier shipping from R60
R60 Standard shipping applies to orders under R100, in most areas in South Africa. R30 Standard shipping applies to orders over R100. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Seller
Buyer Protection
Product details
Condition
New
Location
South Africa
Bob Shop ID
87268219
BID with Confidence, I am a Verified Seller
Specifications:
Accuacy is specified for a period of year after calibration
It includes 7 function with 25 rangs.
Auto ranges.
Overrange protection for all ranges.
Max.Voltage Between Terminals And Earth Ground; 600V DC or 500V AC
Power supply: 9V Zinc-carbon battery.
Display: LCD
MAX.Show Value: 1999 counts max
Polarity Indication:"-" indicates negative polarity.
Overrange Indication: Display" OL" or "-OL"
Sampling Time: approx.0.4second
Until showing of function and electrical capacity.
Auto power supply: 15min.
Power Supply: 1.5V*2
Low Battery Indication: dispalyed
Temperature, Factorï.1*Accuracy/
Operating Temperature: 0 to 40 (32°F to 104 °F)
Storage Temperature: 0 to 50 (10°F to 122 °F)
Circumstance Temperature: 23±5 Relative Humiditu: 70%
Auto Range:
DC Voltage: 200mV, 2V, 20V, 200V, 600V
AC Voltage: 2V, 20V, 200V, 500V (Frequency Range: 40~400Hz)
DC Current: 200uA, 2000uA, 20mA, 200mA
AC Current: (Take it only as reference) 200uA(±5% of rdg), 2000uA (±3% of rdg), 20mA (±5% of rdg), 200mA (±3% of rdg) (Frequency Range: 40~400Hz)
Resistance: 200Ω, 2KΩ, 20KΩ, 200KΩ, 2MΩ, 20MΩ
Diode Test: test current 1mA, test voltage 1.5V DC
Continuity: <80Ω Beeper
Color: black
Dimension: 120*75*20mm
Weight: approximate 120g(including battery)
