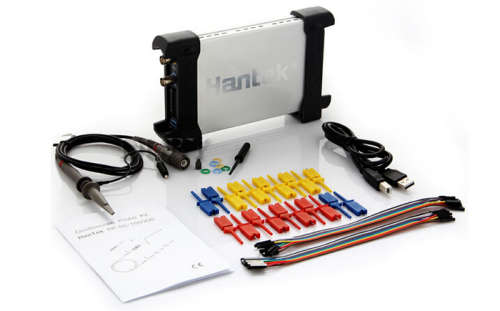

NEW :: Hantek 6022BL PC Oscilloscope

Use this PC oscilloscope to test your analog circuitry and digital wave forms using the logic probes. With 16 logic probes you have the opportunity to have real time feedback.

Features:

• Excellent industrial design-the same anodised aluminium casing.
• Standard USBXITM interface, easily inserts into USBXITM housing to make up a combined instrument.
• USB2.0 interface, no external power source required.
• Suitable for notebook computers and desktop computers.
• High performance, 48MS/s real-time sampling, 20MHz bandwidth.
• 16 Channels Logic Analyzer, 20MHz bandwidth.
• 2 Channels Analog inputs, 35V Peak voltage input
• Operating System: Windows 8, Windows 7, Windows NT, Windows 2000, Windows XP, VISTA.
• 23 measurement functions.
• Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
• Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
• FFT
• PID/VID Second Design instance.
• Dimensions (mm):205(L) x120(W) x35(H), be carried easily.

Package contents:
