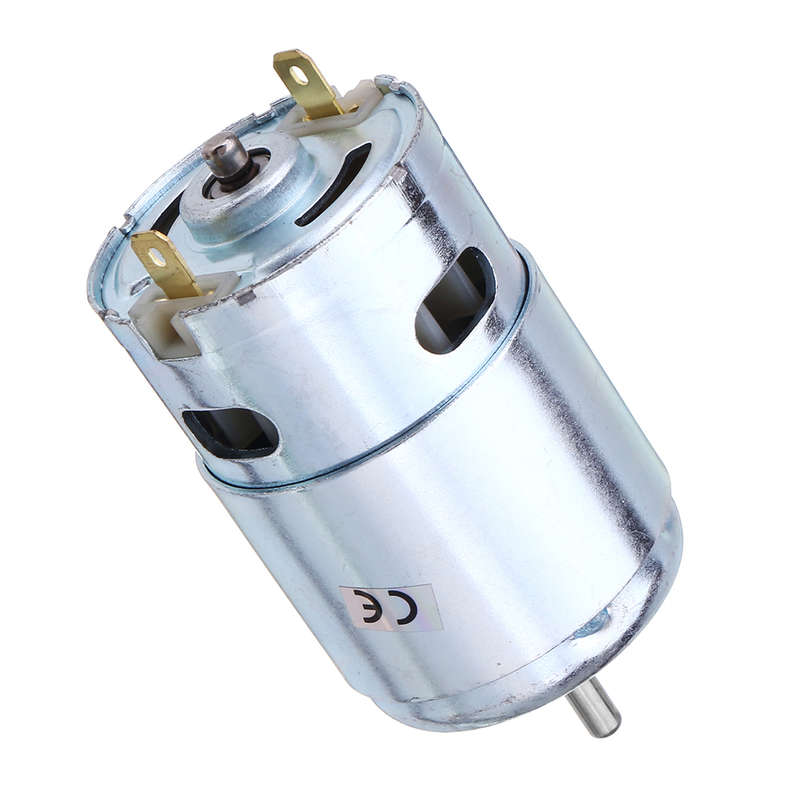

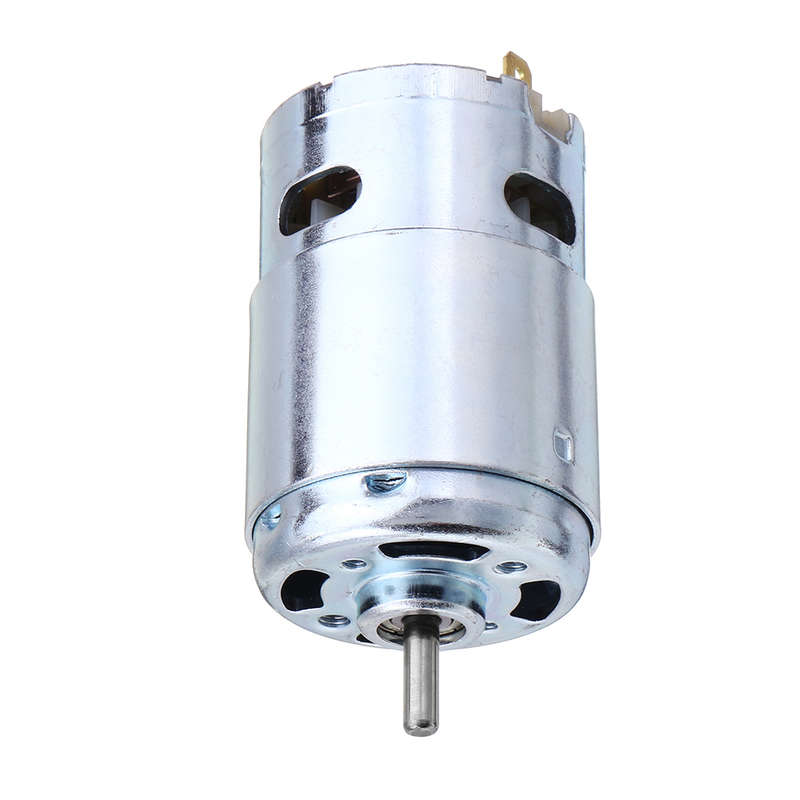

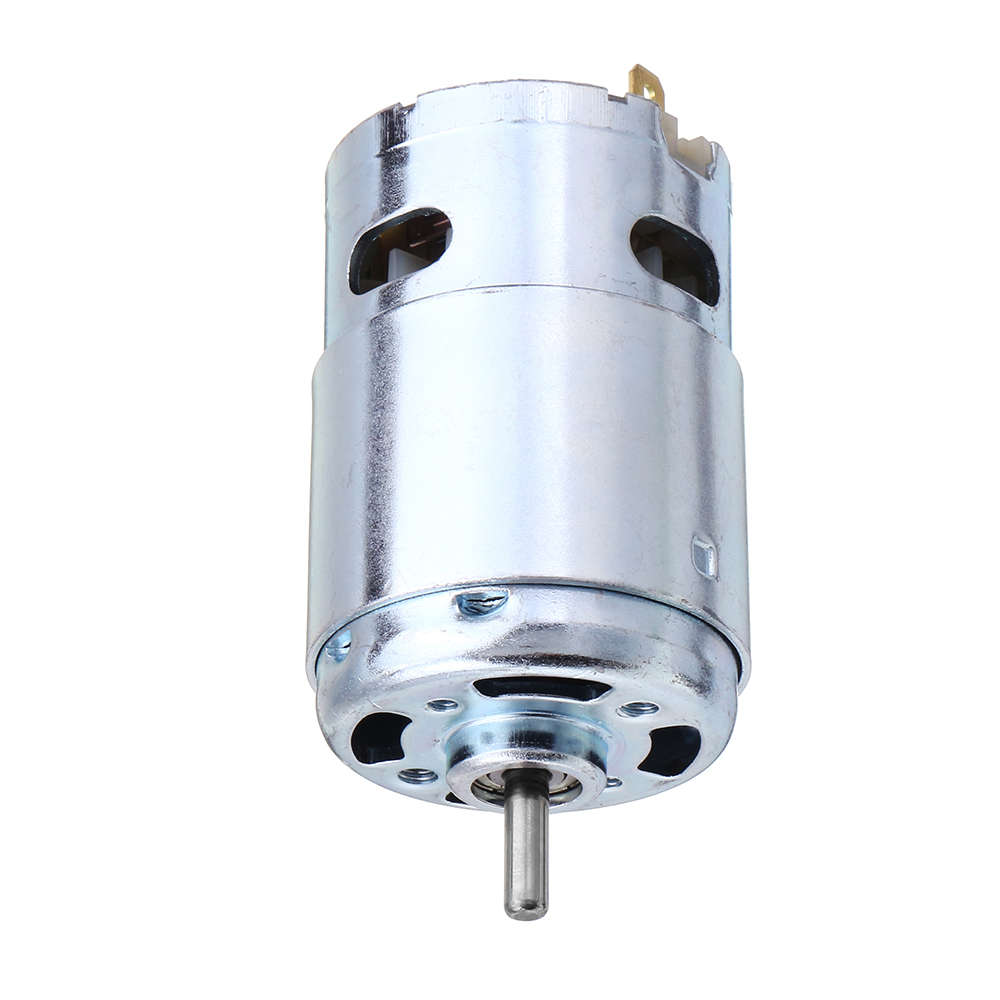

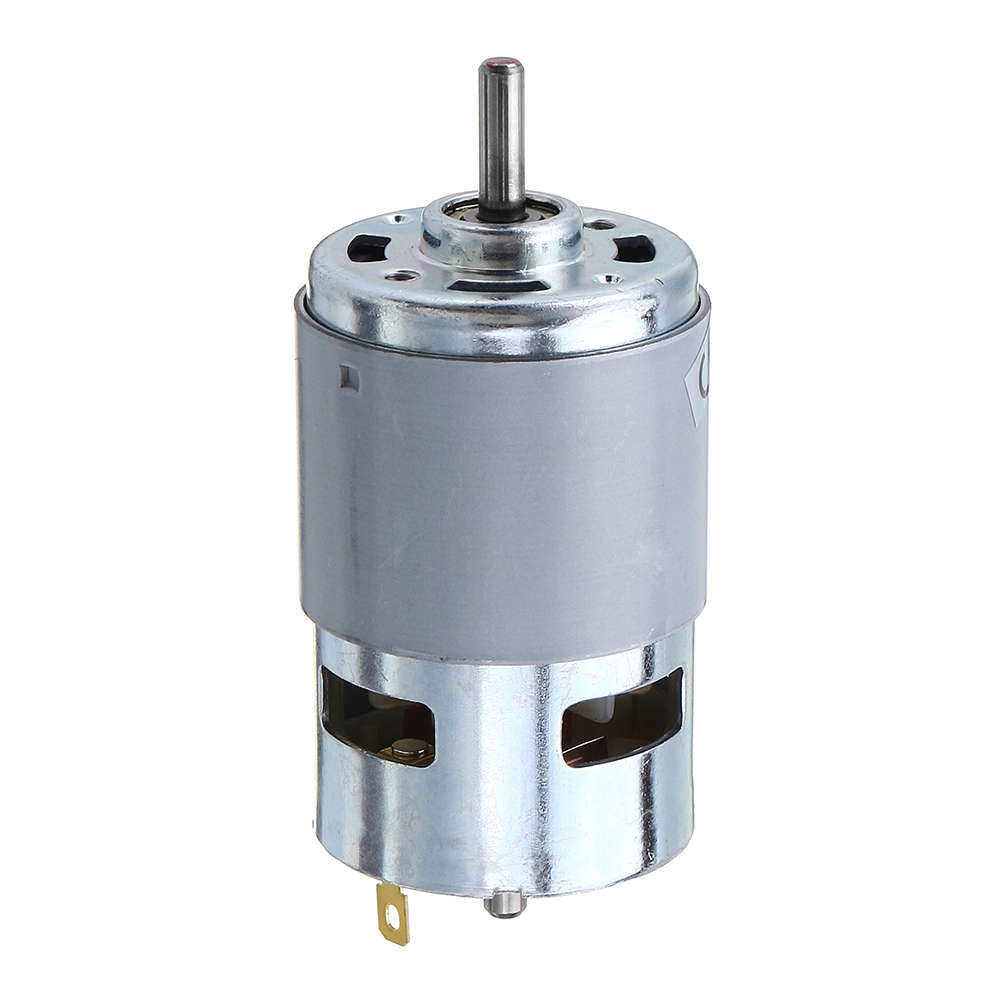

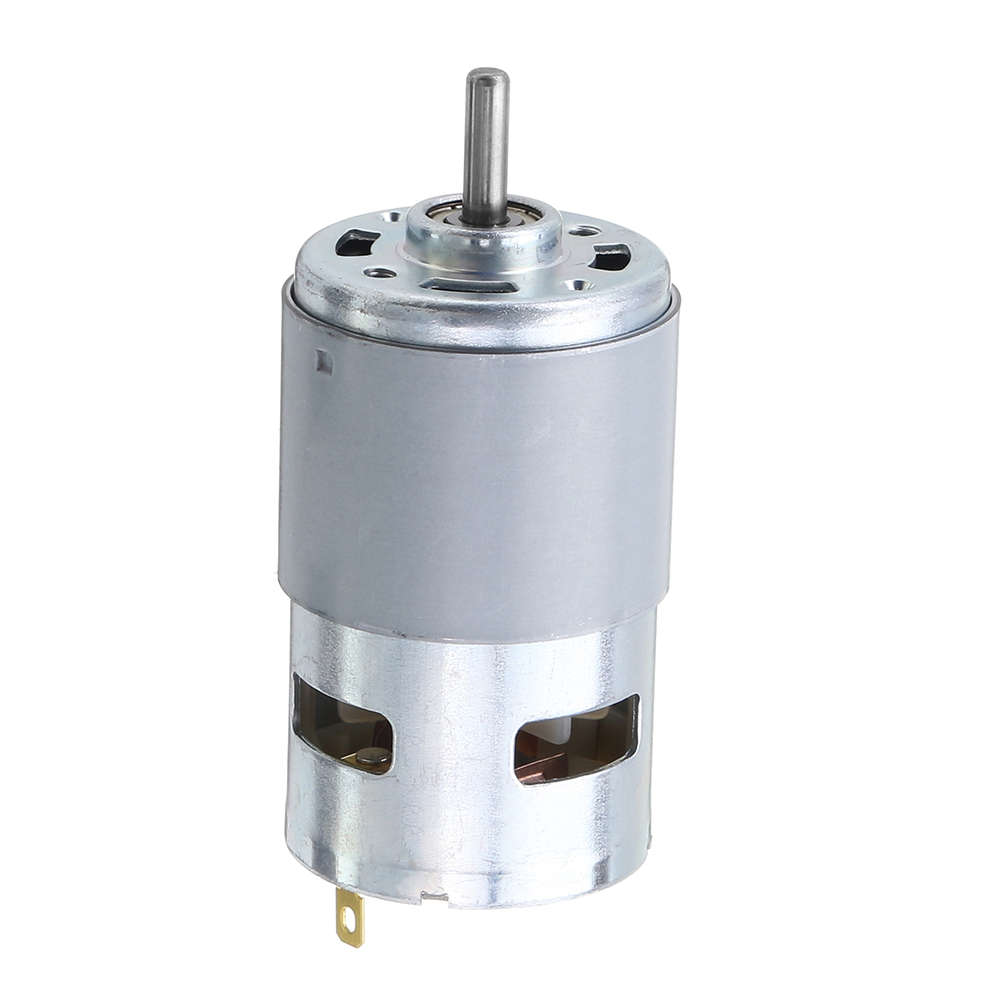

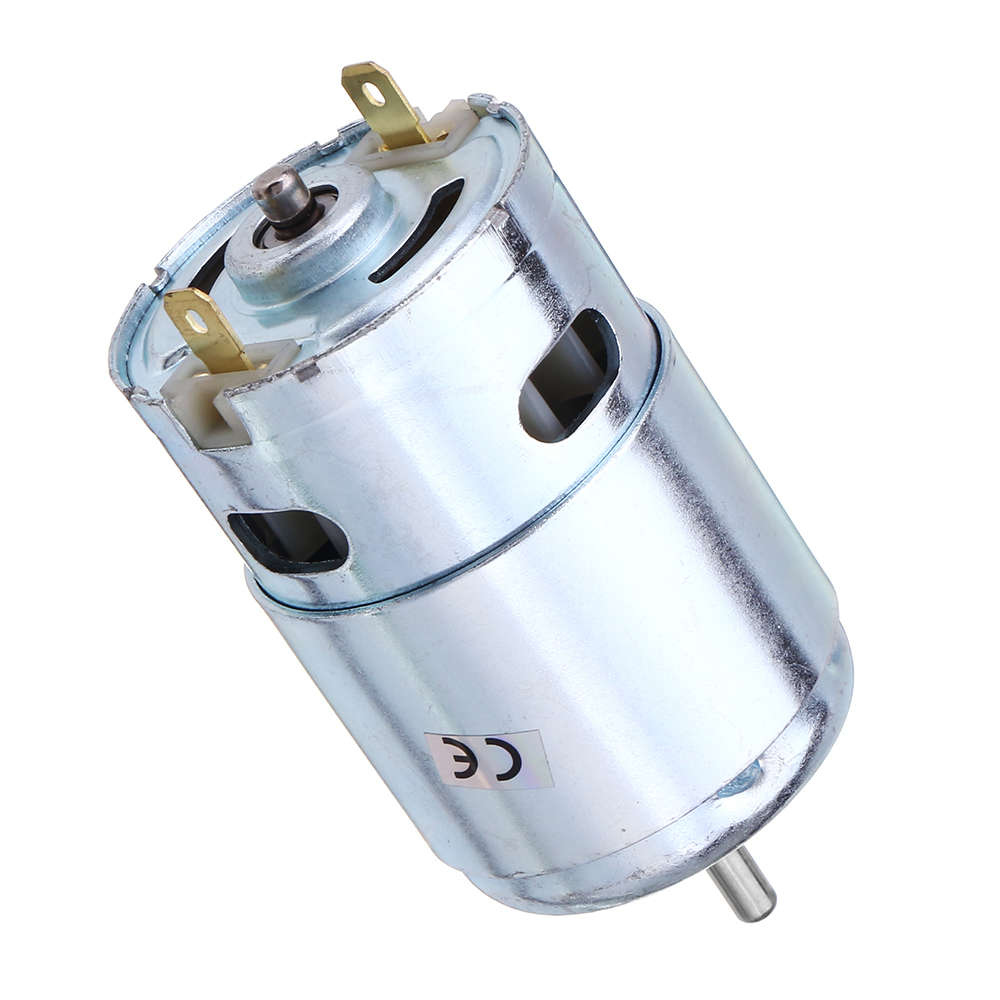

Machifit 775 795 895 Motor/Motor Bracket DC 12V-24V 3000-12000RPM Motor Large Torque Gear Motor

Description:
Machifit 775 795 895 Motor/Motor Bracket DC 12V-24V 3000-12000RPM Motor Large Torque Gear Motor

Specification:

Type	Model
#1	775/795 bracket
#2	895 bracket

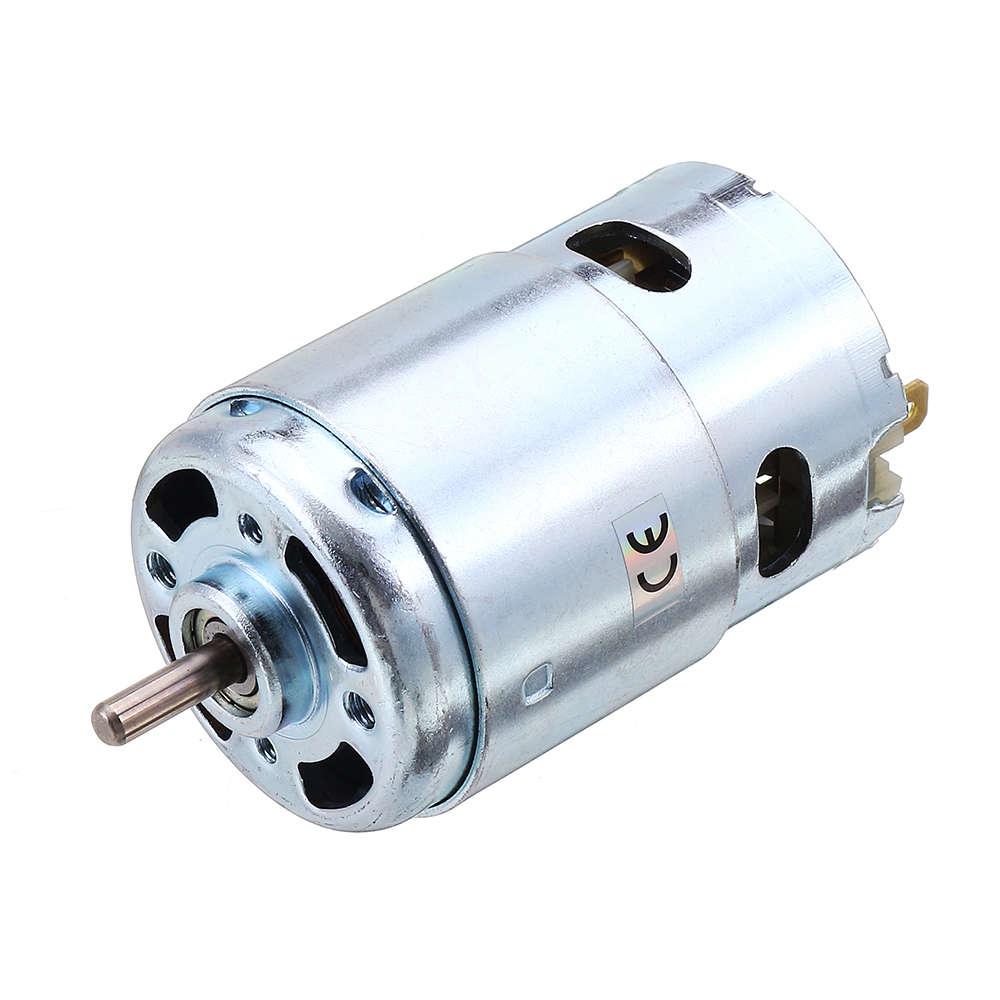

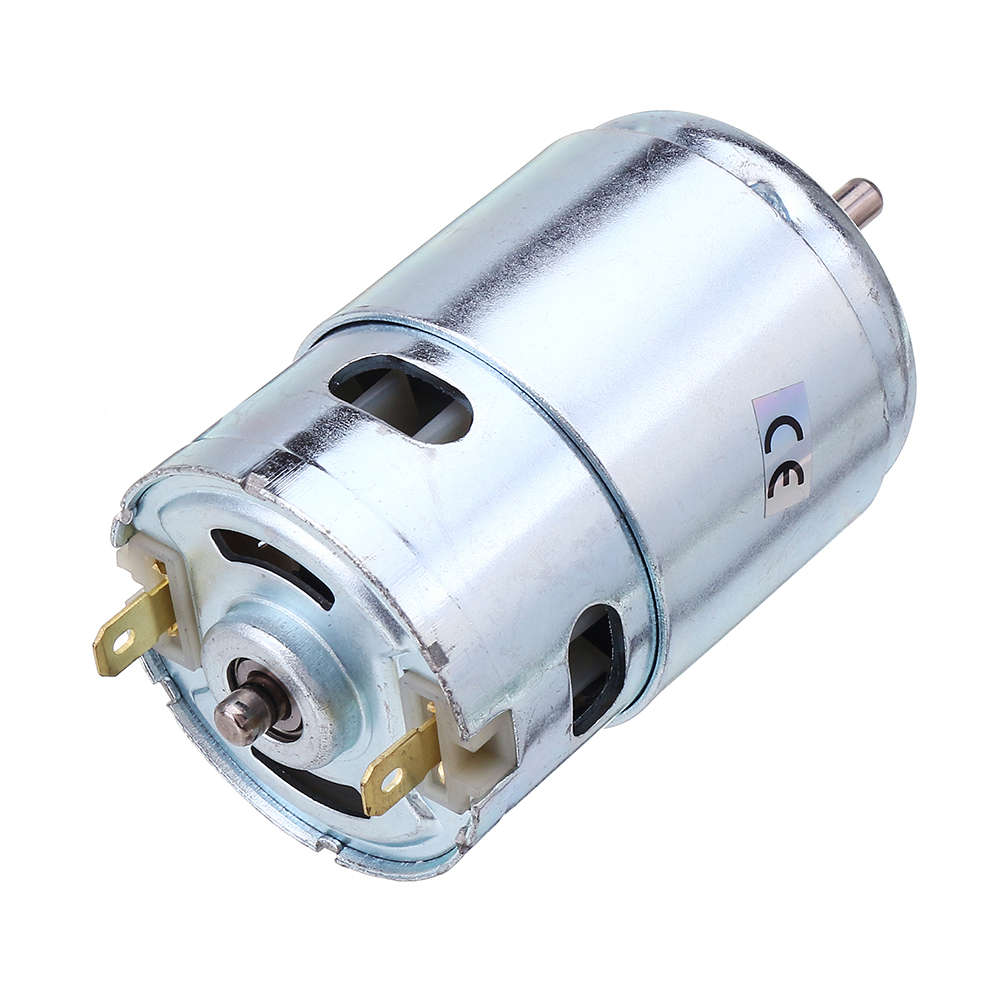

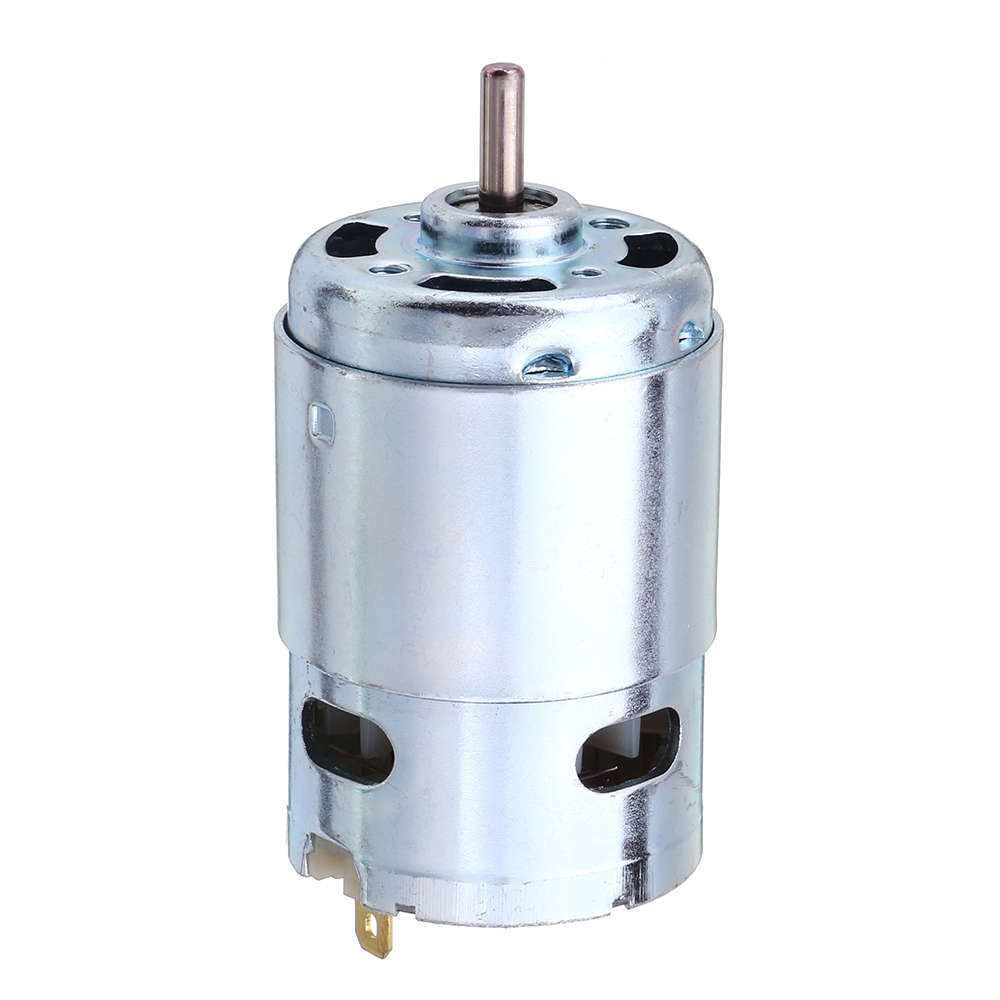

#3	775 motor
#4	795 motor
#5	895 (low speed)
#6	895 (high speed)

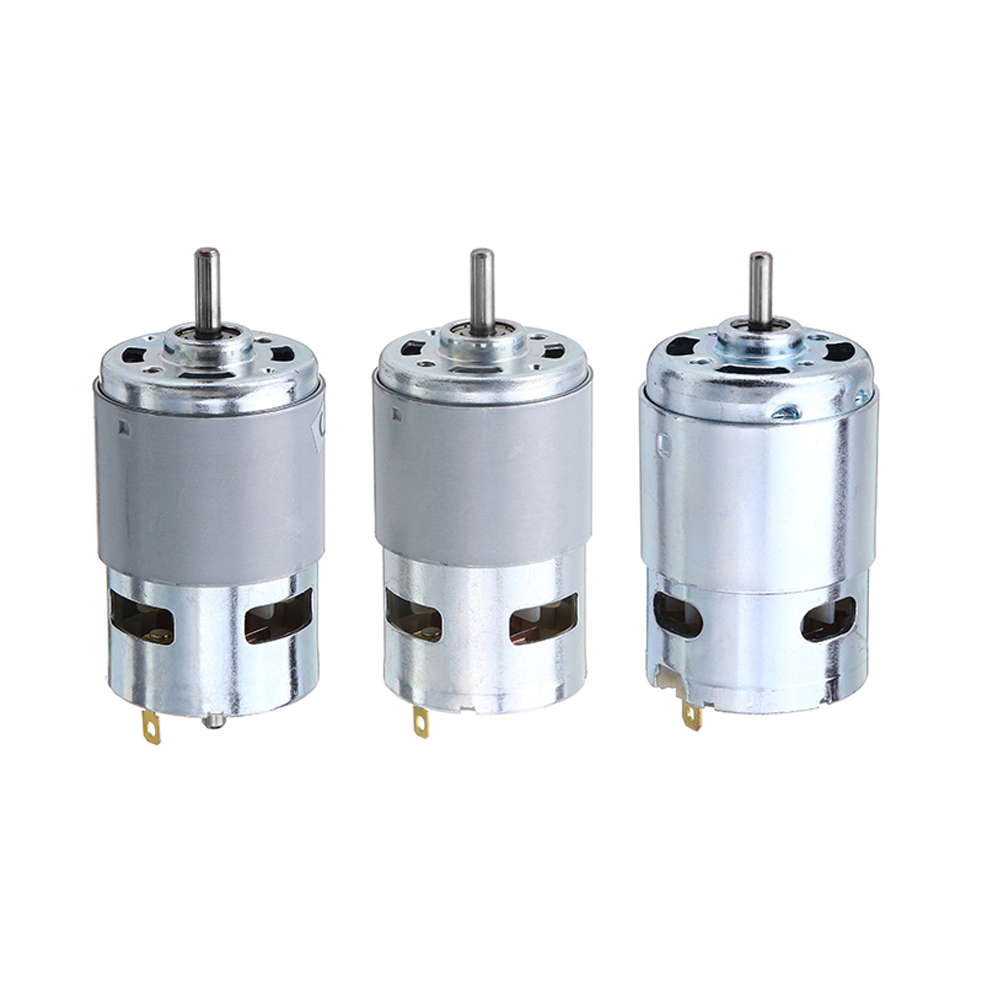

Model	775	795	895 (low speed)	895 (high speed)
Rated voltage	12V	12V	12-24V	12-24V
Speed	12V 10000rpm	12V 11000rpm	12V 3000rpm 24V 6000rpm	12V 6000rpm 24V 12000rpm
Torque	3kg.cm	4kg.cm	12V: 5.2kg.cm 24V: 10kg.cm	12V: 4.2kg.cm 24V: 8kg.cm
Former high level	4.5mm	4.5mm	4.5mm	4.5mm
Front steps diameter	17.5mm	17.5mm	18mm	18mm
Body diameter	42mm	42mm	48mm	48mm
Shaft diameter	5mm	5mm	5mm	5mm
Body length	67mm	70.5mm	72mm	72mm
Length of output shaft at tail	6mm	3mm	6mm	6mm
Diagonal installation pitch	29mm	29mm	29mm	29mm
Mounting hole size	M4	M4	M4 M5	M4 M5
Power	150W	180W	200W	200W

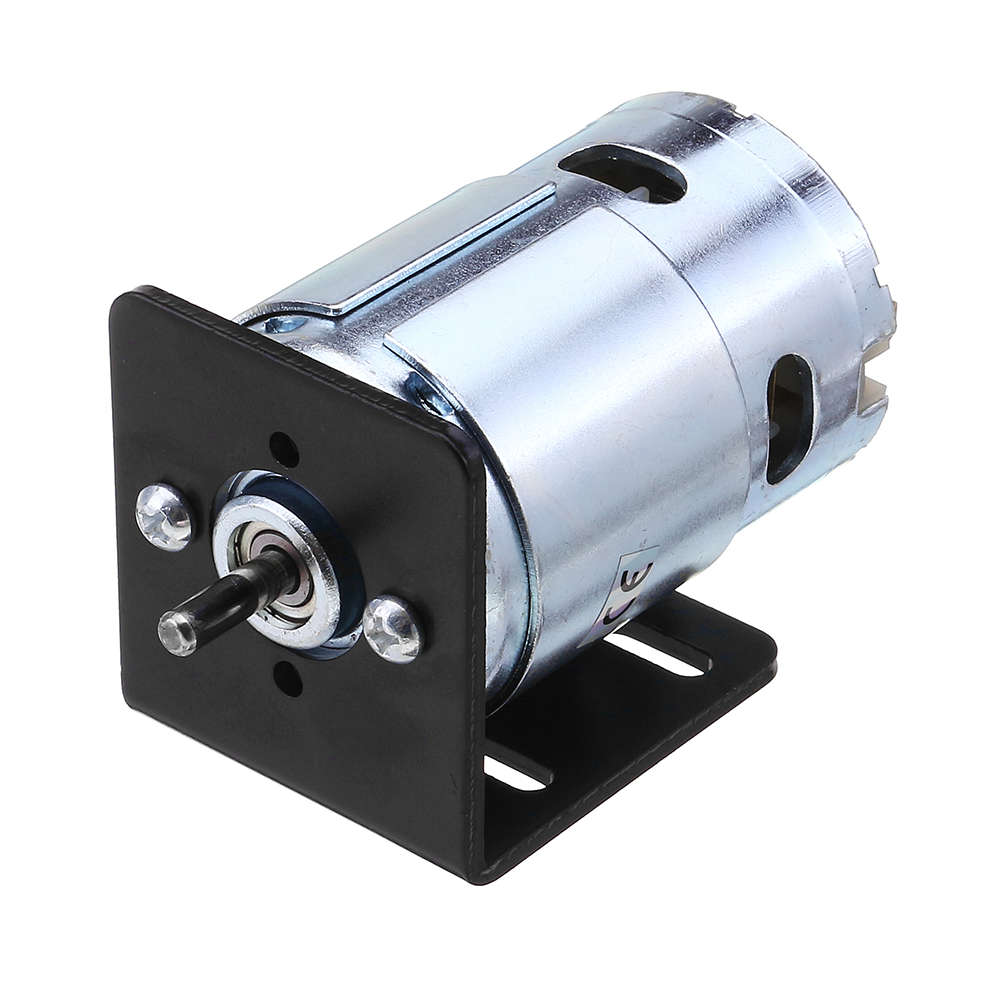

Model	775/795 bracket	895 bracket
Vertical surface
Thickness	3mm	3mm
Height	52mm	54mm
Width	50mm	50mm
Bottom plate
Length	52mm	54mm
Thickness	3mm	3mm
Motor fixing hole	M4	vertical hole:M4 29mm Cross bore: M5 32mm

Features:

Starting current needs to above 10A.

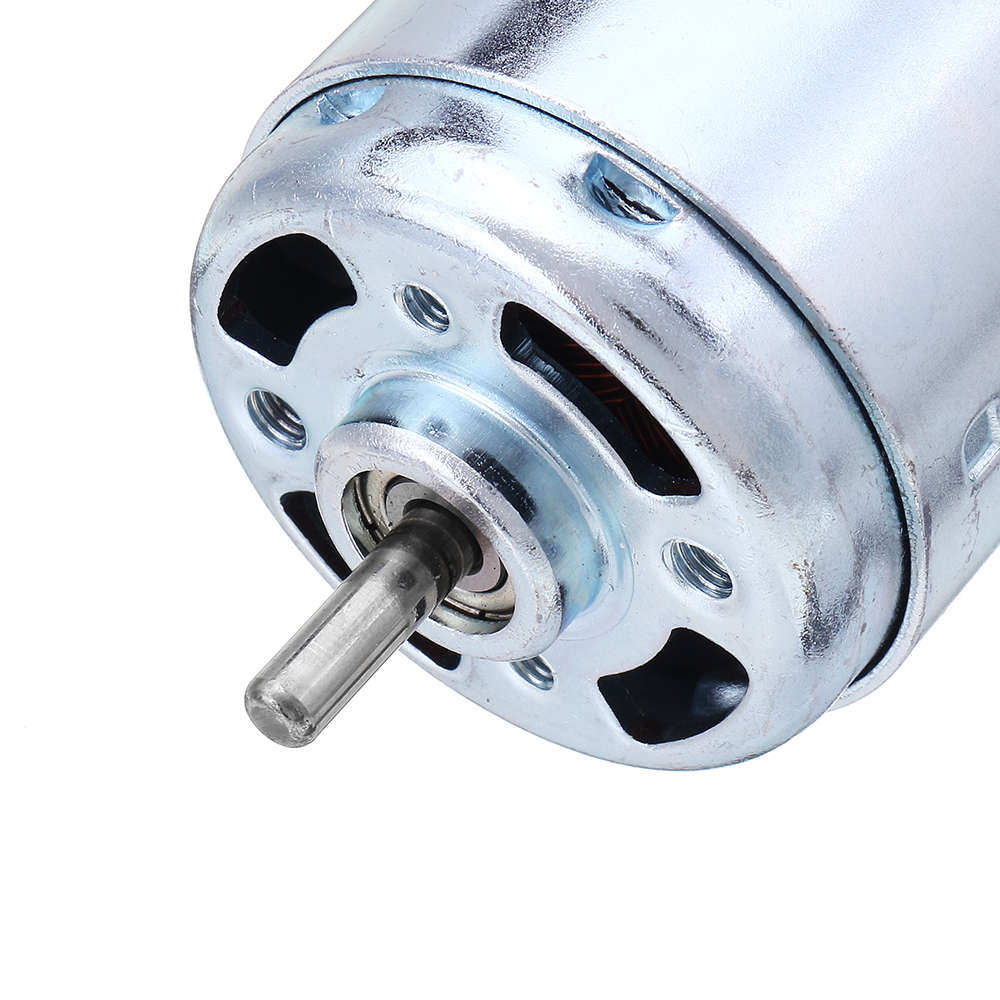

Double ball bearings, high speed, large torque, low noise.

Built-in cooling fan.

Durable and long service life.

Suitable for mini cutting machine, sanding machine, lathe tool, milling machine, bench drill, electric hand drill, polishing machine, electric grinder, engraving machine, etc.

Note:
Please note that the package includes one item only.

Package Included:
1 x Motor
