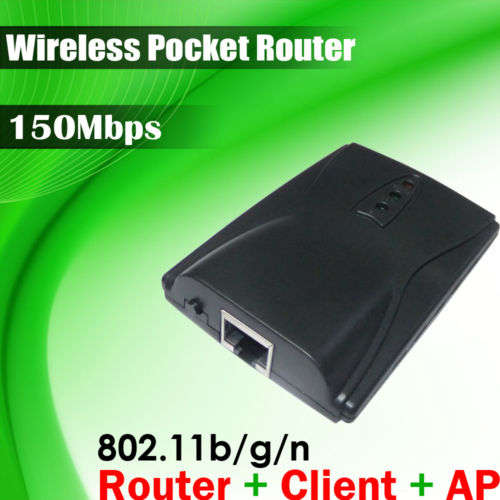

New Mini Pocket b/g/n 150Mbps 150M Wireless Router AP
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information
Product Features
Design is Built-in Omni-directional antenna.Supports UPnP, DDNS, and static routing.Supports 11N wireless technology providing up to 150 Mbpswireless uploading and downloading transfer rate.Supports IEEE 802.11nÂÂÂÂÂIEEE 802.11gÂÂÂÂÂIEEE 802.11bÂÂÂÂÂstandards.Supports Wireless AP ÂÂÂÂÂrouter ,firewall Bridge1 WAN port supports auto-negotiation and port auto-flip.Compatible with all 802.11b/g/n series Wireless LAN card.Supports WDS wireless bridge, easily extend wireless network.Supports PPPoE, Dynamic IP, Static IP and other broadband access.Supports local / remote Web management, configuration the entire Chinese interface.Automatic dialing, on-demand dial-up, regular dial-up, to meet theneeds of a variety of dial-up.Support SSID broadcast control, based on the MAC address of the access control list.Provide 64/128/152 bit WEP encryption supports WPA / WPA-PSK, WPA2/WPA2-PSK security.Built-in firewall, supports IP, MAC, URL filtering, offers the flexibility to control Internet access and Internet timeBuilt-in DHCP server, you can automatically and dynamically assign IP addresses.Languages: Simplified Chinese, traditional Chinese, English configuration interface,supports for free software upgrades.
Description
The product is a portable design, supports computer USB powered, the appearance looking small and exquisite,convenient to use at any time. Adopt 11N Wireless technology, 150Mbps wireless upload and download rate, in order toachieve the most efficient data transmission. It built-in high gain Omni-directional smart antenna, that can provide betterwireless coverage.Supports WMM, keep your audio and video to more smoothly. This is a fashion product, superior performance. I thinkthat is your first choice.The product provide multiple safety precautions, supports SSID broadcasting control, MAC address of access control,WEP encryption, supports WPA/WPA2, WPA - PSK /WPA2 - PSK and certification. Protect user information and data security,protection of wireless networks will not be infringed, or theft.The product factory default for AP mode, directly with broadband connection, can achieve multiple machines to shareInternet access. In the wireless router mode, can achieve multi-machine shared wireless Internet access .In addition tothis product install easily and have more common broadband router functions, the router also supports on-demand dial-up,internet access management, automatic virus isolation, UPnP, DDNS and advanced system security record, easy to use, sothat all of users can easily configure the router.
Specifications
Software Specification
Standards IEEE802.11n, IEEE802.11g, IEEE802.11b
Wireless Signal Rate
11n: up to 150Mbps (dynamic)
11g: up to 54Mbps (dynamic)
11b: up to 11Mbps (dynamic)
Frequency Range
2.4~2.4835GHz
Transmit Power (MAX) 16dBm
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
Receive Sensitivity
150Mbps: -68dBm@10% per
130Mbps: -68dBm@10% per
108Mbps: -68dBm@10% per
54Mbps: -68dBm@10% per
11Mbps: -85dBm@8% per
6Mbps: -88dBm@10% per
1Mbps: -90dBm@8% per
Hardware Specification
Interface 1 x 10/100Mbps WLAN Port
Antenna Built-in Omni-directional antenna
Power Adapter DC 5V / 500mA
Operating Temperature 0âÂÂÂÂÂÂÂÂÂÂï½ÂÂÂÂÂ40â (32âÂÂÂÂÂÂÂÂÂÂï½ÂÂÂÂÂ104âÂÂÂÂÂÂÂÂÂÂ)
Storage Temperature -40âÂÂÂÂÂÂÂÂÂÂï½ÂÂÂÂÂ70â (-40âÂÂÂÂÂÂÂÂÂÂï½ÂÂÂÂÂ158âÂÂÂÂÂÂÂÂÂÂ)
Relative Humidity 10%ï½ÂÂÂÂÂ90%, Non condensation
Storage Humidity 5%ï½ÂÂÂÂÂ95%, Non condensation
Packing Include:
1pcs Mini wireless 802.11n 150Mbps Router.
1pcs power supply.
1pcs cable.
User guide.
