New KKL Vag Com 409.1 with FT232RL Chip OBD2 Diagnostic Interface Cable
Brand New
Dual-K lines and L-line (KKL interface)
NEW & MORE STABLE FT232RL Chip.
R375
Available for Countrywide Postage.
Registered Post (5-7 days) R30
Econoparcel SAPO (5-7days) R42
Economy Courier (Major Centres only) R60
Speedpost overnight to counter R82
Overnight Courier to Door (only Jhb, Pta, Bloem, Kimberley, Nelspruit, Dbn, PMB, Pietersburg) R75
Overnight Courier to Door (only C. Town, PE, EL & George) R85
Door Courier to All other areas (1-2 day delivery) R100

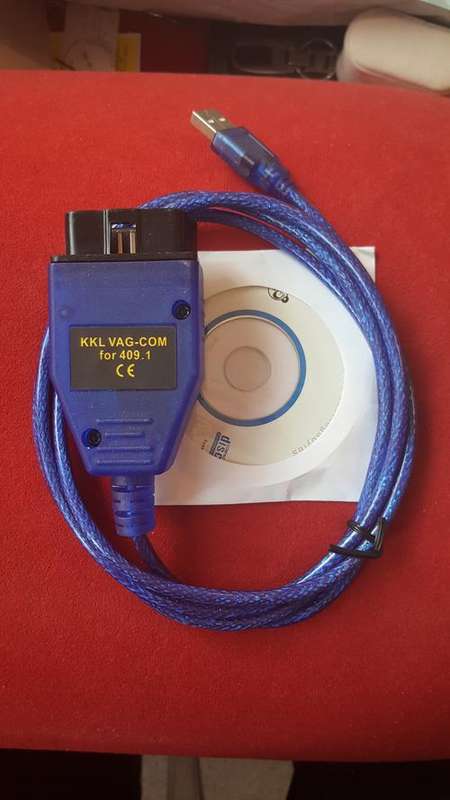

VAG COM KKL 409.1 USB Interface
FT232RL Chip
Blue Color
Description:
OBDII Plug: J1962 16-Pin Male (to Car), USB Port enabled
Connect USB interface to computer or PDA
Dual-K lines and L-line (KKL interface)
Festures:
Terminal K = Bus of communication
Terminal L = Ignition for waking up car computing system (ECU: Engine Control Unit)
Existed 3 different protocols with same OBD2 connector incl. ISO/KWP, VPW, PMW
This K/L Diagnostic interface & cable works on ISO/KWP (Key Word Protocol) launched after 1996 only.
Also supports ISO9141 protocol
The cable may work with some versions of the Carsoft, but carsoft uses a lot of different interfaces for the different versions and also has some custom interfaces.
This cable can not work if your car uses a protocol/bus system like VPW, PWM or CAN-bus.
Suitability:

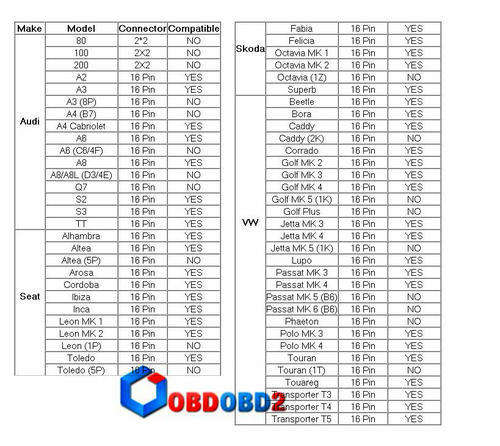

This diagnostic cable is suitable for ISO9141 and KWP2000 transmission protocols like the following: (See attached picture for compatibility list)
Supports Vehicle Model: VAG Series(For Audi/VW/Skoda/Seat)
Package Content:
1 x VAG 409.1
1 x Software CD
