Newland FM30 Grouper II 2D CMOS fixed mounted reader for Kiosk integration with flush glass front usb, cmos 752x480 image sensor, white LED illumination, sense mode & continuous mode SCAN, 60 frames per second
Overview:

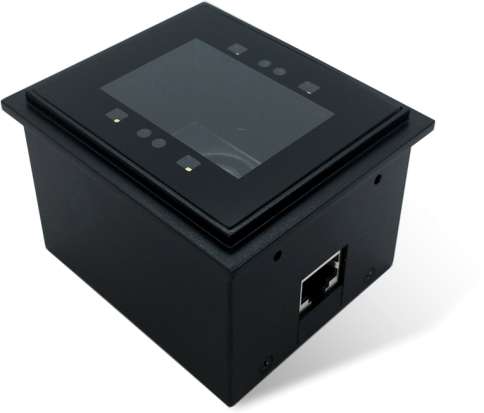

FM3056 Grouper
The FM3056 Grouper is a flush mount scanner with a minimal footprint. With a height of only 53mm, the device is small enough to fit into most kiosks and POS systems, while the flush mount ensures that the device suits any business environment. Built to read from contemporary LCD widescreen devices, the fixed scanner is ideal for mobile phone applications like loyalty programs and ticket validation. Whether its an employee scanning a product label or a customer scanning a voucher on their mobile phone, barcode scanning is always easy and quick.
The FM3056 Grouper is the flush mount equivalent of the FM3051 Grouper.
1D & 2D
Dual Interface
Mobile Reading
CMOS
CMOS
Chip
EasySet
Features:
Superior decoding performance.
Your employees can scan virtually any barcode, including 1D and 2D, at an extraordinary speed.
Effortless scanning from mobile phone screen.
Built to read from an LCD screen, the FM3056 Grouper can easily read barcodes from any mobile device screen. An extended capability of IR reading allows the device to detect barcodes under virtually any ambient light. Whether you operate at daytime or nighttime, scanning is quick and efficient.
Easily mounted in small spaces.
The FM3056 Grouper is designed for businesses that require high performance and a minimal footprint. With its small size, the device is ideal for kiosk integration and other POS solutions.
Easy to install.
The FM3056 Grouper can be set up quickly and easily. A plug-and-play simplicity enhances your experience right from the start. The device can be further configured according to your needs by using a simple barcode programming guide.
Application scenarios.
POS Solutions, kiosk integration, scanning from a mobile phone screen, such as for loyalty programs or ticket validation.
Specifications:
Performance
Image Sensor CMOS 752*480
Processor 0390 Chip+MCU
Illumination White LED
Minimal Print Contrast 25%
Scan Angle Roll 360°
Scan Angle Pitch ±40°
Scan Angle Skew ±40°
Field of View Horizontal 75°
Field of View Vertical 50°
Scan Modes Sense Mode, Continuous Mode
Scan Rate 60 frames per second
Scan Window 31.5mmx46.5mm
Data Capture
1D All major 1D symbologies including EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128 (FNC1, FNC2, FNC3), Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey.
2D All major 2D symbologies including DF417, Data Matrix, QR Code, Chinese Sensible Code.
Physical
Dimensions (mm) 78.7(W)x67.7(D)x53(H)mm (max.)
Weight 173g
Material PBT, ABS, Aluminium
Interfaces RS-232, USB
Notifications Beep
Input Voltage 5VDC±5%
Current @ 5VDC Operating 108mA (typical), 114mA (max.)
Power Consumption 534mW (typical)
Power Supply Input DC5V, 1.5A
Power Supply Output AC100~240V, 50~60Hz
Environmental
Operating Temperature -20°C to 60°C (-4°F to 140°F)
Storage Temperature -40°C to 70°C(-4°F to 158°F)
Humidity 5%~95% (non-condensing)
Electro Static Discharge (ESD) ±8 KV (air discharge), ±4 KV (direct discharge)
Accessories
Standard USB Cable
Optional RS232 Cable, Adapter
Software
Configuration Tools EasySet
Certifications
Hardware FCC Part15 Class B, CE EMC Class B, KC
