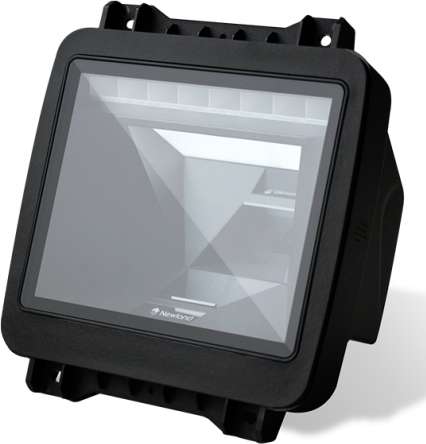

Newland FM80 Salmon 2D CMOS Mega Pixel large Window fixed Mount Scanner, 3 meter USB cable, 1280x1080 CMOS image sensor, Red LED illumination, Advanced Sense mode, 3.5m/s motion tolerance
Overview:
As shopper expectations are evolving, retailers turn to technology for strong solutions that keep up pace. The FM80 Salmon offers an easily integrated barcode scanner to build into such self-service kiosks or complete POS units. Its large scan window and fool-proof features offer a great solution for self-service kiosks for inexperienced customers. A sky-high motion tolerance for retail codes, combined with our top megapixel scan engine, make for fast and efficient scanning that helps avoid congestion at checkout.
Features:
High Motion Tolerance.
The FM80 Salmon can capture EAN codes moving at 3.5 meters per second. This is especially significant for the experienced user at a static point of sale (POS), for quickly processing baskets of goods and reducing check-out queuing.
Large Scan Window.
Its large scan window and small depth-of-field helps capture barcodes even when the goods are bigger, or the product is being presented very close to the scan window. An additional benefit from a large window in fast-paced retail scanning, is that the user, regardless of experience, doesnt need to be precise when lining up a code for a successful read.
Comfortable Experience.
The FM80 Salmons short & long-range illumination and anti-glare are designed for customer-facing applications, such as retail self-service and POS scanning. They prevent the user from being dazzled by sharp illumination and reflections, ensuring a comfortable user experience. Additionally, the FM80 Salmon has a good performance scanning from customer phone-screens.
Mounting and integration.

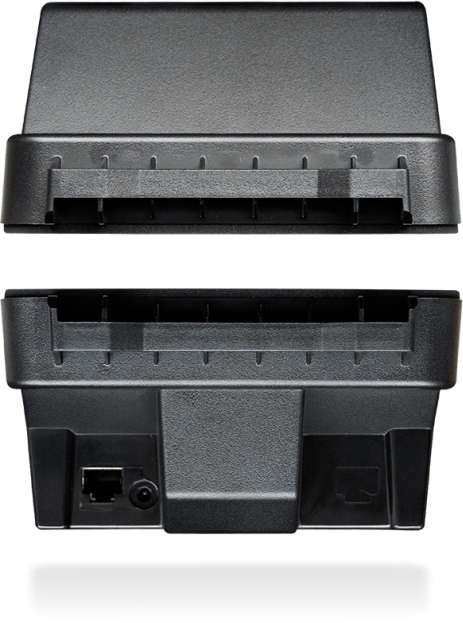

As a fixed and mountable scanner that is designed to become part of an installation that often requires the scanner to be flush, the FM80 Salmon has 6 anchor points on the front edge of its window. The IP52 rating requires additional protection from the elements for an exposed application. With this in mind, we have added a soft inlay around the edge of the window for a more comfortable fit into some enclosures.
Superior Scanning Performance.
As another example of Newland's megapixel scanning technology, the FM80 Salmon delivers stunning performance on decoding even poor-quality and damaged barcodes. Additional benefits for megapixel scanning enable reliable decoding on the higher density 2D barcodes featured on alcohol, tobacco and pharmaceutical products.
Double reading prevention.
The FM80 Salmon uses active sensors that know the difference between a code thats being presented to be read from one that is not. It knows the difference between a deliberate swipe of a code compared to a code being static for longer than the natural decode time out session. This helps prevent accidental misreads of the same barcode twice.
Specifications:
Performance
Image Sensor 1280x1080 CMOS
Illumination Red LED (614nm-624nm)
Depth of Field EAN13 (13mil) 0mm-140mm
Minimal Print Contrast >15%
Scan Angle Roll 360°
Scan Angle Pitch ±55°
Scan Angle Skew ±50°
Field of View Horizontal 42.4°
Field of View Vertical 36°
Scan Modes advanced sense mode
Motion Tolerance 3.5m/s
Data capture
1D EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, Interleaved 25, ITF 14, ITF 6, Standard 25, Matrix 25, COOP 25, Industrial 25, Plessey, MSI Plessey, Code 11, Code 93, Code 49, Code 16K, etc.
2D PDF417, QR Code, Data Matrix, Chinese Sensible Code, Micro PDF417, GM Code, Micro QR, Code One, etc.
Physical
Dimensions (mm) 149(W)x78.5(D)x166.5(H)mm
Weight 448.3g
Interfaces RS-232, USB
Notifications Beep, LED indicator
Input Voltage 5 VDC±5%
Current @ 5VDC Operating 500mA (typical)
Current @ 5VDC Standby Power Consumption operating: 2W (typical), 2.5W (max.), standby: 1.25W
Environmental
Operating Temperature -20°C to 50°C (14°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 5% to 95% (non-condensing)
Electro Static Discharge (ESD) ±15 kV (air discharge), ±8 kV (direct discharge)
Sealing IP52
Accessories
Standard USB cable used to connect the FM80 to a host device
Device Management
Software EasySet (configuration)
Certifications
Certifications FCC Part15 Class B, CE EMC Class B
